FRONT CONSOLE BOX REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

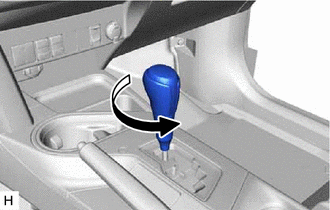

    1. B423629

      Twist the shift lever knob sub-assembly in the direction indicated by the arrow and remove it.

  2. REMOVE PARKING BRAKE HOLE COVER SUB-ASSEMBLY

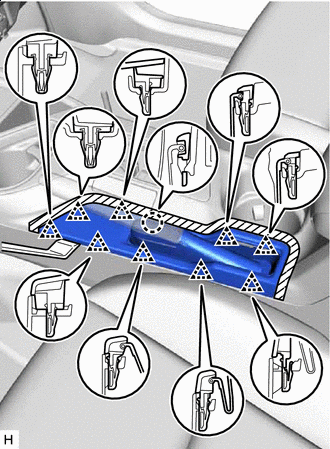

    1. B423631C01
      V100155

      Protective Tape

      Apply protective tape as shown in the illustration.

    2. Using moulding remover B, detach the 9 clips and claw and remove the parking brake hole cover sub-assembly.

  3. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    1. Apply protective tape as shown in the illustration.

    2. Using moulding remover B, detach the 12 clips and remove the upper console panel sub-assembly.

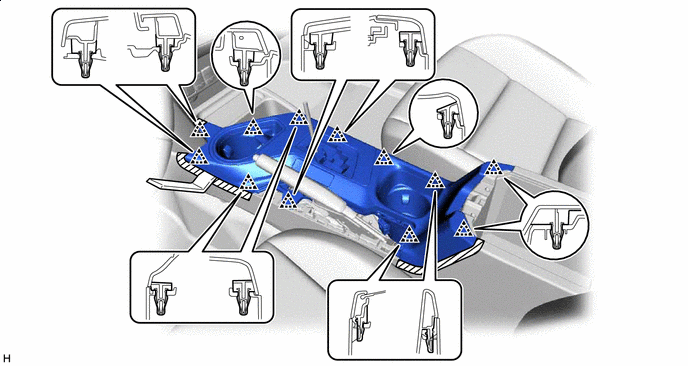

      B423633C01
      V100155

      Protective Tape

      -

      -

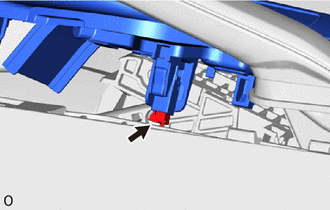

    3. B337852

      Disconnect the connector.

  4. REMOVE INNER NO. 1 INSTRUMENT PANEL BRACKET COVER LH

    B337848

    1. Detach the 2 clips and guide and remove the inner No. 1 instrument panel bracket cover LH.

  5. REMOVE INNER NO. 1 INSTRUMENT PANEL BRACKET COVER RH

    B337849

    1. Detach the 2 clips and guide and remove the inner No. 1 instrument panel bracket cover RH.

  6. REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY

    1. B337857

      Detach the 4 claws and remove the upper rear console panel sub-assembly.

  7. REMOVE CONSOLE BOX CARPET

    1. B337858

      Remove the console box carpet.

  8. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

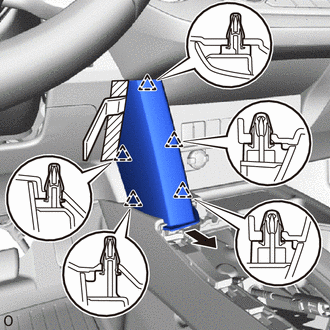

    1. B337859C01
      V100155

      Protective Tape.

      Apply protective tape as shown in the illustration.

    2. Using moulding remover B, detach the 5 clips and remove the lower center instrument panel finish panel.

  9. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

    1. B423635

      Detach the 4 clips and 2 claws.

    2. Disconnect the connector and remove the console rear end panel sub-assembly.

  10. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY

    1. Remove the 2 screws and 4 bolts.

    2. Detach the clamp and remove the rear console box sub-assembly.

      B337861C03

      *a

      Screw

      *b

      Bolt
