FRONT BRAKE FLEXIBLE HOSE REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The following procedure is for the LH side.

Note:

  • While the auxiliary battery is connected, even if the power switch is off, the brake control system activates when the brake pedal is depressed or the door courtesy switch is turned on. Therefore, even if only brake pads are to be removed and installed, be sure to perform the Disable Brake Control procedure and disconnect the cable from the negative (-) terminal of the auxiliary battery before beginning work.

  • If the RH side flexible hose and LH side flexible hose are both removed from the vehicle at the same time, place an identification mark on each hose so that it can be reinstalled to its original position.

PROCEDURE

  1. REMOVE DECK BOARD ASSEMBLY

    Click here

  2. REMOVE BATTERY SERVICE COVER

    Click here

  3. DISABLE BRAKE CONTROL

    Click here

  4. REMOVE FRONT WHEEL

    Click here

  5. DRAIN BRAKE FLUID

    Note:

    Wash off brake fluid immediately if it comes in contact with any painted surface.

  6. REMOVE FRONT FLEXIBLE HOSE

    1. C306309N01

      Disconnect the brake tube labeled A from the flexible hose using a union nut wrench while holding the flexible hose with a wrench.

      Note:

      • Do not bend or damage the brake tube.

      • Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting point.

    2. Remove the clip labeled B.

    3. Remove the bolt labeled D and flexible hose bracket from the steering knuckle.

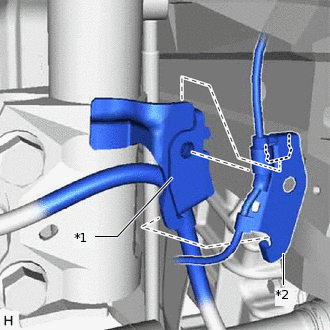

    4. C308418C01

      *1

      Front Flexible Hose Bracket

      *2

      Front Speed Sensor Bracket

      Remove the bolt labeled C, and then remove the front speed sensor bracket and front flexible hose bracket from the absorber bracket in the order.

    5. C342346

      Remove the union bolt and gasket, and then remove the front flexible hose from the disc brake cylinder assembly LH.
