POWER STEERING SYSTEM

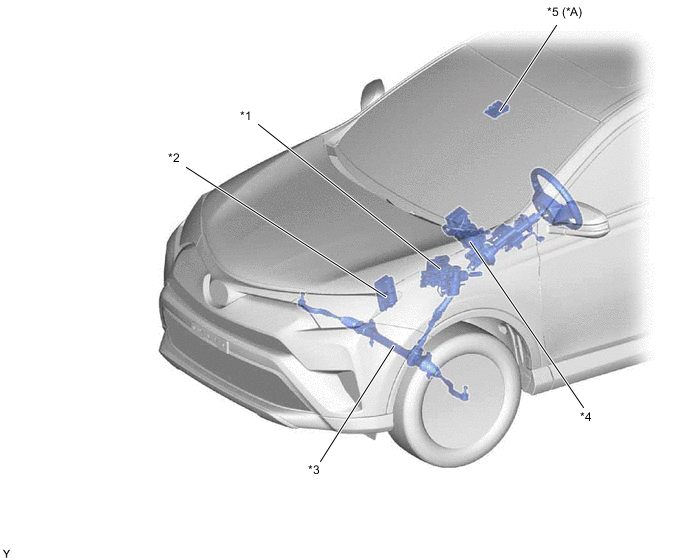

A01RXU9C01
*A Models with Lane Departure Alert (LDA) System - -
*1

Brake Booster with Master Cylinder Assembly


  • Skid Control ECU

 *2 ECM
*3 Steering Gear Assembly *4

Steering Column Assembly


  • Power Steering Motor

  • Power Steering ECU Assembly

  • Rotation Angle Sensor

  • Reduction Mechanism

  • Power Steering Torque Sensor
*5 Forward Recognition Camera - -

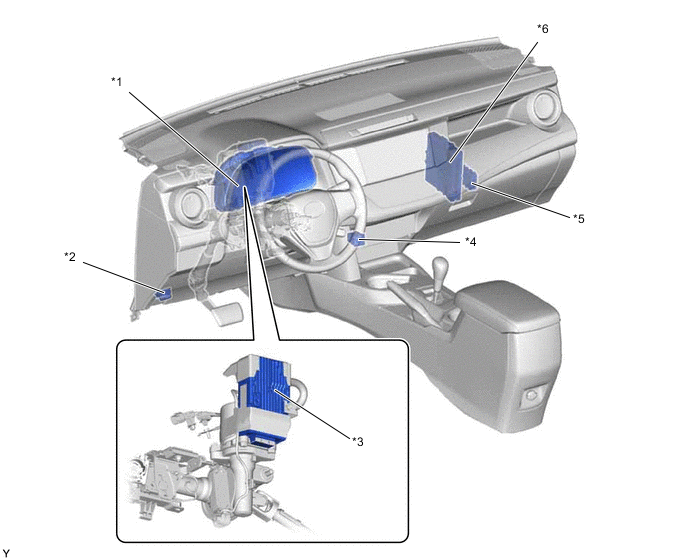

A01RXIBC02
*1 Combination Meter Assembly *2 DLC3
*3 Power Steering ECU Assembly *4 SPORT Mode Switch
*5 Central Gateway ECU *6 Hybrid Vehicle Control ECU
