METER / GAUGE SYSTEM

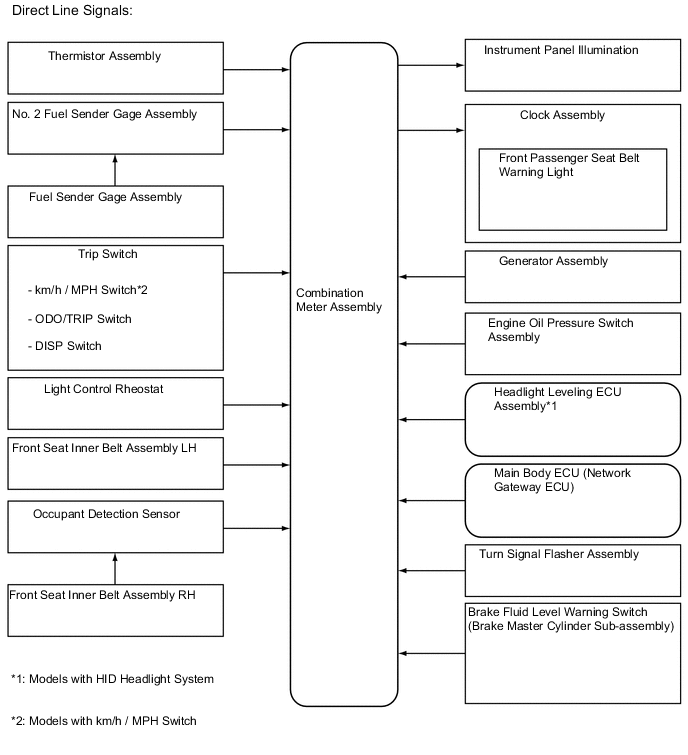

A004GMBE03

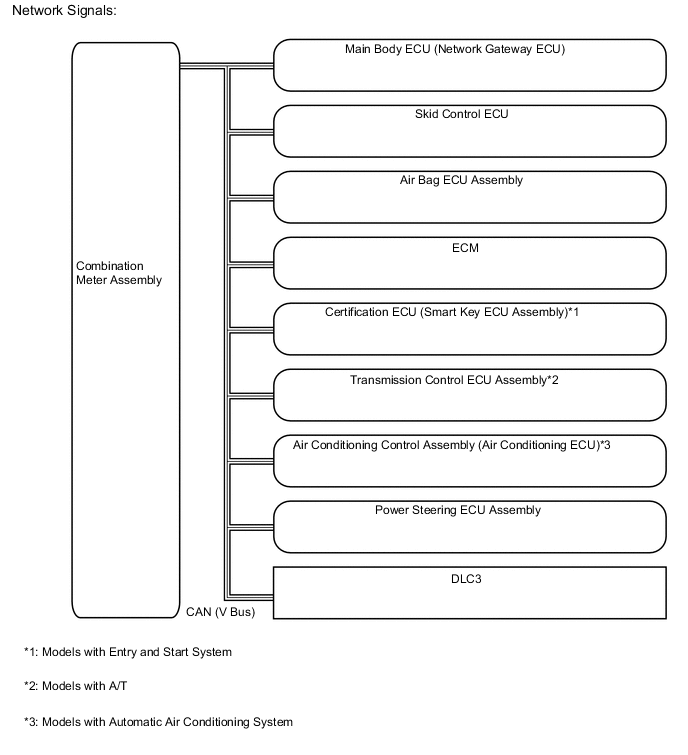

A004GKDE02
Communication Signal Sent to Combination Meter Assembly Transmitting ECU

  • Trip Count Signal

  • Time Count Signal

  • Driver's Door Courtesy Switch Signal

  • Passenger's Door Courtesy Switch Signal

  • Luggage Compartment Door Courtesy Switch Signal

  • Parking Brake Switch Signal

  • Headlight High Beam Request Signal

  • Taillight Request Signal

  • Front Fog Light Request Signal*1

  • Rear Fog Light Request Signal*2

  • M/T Reverse Switch Signal*3

  • Buzzer Tone Pattern Information Signal

  • Security Alarm Customize Signal

 Main Body ECU (Network Gateway ECU)

  • Airbag Warning Light Control Request Signal

 Air Bag ECU Assembly

  • Buzzer Request Signals

  • Immobiliser Key Identification Completion Signal

  • Emergency Operation Signal

 Certification ECU (Smart Key ECU Assembly)*4

  • Engine Revolution Data Signal

  • Fuel Consumption Signal

  • E.F.I. Engine Coolant Temperature Signal

  • Cruise Control Main Indicator Light Signal*5

  • Cruise Set Indicator Signal*5

  • M/T Shift-Up Request Status Signal*3

  • M/T Gear Position Indication Information Signal*3

  • Gear Shift Indicator Light Request Signal*3

 ECM

  • Vehicle Speed Signal

  • VSC OFF Indicator Light Signal

  • TRC OFF Indicator Light Signal

  • VSC SPORT Indicator Light Signal

  • VSC Operation Status Signal

  • TRC Operation Status Signal

  • ABS Warning Light Control Signal

  • VSC Warning Light Control Signal

  • Brake Warning Light Signal

 Skid Control ECU

  • EPS Warning Light Drive Signal

 Power Steering ECU Assembly

  • SPORT Shift Gear Position Indication Information Signal

  • Shift Position Information Signal

  • Gear Change Control Mode Signal

  • ATF Temperature Warning Light Signal

  • SPORT Indicator Light Signal

  • SNOW Indicator Light Signal

  • Buzzer Output Signal

  • Down Indication Information Signal

  • Up Indication Information Signal

 Transmission Control ECU Assembly*6
