CAN COMMUNICATION SYSTEM

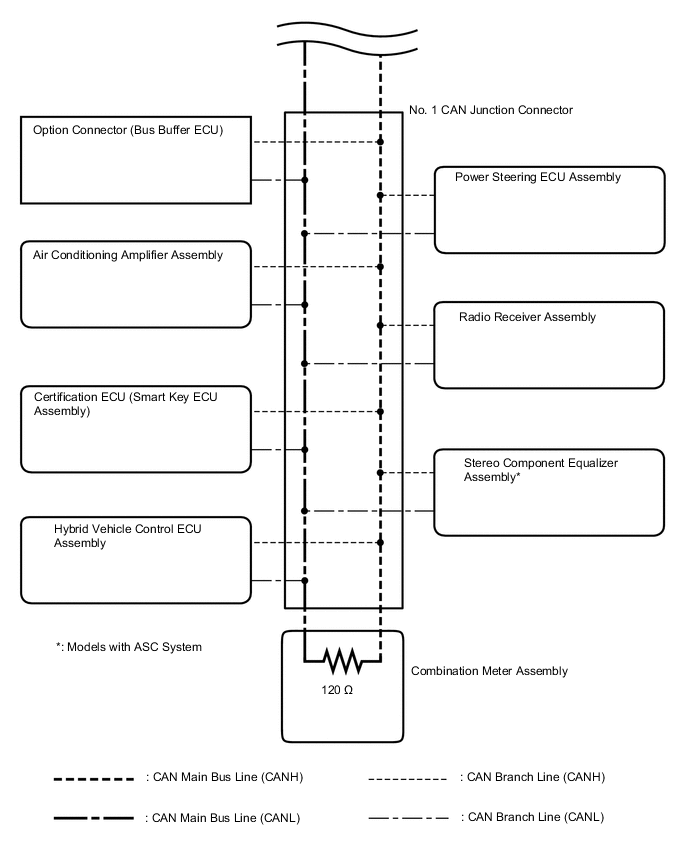

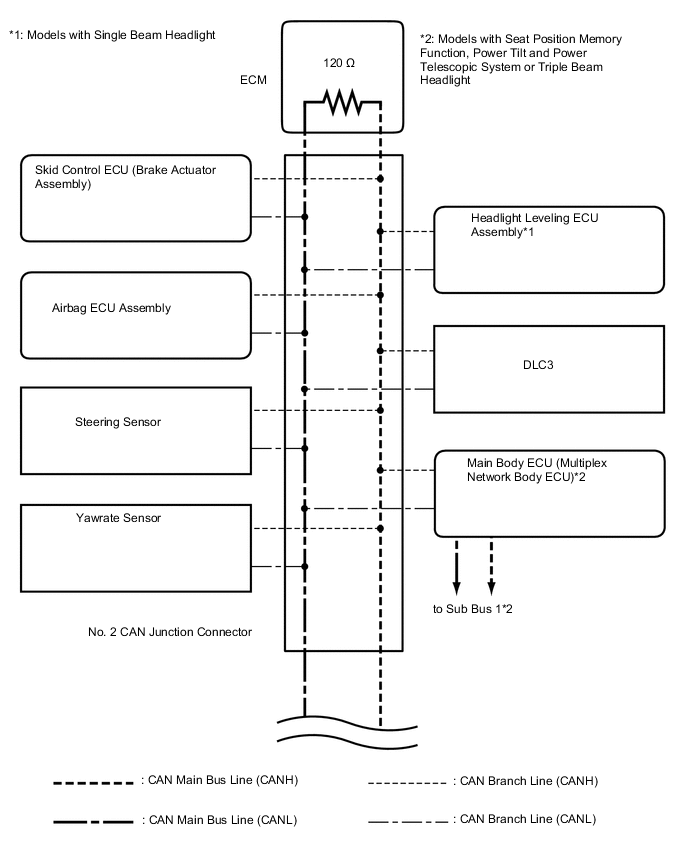

Figure 1. V Bus (LHD Models without Network Gateway ECU)

A01O6YRE03
A01O7DQE01

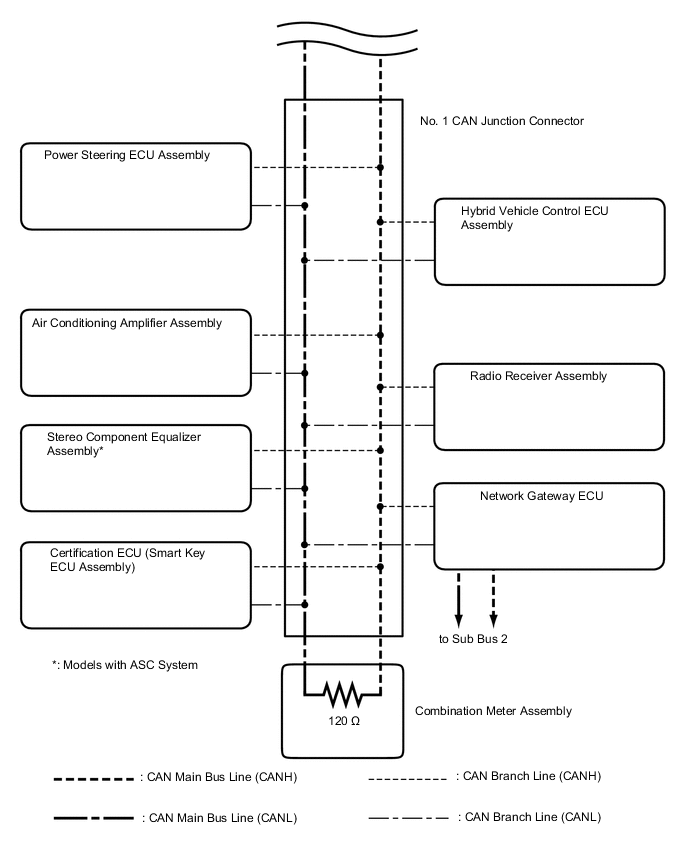

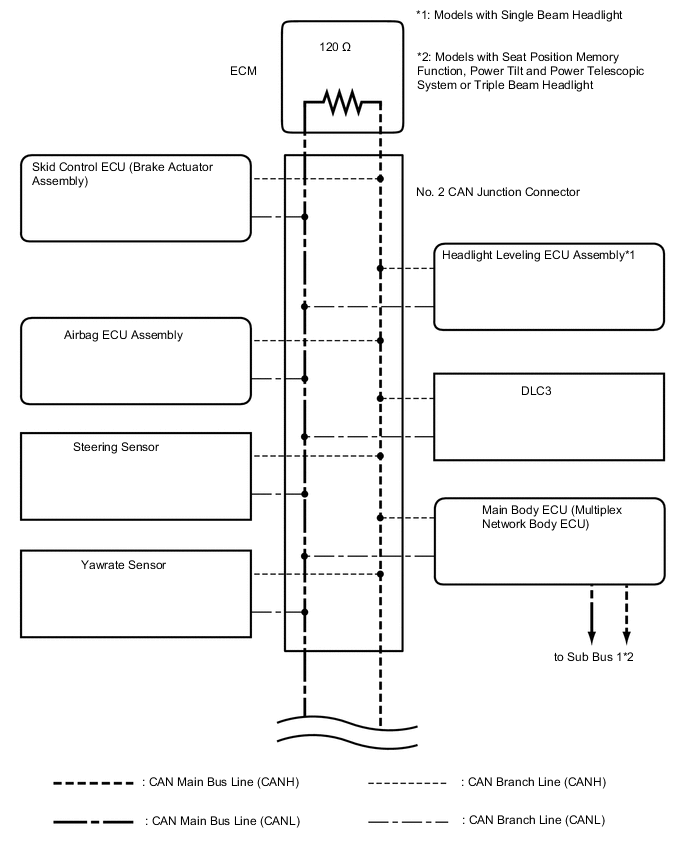

Figure 2. V Bus (LHD Models with Network Gateway ECU)

A01O7DJE01
A01O7A0E01

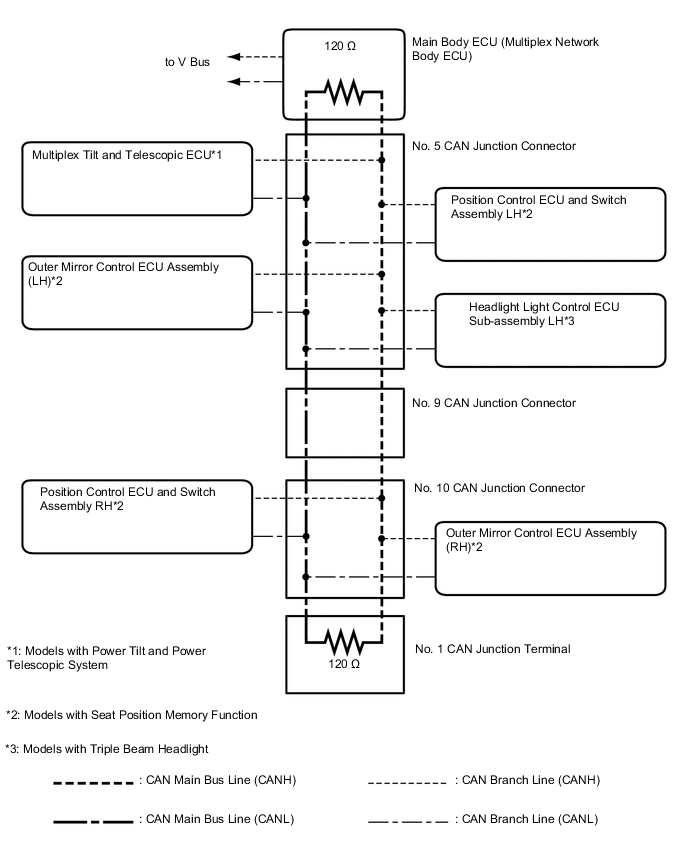

Figure 3. Sub Bus 1 (LHD Models with Seat Position Memory Function, Power Tilt and Power Telescopic System or Triple Beam Headlight)

A01O7CTE03

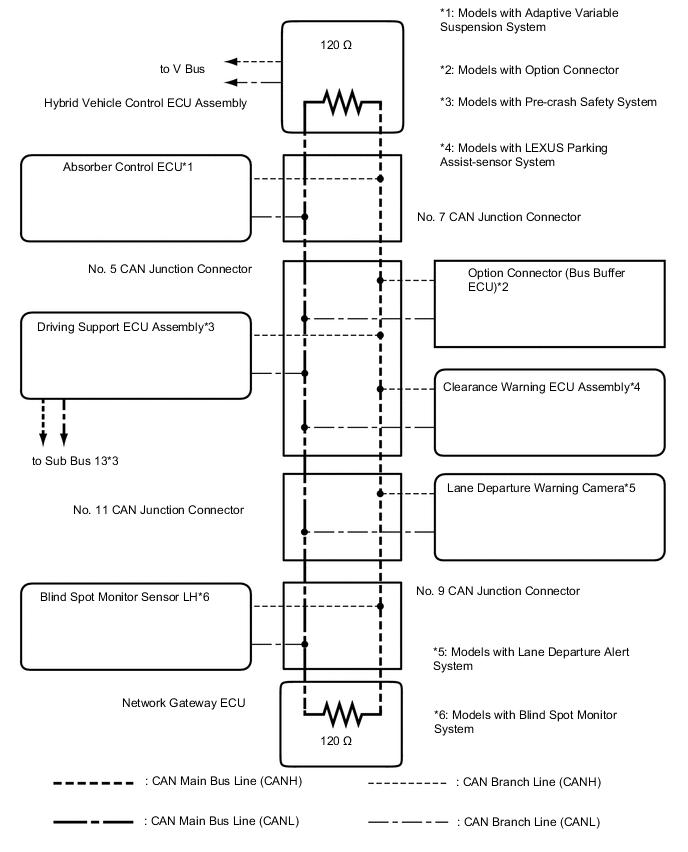

Figure 4. Sub Bus 2 (LHD Models with Network Gateway ECU)

A01O74DE01

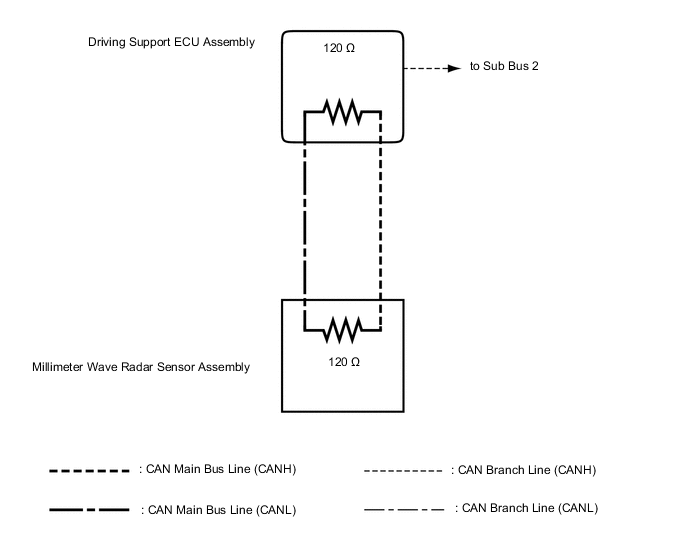

Figure 5. Sub Bus 13 (LHD Models with Pre-crash Safety System)

A01O6X8E01

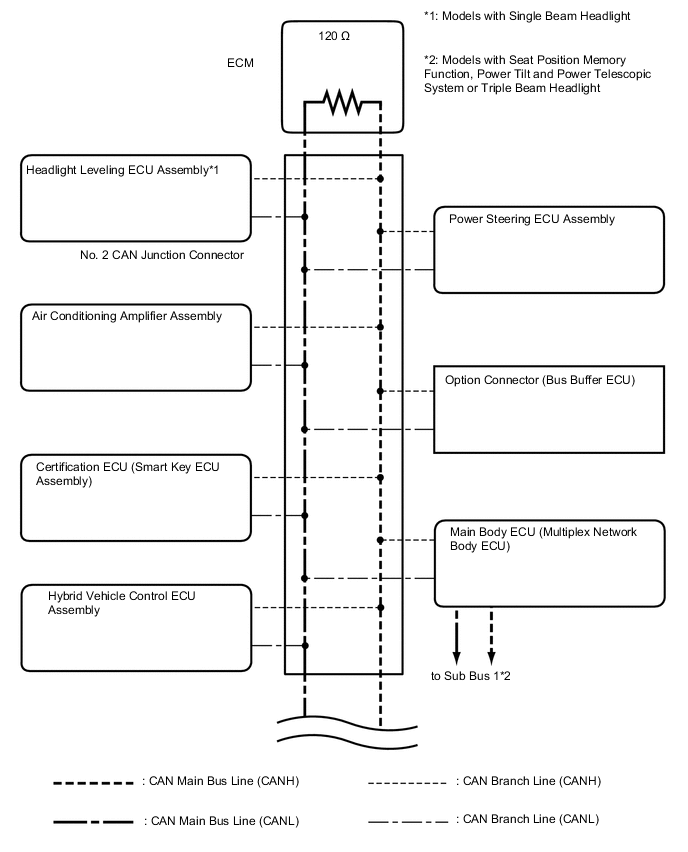

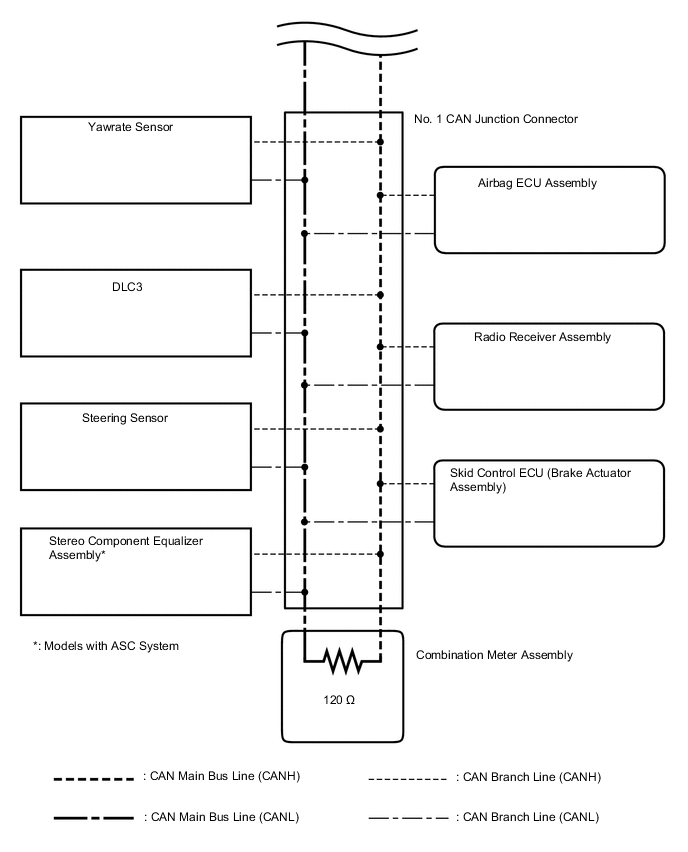

Figure 6. V Bus (RHD Models without Network Gateway ECU)

A01O6WPE01
A01O7CRE01

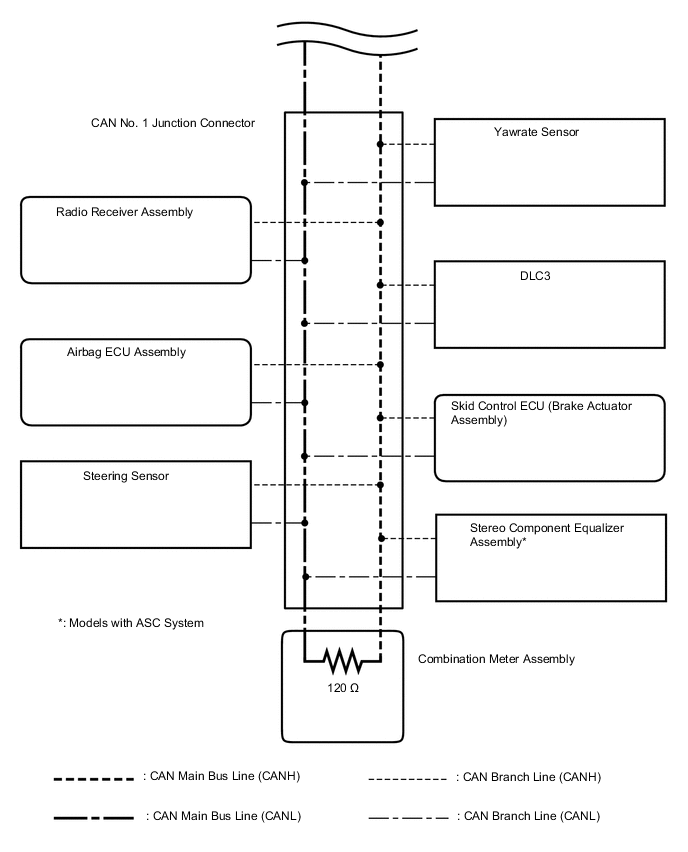

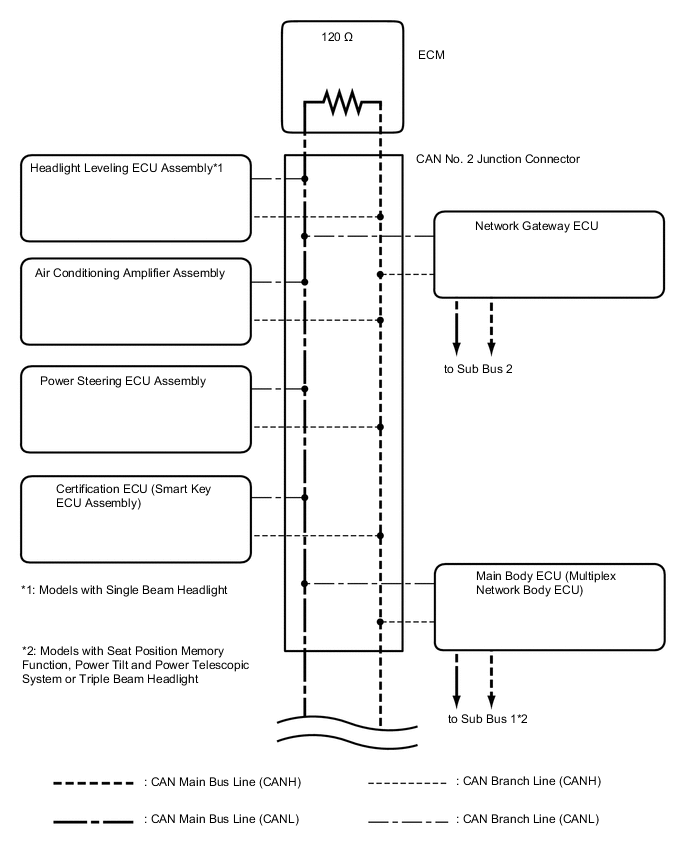

Figure 7. V Bus (RHD Models with Network Gateway ECU)

A01O7BGE01
A01O7HIE01

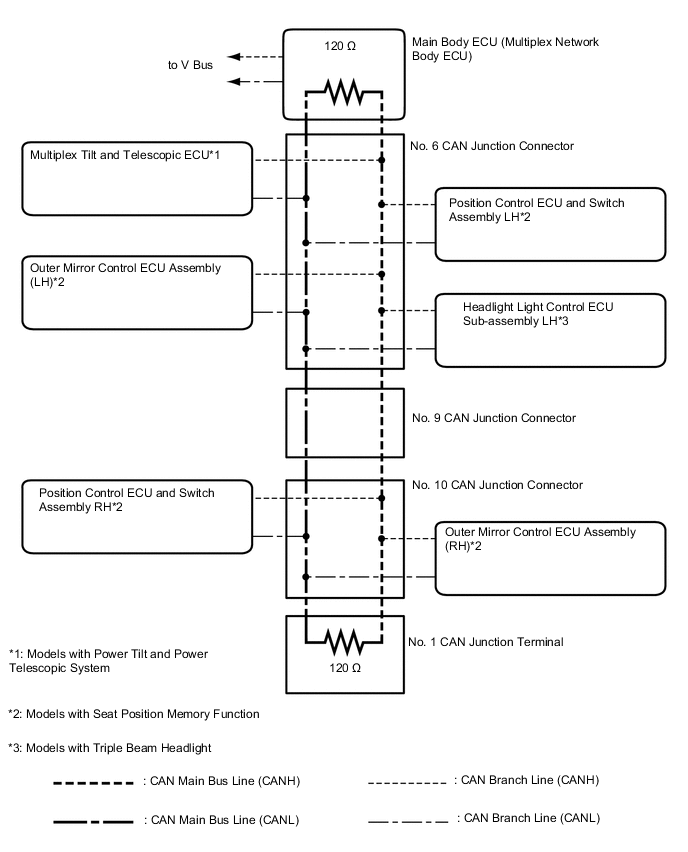

Figure 8. Sub Bus 1 (RHD Models with Seat Position Memory Function, Power Tilt and Power Telescopic System or Triple Beam Headlight)

A01O7CTE02

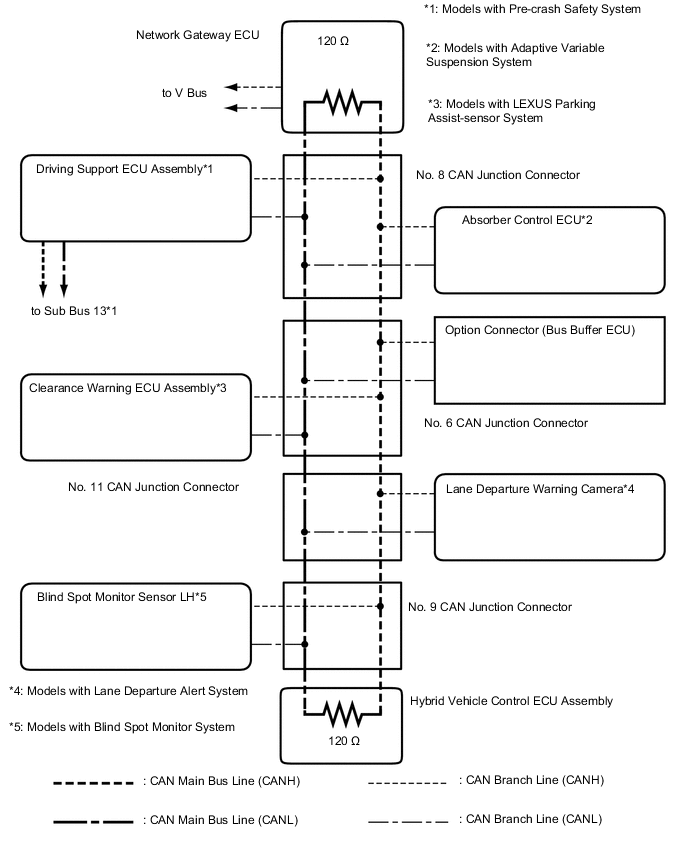

Figure 9. Sub Bus 2 (RHD Models with Network Gateway ECU)

A01O7DYE01

Figure 10. Sub Bus 13 (RHD Models with Pre-crash Safety System)

A01O6X8E01
