HAZARD WARNING SWITCH REMOVAL

PROCEDURE

1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

   Click here

2. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

   1.

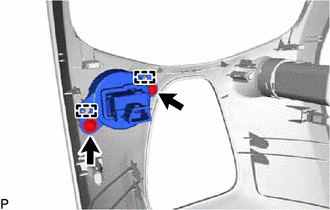

      Remove the 2 screws.

   2. Disengage the 2 guides to remove the hazard warning signal switch assembly with No. 1 switch hole base.

   3.

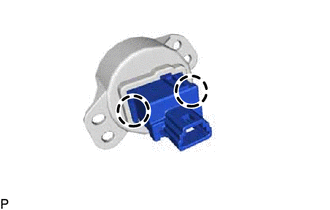

      Disengage the 2 claws to remove the hazard warning signal switch assembly from the No. 1 switch hole base.
