REAR SEAT ASSEMBLY(for Wagon) DISASSEMBLY

PROCEDURE


  1. REMOVE SEAT CUSHION COVER WITH PAD

    A004OED

    1. Detach the claws and clamps.

    2. Remove the cushion cover with pad from the cushion frame as shown in the illustration.

  2. REMOVE BENCH TYPE REAR SEAT CUSHION COVER

    A004MQS

    1. Detach the clamps and remove the seat cushion cover from the seat cushion pad.

  3. REMOVE CHILD RESTRAINT SEAT GUIDE CUP


    1. A004P2M

      Detach the 8 clamps and remove the 4 guide cups from the seat cushion frame.

  4. REMOVE NO. 1 SEAT ARMREST CAP

    A004NQN

    1. Using a screwdriver, detach the 3 claws and remove the armrest cap.

      Tech Tips

      Tape the screwdriver tip before use.

  5. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY

    A004NW1E02
    Text in Illustration
    *1 Pin

    1. Remove the bolt and washer.

    2. Separate the pin and center seat armrest assembly from the seatback to remove the armrest.

    3. A004S7O

      Remove the bush.

  6. REMOVE NO. 1 REAR CENTER SEAT ARMREST BOX (w/ Center Armrest Box)

    A004Q8Z

    1. Detach the 3 claws and remove the armrest box.

  7. REMOVE CENTER ARMREST HINGE COVER RH (w/o Center Armrest Box)

    A004U6L

    1. Remove the hinge cover.

  8. REMOVE REAR CENTER SEAT ARMREST BOX (w/ Center Armrest Box)

    A004TBZ

    1. Remove the armrest box.

  9. REMOVE REAR SEAT ARMREST HANDLE (w/ Center Armrest Box)

    A004N8W

    1. Detach the 4 claws and remove the armrest handle.

  10. REMOVE REAR CENTER SEAT ARMREST DOOR SUB-ASSEMBLY (w/ Center Armrest Box)

    A004MSE

    1. Remove the armrest door.

  11. REMOVE REAR SEATBACK COVER

    A004RKY

    1. Using a screwdriver, detach the 4 claws and remove the seatback cover.

      Tech Tips


      • Tape the screwdriver tip before use.

      • Use the same procedure to remove the cover on the other side.

  12. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY LH

    A004PEOE01
    Text in Illustration
    *1 Clamp

    1. Detach the clamps and remove the carpet.

  13. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY RH

    A004RWAE02
    Text in Illustration
    *1 Clamp

    1. Detach the clamps and remove the carpet.

  14. REMOVE REAR SEAT HEADREST ASSEMBLY

  15. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY

  16. REMOVE REAR SEAT LOCK CONTROL LEVER LH

    A004ODE

    1. Using a screwdriver, detach the 4 claws and remove the control lever.

      Tech Tips

      Tape the screwdriver tip before use.

  17. REMOVE REAR SEAT LOCK CONTROL LEVER RH

    Tech Tips

    Use the same procedure described for the LH side.

  18. REMOVE SEAT BELT ANCHOR COVER CAP

    A004QF5

    1. Using a screwdriver, detach the 2 claws and remove the anchor cover cap.

      Tech Tips

      Tape the screwdriver tip before use.

  19. REMOVE REAR SEAT SHOULDER BELT HOLE COVER

    A004NGK

    1. Using a screwdriver, detach the 4 claws and remove the hole cover.

      Tech Tips

      Tape the screwdriver tip before use.

  20. REMOVE REAR SEATBACK LOCK COVER LH

    A004STU

    1. Remove the 2 screws and lock cover.

  21. REMOVE REAR SEATBACK LOCK COVER RH

    Tech Tips

    Use the same procedure described for the LH side.

  22. REMOVE REAR SEAT HEADREST SUPPORT

    A004TSS

    1. for LH Side:

      Detach the 4 claws and remove the 2 headrest supports.

    2. A004OXC

      for RH Side:

      Detach the 8 claws and remove the 4 headrest supports.

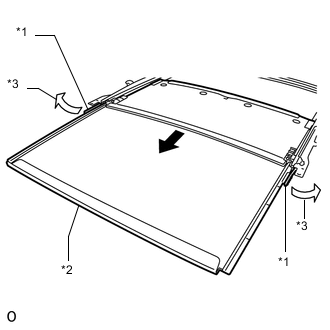

  23. REMOVE SEATBACK COVER WITH PAD


    1. Remove the 2 seatback covers with pads from the 2 seatback frames.

  24. REMOVE SEPARATE TYPE REAR SEATBACK COVER LH

    A004RZD

    1. Detach the 9 clamps and remove the seatback cover.

  25. REMOVE SEPARATE TYPE REAR SEATBACK COVER RH

    A004Q0Q

    1. Detach the 9 clamps and remove the seatback cover from the seatback pad.

  26. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY

    A004TWK

    1. Remove the nut and outer belt.

  27. REMOVE REAR SEATBACK LOCK SUB-ASSEMBLY LH

    A004TN9

    1. Remove the 2 bolts and seatback lock.

  28. REMOVE REAR SEATBACK LOCK SUB-ASSEMBLY RH

    A004RSJ

    1. Remove the 2 bolts and seatback lock.

  29. REMOVE REAR SEAT SHOULDER BELT GUIDE LH

    A004RJE

    1. Remove the 2 screws and shoulder belt guide.

  30. REMOVE REAR SEAT SHOULDER BELT GUIDE RH

    Tech Tips

    Use the same procedure described for the LH side.

  31. REMOVE REAR SIDE SEATBACK COVER SUB-ASSEMBLY LH

    A004RLW

    1. Detach the 3 clamps and 3 claws, and remove the seatback cover.

  32. REMOVE REAR SIDE SEATBACK COVER SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  33. REMOVE REAR SEATBACK SIDE PAD LH

    A004OMR

    1. Remove the side pad.

  34. REMOVE REAR SEATBACK SIDE PAD RH

    Tech Tips

    Use the same procedure described for the LH side.
