MAYDAY BATTERY INSTALLATION

PROCEDURE

  1. INSTALL MOBILEPHONE BATTERY

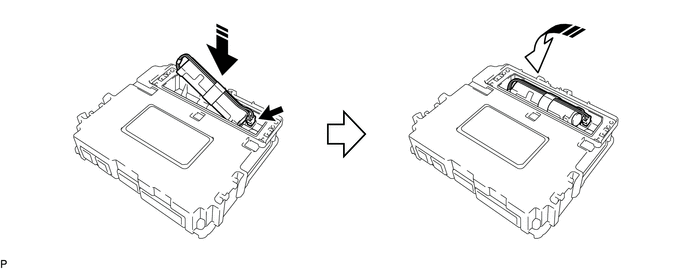

    1. Connect the connector and install the mobilephone battery as shown in the illustration.

      E339905C01
      V113147

      Install in this Direction (1)

      		 V113148

      Install in this Direction (2)
      Note:

      Check that the connector is securely connected.

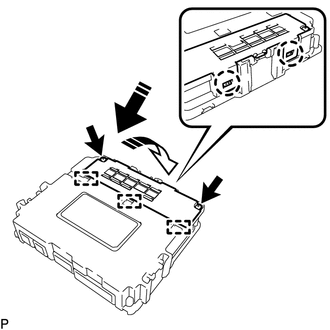

    2. E339903C01
      V113147

      Install in this Direction (1)
      V113148

      Install in this Direction (2)

      Insert the 3 guides and attach the 2 claws as shown in the illustration.

    3. Install the battery cover with the 2 screws.

      Note:

      Check that the battery cover does not lift up.

  2. INSTALL TELEMATICS TRANSCEIVER
