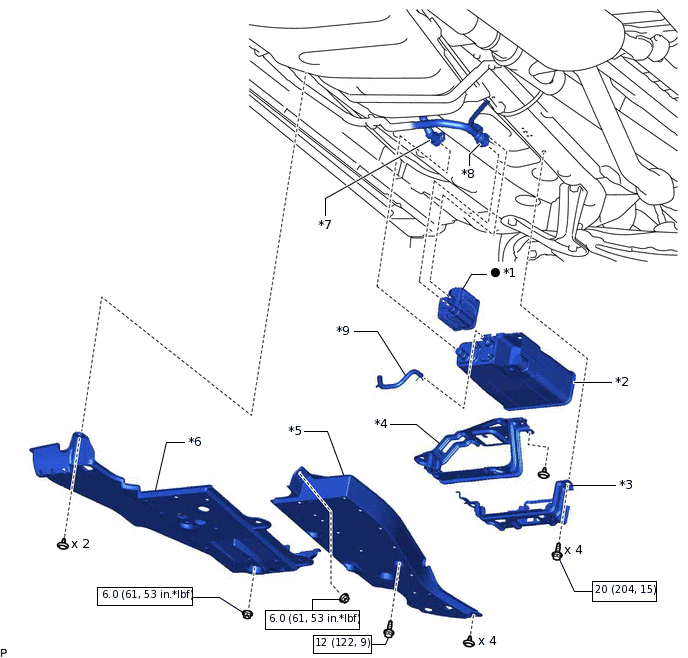

CANISTER(w/ Canister Pump Module) COMPONENTS

*1	CANISTER PUMP MODULE	*2	CHARCOAL CANISTER ASSEMBLY
*3	CHARCOAL CANISTER BASE BRACKET	*4	CHARCOAL CANISTER PROTECTOR
*5	FRONT FLOOR COVER	*6	NO. 1 FUEL TANK PROTECTOR
*7	VENT LINE HOSE	*8	AIR INLET LINE HOSE
*9	PURGE LINE HOSE	-	-
	Specified torque: Nm (kgfcm, ft.*lbf)	●	Non-reusable part

*1

CANISTER PUMP MODULE

*2

CHARCOAL CANISTER ASSEMBLY

*3

CHARCOAL CANISTER BASE BRACKET

*4

CHARCOAL CANISTER PROTECTOR

*5

FRONT FLOOR COVER

*6

NO. 1 FUEL TANK PROTECTOR

*7

VENT LINE HOSE

*8

AIR INLET LINE HOSE

*9

PURGE LINE HOSE

-

Specified torque: N*m (kgf*cm, ft.*lbf)

●

Non-reusable part
