WIRELESS DOOR LOCK CONTROL SYSTEM TERMINALS OF ECU

  1. CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY AND MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

    C278789N02
    C278790C04

    *A

    Main Body ECU (Multiplex Network Body ECU) with 1 connector

    *B

    Main Body ECU (Multiplex Network Body ECU) with 3 connectors

    *1

    Main Body ECU (Multiplex Network Body ECU)

    -

    -

    1. Remove the main body ECU (Multiplex network body ECU) from the instrument panel junction block assembly.

      for LHD:

      Click here

      for RHD:

      Click here

    2. Measure the voltage and resistance according to the value(s) in the table below.

      Tip:

      Measure the values on the wire harness side with the connectors disconnected.

      Tester Connection

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      A-11 (GND1) - Body ground

      -

      Ground

      Always

      Below 1 Ω

      A-30 (BECU) - Body ground

      -

      Auxiliary battery power supply

      Power switch off

      11 to 14 V

      A-29 (ACC) - Body ground

      -

      ACC power supply

      Power switch on (ACC)

      11 to 14 V

      A-29 (ACC) - Body ground

      -

      ACC power supply

      Power switch off

      Below 1 V

      A-32 (IG) - Body ground

      -

      IG power supply

      Power switch on (IG)

      11 to 14 V

      A-32 (IG) - Body ground

      -

      IG power supply

      Power switch off

      Below 1 V

    3. Install the main body ECU (multiplex network body ECU).

      for LHD:

      Click hereClick here

      for RHD:

      Click hereClick here

    4. Measure the voltage and check for pulses according to the value(s) in the table below.

      Tester Connection

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      3E-1 (ACT-) - Body ground

      BR - Body ground

      Door lock motor unlock drive output (all door)

      Door control switch (power window regulator master switch assembly) or driver door key cylinder off

      Below 1 V

      3E-1 (ACT-) - Body ground

      BR - Body ground

      Door lock motor unlock drive output (all door)

      Door control switch (power window regulator master switch assembly) or driver door key cylinder unlocked

      11 to 14 V

      3D-4 (ACT-) - Body ground

      B - Body ground

      Door lock motor unlock drive output (all door)

      Door control switch (power window regulator master switch assembly) or driver door key cylinder off

      Below 1 V

      3D-4 (ACT-) - Body ground

      B - Body ground

      Door lock motor unlock drive output (all door)

      Door control switch (power window regulator master switch assembly) or driver door key cylinder unlocked

      11 to 14 V

      3D-3 (ACT-) - Body ground

      B - Body ground

      Door lock motor unlock drive output (all door)

      Door control switch (power window regulator master switch assembly) or driver door key cylinder off

      Below 1 V

      3D-3 (ACT-) - Body ground

      B - Body ground

      Door lock motor unlock drive output (all door)

      Door control switch (power window regulator master switch assembly) or driver door key cylinder unlocked

      11 to 14 V

      3D-5 (ACT-) - Body ground*4

      B - Body ground

      Door lock motor unlock drive output (all door)

      Door control switch (power window regulator master switch assembly) or driver door key cylinder off

      Below 1 V

      3D-5 (ACT-) - Body ground*4

      B - Body ground

      Door lock motor unlock drive output (all door)

      Door control switch (power window regulator master switch assembly) or driver door key cylinder unlocked

      11 to 14 V

      3D-10 (ACTD) - Body ground*3

      B - Body ground

      Door lock motor unlock drive output (all door)

      Door control switch (power window regulator master switch assembly) or driver door key cylinder off

      Below 1 V

      3D-10 (ACTD) - Body ground*3

      B - Body ground

      Door lock motor unlock drive output (all door)

      Door control switch (power window regulator master switch assembly) or driver door key cylinder unlocked

      11 to 14 V

      3D-13 (ACT+) - Body ground

      R - Body ground

      Door lock motor lock drive output (all doors)

      Door control switch (power window regulator master switch assembly) or driver door key cylinder locked

      11 to 14 V

      3D-13 (ACT+) - Body ground

      R - Body ground

      Door lock motor lock drive output (all doors)

      Door control switch (power window regulator master switch assembly) or driver door key cylinder off

      Below 1 V

      3D-11 (ACT+) - Body ground

      R - Body ground

      Door lock motor lock drive output (all doors)

      Door control switch (power window regulator master switch assembly) or driver door key cylinder locked

      11 to 14 V

      3D-11 (ACT+) - Body ground

      R - Body ground

      Door lock motor lock drive output (all doors)

      Door control switch (power window regulator master switch assembly) or driver door key cylinder off

      Below 1 V

      3D-12 (ACT+) - Body ground

      R - Body ground

      Door lock motor lock drive output (all doors)

      Door control switch (power window regulator master switch assembly) or driver door key cylinder locked

      11 to 14 V

      3D-12 (ACT+) - Body ground

      R - Body ground

      Door lock motor lock drive output (all doors)

      Door control switch (power window regulator master switch assembly) or driver door key cylinder off

      Below 1 V

      3E-7 (ACT+) - Body ground

      R - Body ground

      Door lock motor lock drive output (all doors)

      Door control switch (power window regulator master switch assembly) or driver door key cylinder locked

      Below 1 V

      3E-7 (ACT+) - Body ground

      R - Body ground

      Door lock motor lock drive output (all doors)

      Door control switch (power window regulator master switch assembly) or driver door key cylinder locked

      11 to 14 V

      3E-40 (FLCY) - Body ground

      W - Body ground

      Front door LH courtesy light switch input

      Front door LH open

      Below 1 V

      3E-40 (FLCY) - Body ground

      W - Body ground

      Front door LH courtesy light switch input

      Front door LH closed

      Pulse generation

      G78-19 (FRCY) - Body ground

      L - Body ground*1

      GR - Body ground*2

      Front door RH courtesy light switch input

      Front door RH open

      Below 1 V

      G78-19 (FRCY) - Body ground

      L - Body ground*1

      GR - Body ground*2

      Front door RH courtesy light switch input

      Front door RH closed

      Pulse generation

      G78-1 (LCTY) - Body ground*3

      W - Body ground

      Rear door LH courtesy light switch input

      Rear door LH open

      Below 1 V

      G78-1 (LCTY) - Body ground*3

      W - Body ground

      Rear door LH courtesy light switch input

      Rear door LH closed

      Pulse generation

      G78-24 (LCTY) - Body ground*4

      W - Body ground*1

      SB - Body ground*2

      Rear door LH courtesy light switch input

      Rear door LH open

      Below 1 V

      G78-24 (LCTY) - Body ground*4

      W - Body ground*1

      SB - Body ground*2

      Rear door LH courtesy light switch input

      Rear door LH closed

      Pulse generation

      G78-6 (RCTY) - Body ground

      Y - Body ground

      Rear door RH courtesy light switch input

      Rear door RH open

      Below 1 V

      G78-6 (RCTY) - Body ground

      Y - Body ground

      Rear door RH courtesy light switch input

      Rear door RH closed

      Pulse generation

      G78-7 (LSFL) - Body ground

      B - Body ground

      Front door LH unlock detection switch input

      Front door LH unlocked

      Below 1 V

      G78-7 (LSFL) - Body ground

      B - Body ground

      Front door LH unlock detection switch input

      Front door LH locked

      Pulse generation

      G78-18 (LSFR) - Body ground

      P - Body ground

      Front door RH unlock detection switch input

      Front door RH unlocked

      Below 1 V

      G78-18 (LSFR) - Body ground

      P - Body ground

      Front door RH unlock detection switch input

      Front door RH locked

      Pulse generation

      3E-32 (LSR) - Body ground

      Y - Body ground

      Rear door RH unlock detection switch input

      Rear door RH or LH unlocked

      Below 1 V

      3E-32 (LSR) - Body ground

      Y - Body ground

      Rear door RH unlock detection switch input

      Rear door RH and LH locked

      Pulse generation

      3C-41 (LSR) - Body ground

      Y - Body ground

      Rear door LH unlock detection switch input

      Rear door LH or RH unlocked

      Below 1 V

      3C-41 (LSR) - Body ground

      Y - Body ground

      Rear door LH unlock detection switch input

      Rear door LH and RH locked

      Pulse generation

      3B-55 (BZR) - Body ground

      L - Body ground

      Wireless door lock buzzer signal

      Wireless door lock buzzer off

      Below 1 V

      3B-55 (BZR) - Body ground

      L - Body ground

      Wireless door lock buzzer signal

      Wireless door lock buzzer on

      Pulse generation

      *1: for LHD

      *2: for RHD

      *3: w/ Panic Switch

      *4: w/o Panic Switch

  2. CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

    1. Disconnect the G82 certification ECU (smart key ECU assembly) connector.

      B264892N74

    2. Measure the resistance and voltage according to the value(s) in the table below.

      Tip:

      Measure the values on the wire harness side with the connectors disconnected.

      Tester Connection

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G82-11 (E) - Body ground

      BR - Body ground

      Ground

      Always

      Below 1 Ω

      G82-2 (+B) - Body ground

      W - Body ground

      Auxiliary battery power supply

      Power switch off

      11 to 14 V

      G82-10 (CUTB) - Body ground

      P - Body ground

      Dark current cut fuse pin input signal

      Power switch off

      11 to 14 V

    3. Reconnect the G82 certification ECU (smart key ECU assembly) connector.

    4. Measure the voltage according to the value(s) in the table below.

      Tester Connection

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G84-5 (IG) - G82-11 (E)

      LG - BR

      Power switch power supply

      Power switch on (IG)

      11 to 14 V

      Power switch off

      Below 1 V

      G83-6 (CSEL) - G82-11 (E)

      BR - BR

      Communication channel switching circuit

      Power switch off and all door closed

      Below 1 V → 4.5 to 6.0 V → Below 1 V

      G83-17 (RDAM) - G82-11 (E)

      Y - BR

      RF Signal input circuit

      Power switch off, all doors closed and electrical key transmitter sub-assembly switch not pressed → electrical key transmitter sub-assembly switch pressed

      11 to 14 V pulse generation at regular intervals → pulse generation

      G83-5 (RCO) - G82-11 (E)

      V - BR

      Wireless tuner power supply output circuit

      Power switch off, all doors closed and electrical key transmitter sub-assembly switch not pressed → electrical key transmitter sub-assembly switch pressed

      Below 1 V → 4.5 to 5.5 V

  3. CHECK DOOR CONTROL RECEIVER (for 12 Pin Type)

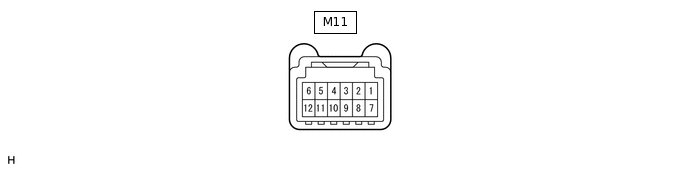

    1. Disconnect the M11 door control receiver connector.

      B153407N03

    2. Measure the resistance according to the value(s) in the table below.

      Tip:

      Measure the values on the wire harness side with the connectors disconnected.

      Tester Connection

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      M11-12 (E) - Body ground

      W-B - Body ground

      Ground

      Always

      Below 1 Ω

    3. Reconnect the M11 door control receiver connector.

    4. Measure the voltage according to the value(s) in the table below.

      Tester Connection

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      M11-6 (CSEL) - M11-12 (E)

      R - W-B

      Communication channel switching circuit

      Power switch off and all door closed

      Below 1 V → 4.5 to 6.0 V → Below 1 V

      M11-9 (DATA) - M11-12 (E)

      LG - W-B

      Data output

      Power switch off, all doors closed and electrical key transmitter sub-assembly switch not pressed → electrical key transmitter sub-assembly switch pressed

      Below 1 V → 10 to 16 V → Below 1 V

      M11-10 (+5) - M11-12 (E)

      SB - W-B

      Auxiliary battery (power supply)

      Power switch off, all doors closed and electrical key transmitter sub-assembly switch not pressed → electrical key transmitter sub-assembly switch pressed

      Below 1 V → 4.5 to 5.5 V

  4. CHECK DOOR CONTROL RECEIVER (except 12 Pin Type)

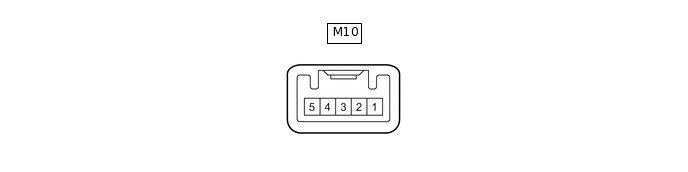

    1. Disconnect the M10 door control receiver connector.

      B280754N14

    2. Measure the resistance according to the value(s) in the table below.

      Tip:

      Measure the values on the wire harness side with the connectors disconnected.

      Tester Connection

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      M10-1 (GND) - Body ground

      W-B - Body ground

      Ground

      Always

      Below 1 Ω

    3. Reconnect the M10 door control receiver connector.

    4. Measure the voltage according to the value(s) in the table below.

      Tester Connection

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      M10-2 (CSEL) - M10-1 (GND)

      L - W-B

      Communication channel switching circuit

      Power switch off and all door closed

      Below 1 V → 4.5 to 6.0 V → Below 1 V

      M10-5 (DATA) - M10-1 (GND)

      P - W-B*1

      Y - W-B*2

      Data output

      Power switch off, all doors closed and electrical key transmitter sub-assembly switch not pressed → electrical key transmitter sub-assembly switch pressed

      Below 1 V → 10 to 16 V → Below 1 V

      M10-4 (+5) - M10-1 (GND)

      V - W-B

      Auxiliary battery (power supply)

      Power switch off, all doors closed and electrical key transmitter sub-assembly switch not pressed → electrical key transmitter sub-assembly switch pressed

      Below 1 V → 4.5 to 5.5 V

      *1: w/o Tire Pressure Warning System

      *1: w/ Tire Pressure Warning System
