FRONT DISC BRAKE PAD(for 16 inch Front Disc Brake) REPLACEMENT

CAUTION / NOTICE / HINT

Tip:

Note:

When the brake pedal is first depressed after replacing the brake pads or pushing back the disc brake piston, DTC C1214 may be output. As there is no malfunction, clear the DTCs.
While the auxiliary battery is connected, even if the power switch is off, the brake control system activates when the brake pedal is depressed or the door courtesy switch is turned on. Therefore, even if only brake pads are to be removed and installed, be sure to perform the Disable Brake Control procedure and disconnect the cable from the negative (-) terminal of the auxiliary battery before beginning work.
After replacing the disc brake pads, the clearance between the disc brake pads and front discs becomes larger and the brake pedal feel becomes softer. Therefore, after replacing the disc brake pads, depress the brake pedal several times and check the clearance and brake pedal feel.

PROCEDURE

REMOVE DECK BOARD ASSEMBLY

Click here
REMOVE BATTERY SERVICE COVER

Click here
DISABLE BRAKE CONTROL

Click here
REMOVE FRONT WHEEL

Click here
DRAIN BRAKE FLUID

Note:
Wash off brake fluid immediately if it comes in contact with any painted surface.

REMOVE FRONT DISC BRAKE PAD

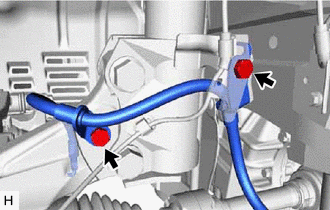

Remove the 2 bolts, steering knuckle and absorber bracket from the flexible hose bracket.

*a	Hold
*b	Turn

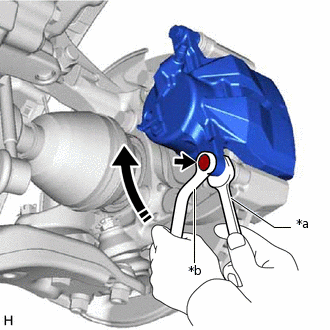

Hold the front disc brake cylinder slide pin and remove the bolt.

Lift up the disc brake cylinder assembly LH.

CAUTION:
When removing the front disc brake pad, make sure that your hands, etc., do not get caught in the disc brake cylinder assembly LH.
Note:
- Do not bend or damage the front flexible hose.
- Remove the disc brake cylinder assembly while holding both of the brake pads because the anti-squeal springs may fall off the brake pads.

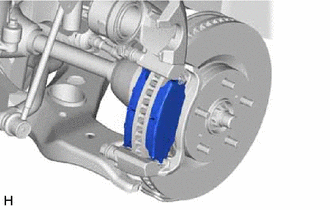

Remove the 2 front disc brake pads from the front disc brake cylinder mounting LH.

REMOVE FRONT ANTI-SQUEAL SHIM KIT
1. Remove the 2 No. 1 anti-squeal shims and 2 No. 2 anti-squeal shims from the front disc brake pads.
REMOVE NO. 1 PAD WEAR INDICATOR PLATE

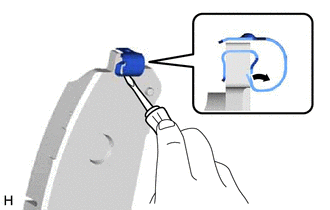

1. Using a screwdriver, remove the 2 No. 1 pad wear indicator plates from the 2 front disc brake pads as shown in the illustration.
INSTALL NO. 1 PAD WEAR INDICATOR PLATE
1. Install the 2 No. 1 pad wear indicator plates to the 2 front disc brake pads.

  Note:
  Install the No. 1 pad wear indicator plate in the correct positions and directions.

INSTALL FRONT ANTI-SQUEAL SHIM KIT

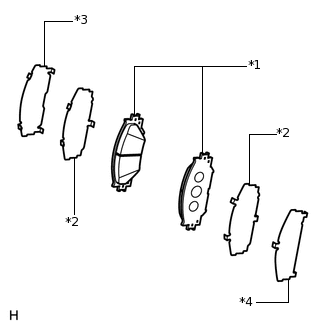

Install the 2 No. 1 anti-squeal shims and 2 No. 2 anti-squeal shims to the pads.

Note:

When replacing a worn pad, the shins must be replaced together with the pads.
Install the shims in the correct positions and direction as shown in the illustration.

INSTALL FRONT DISC BRAKE PAD

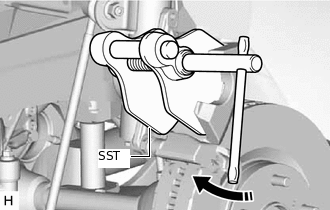

Using SST, push back the front disc brake piston.

Note:
Do not forcibly install the piston into the disc brake cylinder assembly LH.

09719-77020
Lift up the disc brake cylinder assembly LH and install the 2 front disc brake pads to the front disc brake cylinder mounting LH.

CAUTION:
When installing the front disc brake pad and anti-squeal spring, make sure that your hands, etc., do not get caught in the disc brake cylinder assembly LH.

Note:
Make sure the friction surfaces of the front disc brake pad and front disc are free of oil and grease.
Install the 2 front disc brake pads with the 2 No. 1 anti-squeal shims to the front disc brake cylinder mounting LH.

*a	Hold
*b	Turn

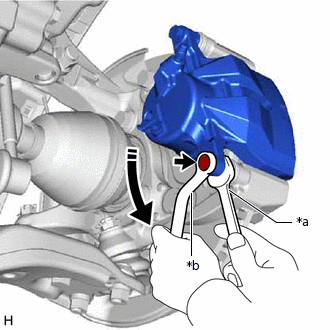

Hold the front disc brake cylinder slide pin and install the disc brake cylinder assembly LH to the disc brake cylinder mounting LH with the bolt.

34.3 N*m

350 kgf*cm

25 ft.*lbf

Note:

Install the disc brake cylinder assembly while holding both of the front disc brake pads because the anti-squeal springs may fall off the front disc brake pads.
Be sure that the anti-squeal springs are installed to the front disc brake pads.

Install the flexible hose bracket to the steering knuckle and absorber bracket with the 2 bolts.
Click here
Depress the brake pedal several times.
