AUTOMATIC TRANSMISSION UNIT COMPONENTS

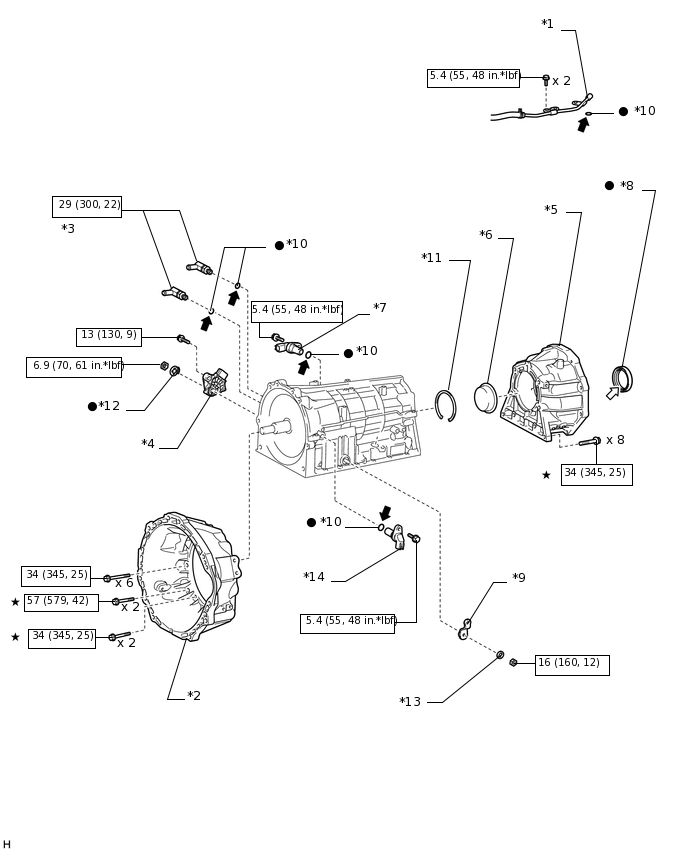

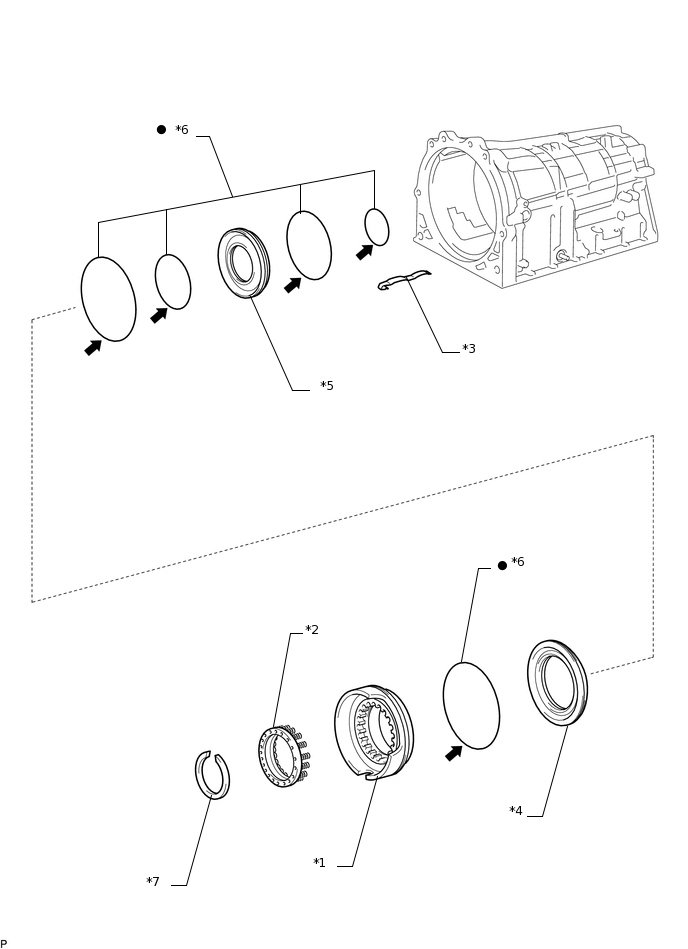

ILLUSTRATION
*1 |
AUTOMATIC TRANSMISSION BREATHER TUBE |
*2 |
AUTOMATIC TRANSMISSION HOUSING |
*3 |
OIL COOLER TUBE UNION |
*4 |
PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
*5 |
REAR TRANSFER ADAPTOR |
*6 |
REAR TRANSFER CASE ADAPTOR OIL RECEIVER |
*7 |
SPEED SENSOR SP2 |
*8 |
TRANSFER ADAPTER OIL SEAL |
*9 |
TRANSMISSION CONTROL SHAFT LEVER LH |
*10 |
O-RING |
*11 |
SNAP RING |
*12 |
LOCK WASHER |
*13 |
SPRING WASHER |
*14 |
SPEED SENSOR NT |
 |
Specified torque: N*m (kgf*cm, ft.*lbf) |
● |
Non-reusable part |
 |
Toyota Genuine ATF WS |
 |
MP grease |
★ |
Precoated part |
- |
- |

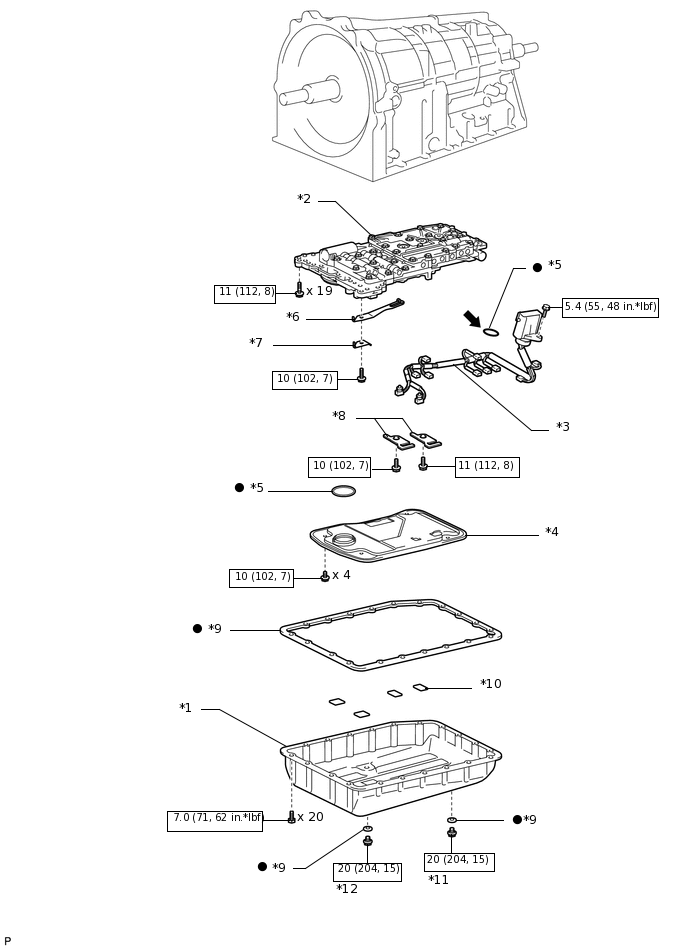

ILLUSTRATION
*1 |
AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY |
*2 |
TRANSMISSION VALVE BODY ASSEMBLY |
*3 |
TRANSMISSION WIRE |
*4 |
VALVE BODY OIL STRAINER ASSEMBLY |
*5 |
O-RING |
*6 |
DETENT SPRING |
*7 |
DETENT SPRING COVER |
*8 |
TEMPERATURE SENSOR CLAMP |
*9 |
GASKET |
*10 |
MAGNET |
*11 |
DRAIN PLUG |
*12 |
OVERFLOW PLUG |
|
Specified torque: N*m (kgf*cm, ft.*lbf) |
● |
Non-reusable part |
|
Toyota Genuine ATF WS |
- |
- |

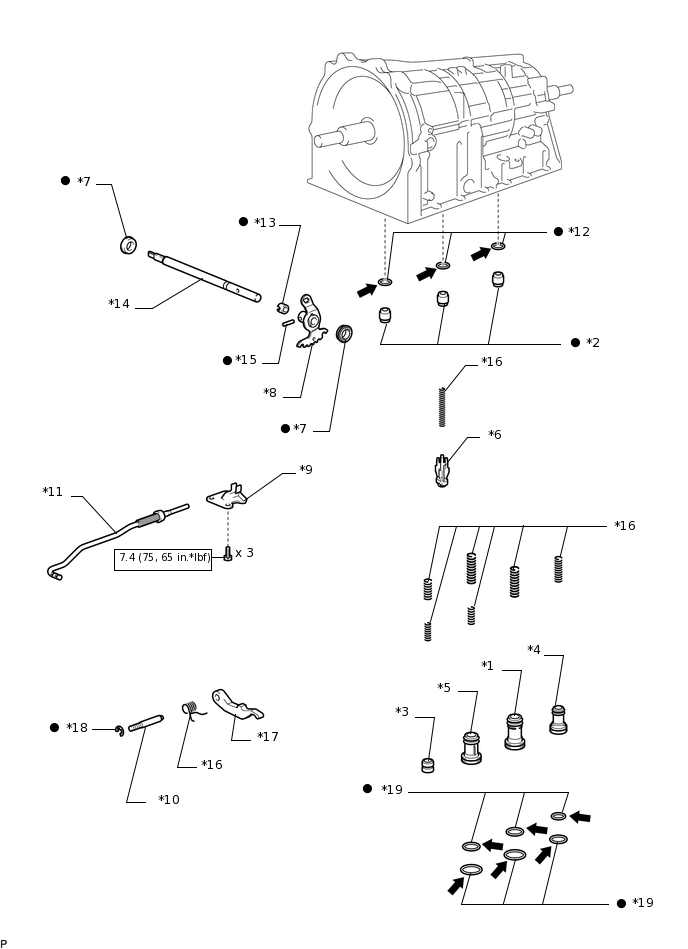

ILLUSTRATION
*1 |
B-3 ACCUMULATOR PISTON |
*2 |
BRAKE DRUM GASKET |
*3 |
C-1 ACCUMULATOR VALVE |
*4 |
C-2 ACCUMULATOR PISTON |
*5 |
C-3 ACCUMULATOR PISTON |
*6 |
CHECK BALL BODY |
*7 |
MANUAL VALVE LEVER SHAFT OIL SEAL |
*8 |
MANUAL VALVE LEVER SUB-ASSEMBLY |
*9 |
PARKING LOCK PAWL BRACKET |
*10 |
PARKING LOCK PAWL SHAFT |
*11 |
PARKING LOCK ROD SUB-ASSEMBLY |
*12 |
TRANSMISSION CASE GASKET |
*13 |
SPACER |
*14 |
MANUAL VALVE LEVER SHAFT |
*15 |
SPRING PIN |
*16 |
SPRING |
*17 |
PARKING LOCK PAWL |
*18 |
E-RING |
*19 |
O-RING |
- |
|
|
Specified torque: N*m (kgf*cm, ft.*lbf) |
● |
Non-reusable part |
|
Toyota Genuine ATF WS |
|
MP grease |

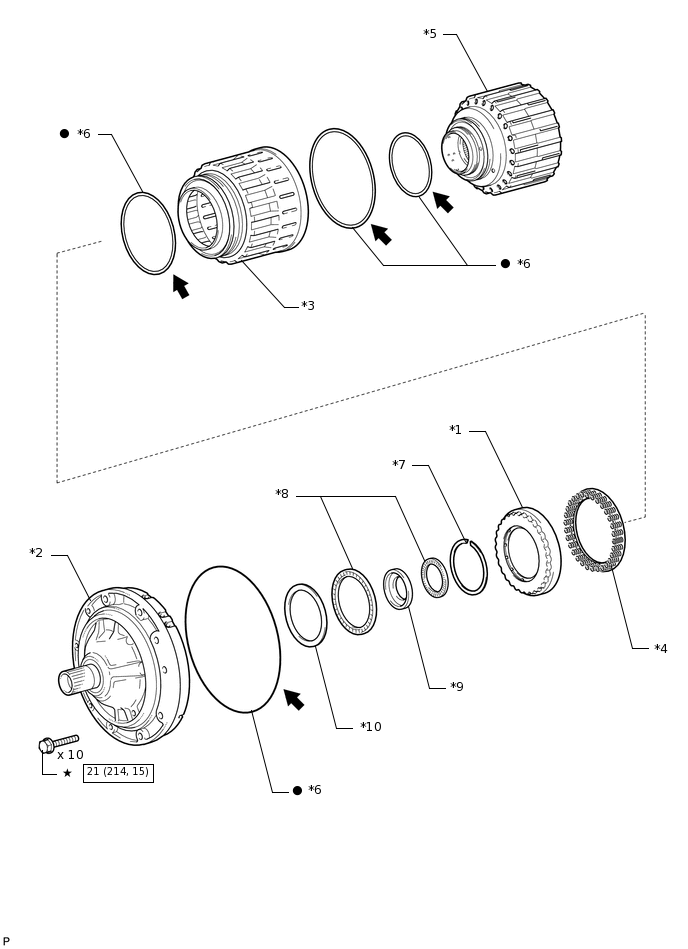

ILLUSTRATION
*1 |
NO. 3 CLUTCH BALANCER |
*2 |
OIL PUMP ASSEMBLY |
*3 |
REVERSE CLUTCH PISTON SUB-ASSEMBLY |
*4 |
REVERSE CLUTCH RETURN SPRING SUB-ASSEMBLY |
*5 |
CLUTCH DRUM |
*6 |
O-RING |
*7 |
SNAP RING |
*8 |
THRUST NEEDLE ROLLER BEARING |
*9 |
THRUST BEARING RACE |
*10 |
NO. 1 THRUST BEARING RACE |
|
Specified torque: N*m (kgf*cm, ft.*lbf) |
● |
Non-reusable part |
|
Toyota Genuine ATF WS |
★ |
Precoated part |

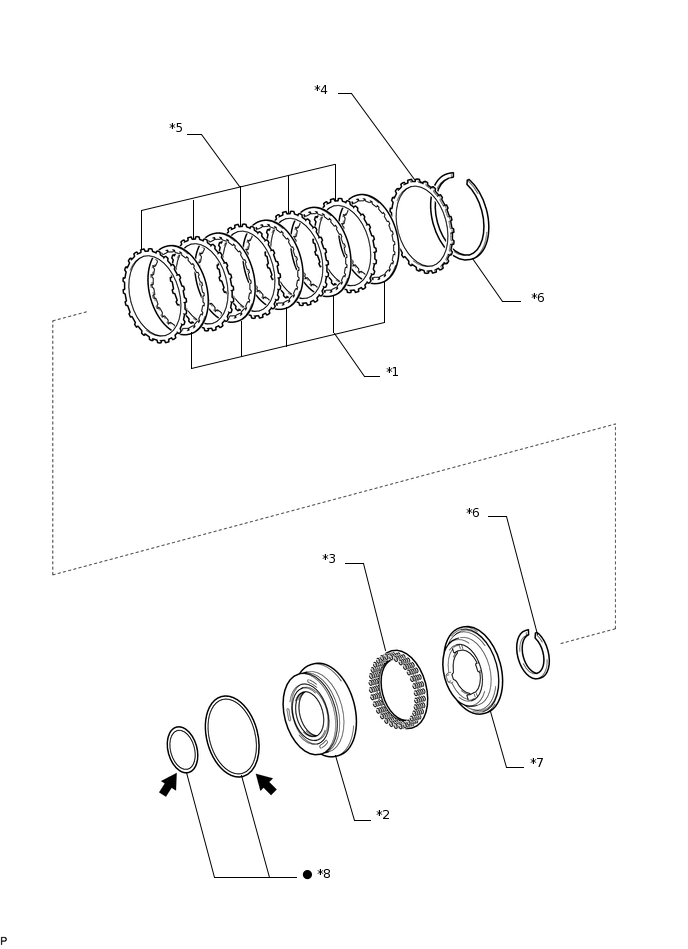

ILLUSTRATION
*1 |
DIRECT CLUTCH DISC |
*2 |
DIRECT CLUTCH PISTON SUB-ASSEMBLY |
*3 |
DIRECT CLUTCH RETURN SPRING SUB-ASSEMBLY |
*4 |
DIRECT CLUTCH FLANGE |
*5 |
CLUTCH PLATE |
*6 |
SNAP RING |
*7 |
NO. 2 CLUTCH BALANCER |
*8 |
O-RING |
● |
Non-reusable part |
|
Toyota Genuine ATF WS |

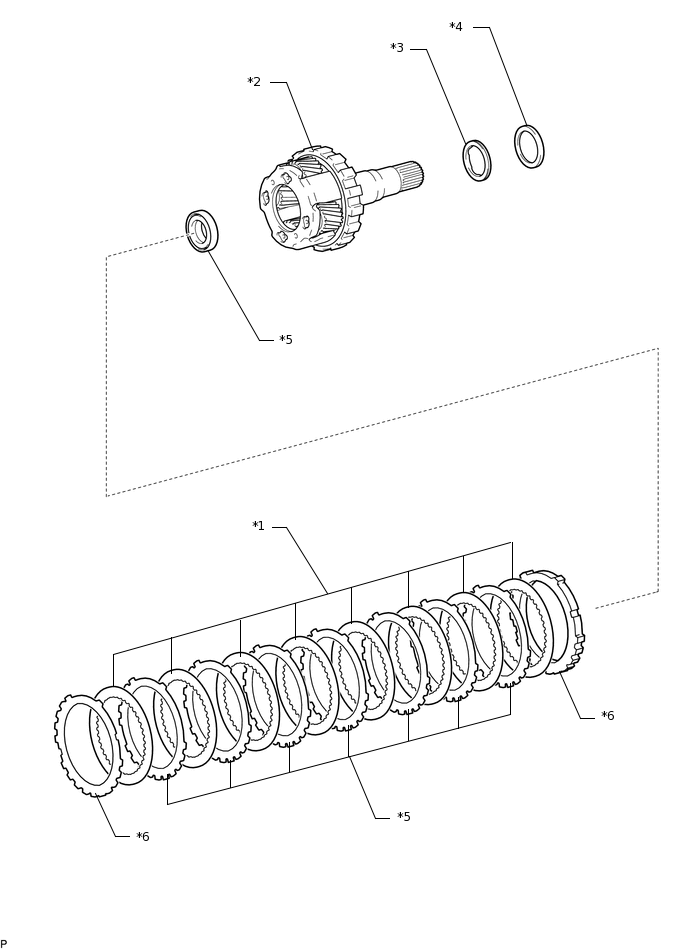

ILLUSTRATION
*1 |
FORWARD CLUTCH PISTON |
*2 |
FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY |
*3 |
FORWARD MULTIPLE DISC CLUTCH DISC |
*4 |
INPUT SHAFT ASSEMBLY |
*5 |
INPUT SHAFT OIL SEAL RING |
*6 |
FORWARD CLUTCH FLANGE |
*7 |
SNAP RING |
*8 |
CLUTCH PLATE |
*9 |
NO. 1 CLUTCH BALANCER |
*10 |
O-RING |
● |
Non-reusable part |
|
Toyota Genuine ATF WS |

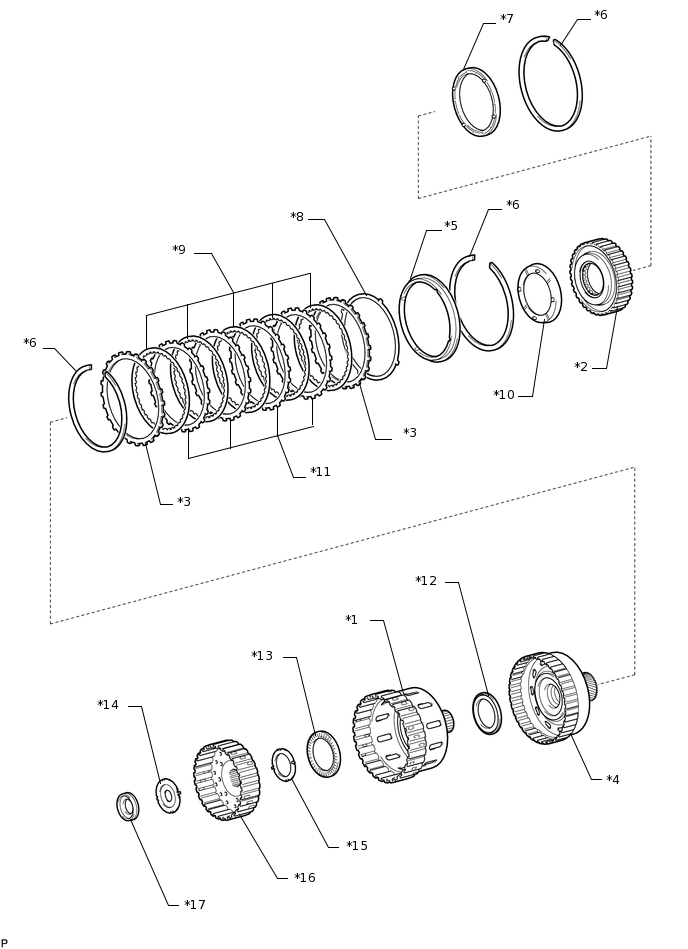

ILLUSTRATION
*1 |
FORWARD CLUTCH HUB SUB-ASSEMBLY |
*2 |
NO. 2 ONE-WAY CLUTCH ASSEMBLY |
*3 |
REVERSE CLUTCH FLANGE |
*4 |
REVERSE CLUTCH HUB SUB-ASSEMBLY |
*5 |
REVERSE CLUTCH REACTION SLEEVE |
*6 |
SNAP RING |
*7 |
CLUTCH DRUM THRUST WASHER |
*8 |
CLUTCH CUSHION PLATE |
*9 |
REVERSE CLUTCH DISC |
*10 |
NO. 2 CLUTCH DRUM THRUST WASHER |
*11 |
CLUTCH PLATE |
*12 |
THRUST NEEDLE ROLLER BEARING |
*13 |
THRUST NEEDLE ROLLER BEARING |
*14 |
NO. 3 THRUST BEARING RACE |
*15 |
NO. 4 THRUST BEARING RACE |
*16 |
MULTIPLE DISC CLUTCH HUB |
*17 |
THRUST NEEDLE ROLLER BEARING |
- |
- |
ILLUSTRATION
*1 |
2ND BRAKE CYLINDER |
*2 |
2ND BRAKE PISTON |
*3 |
NO. 3 BRAKE DISC |
*4 |
ONE-WAY CLUTCH ASSEMBLY |
*5 |
SNAP RING |
*6 |
O-RING |
*7 |
2ND BRAKE PISTON RETURN SPRING SUB-ASSEMBLY |
*8 |
NO. 1 PLANETARY CARRIER THRUST WASHER |
*9 |
BRAKE CUSHION PLATE |
*10 |
NO. 3 BRAKE PLATE |
*11 |
NO. 3 BRAKE FLANGE |
- |
- |
● |
Non-reusable part |
|
Toyota Genuine ATF WS |

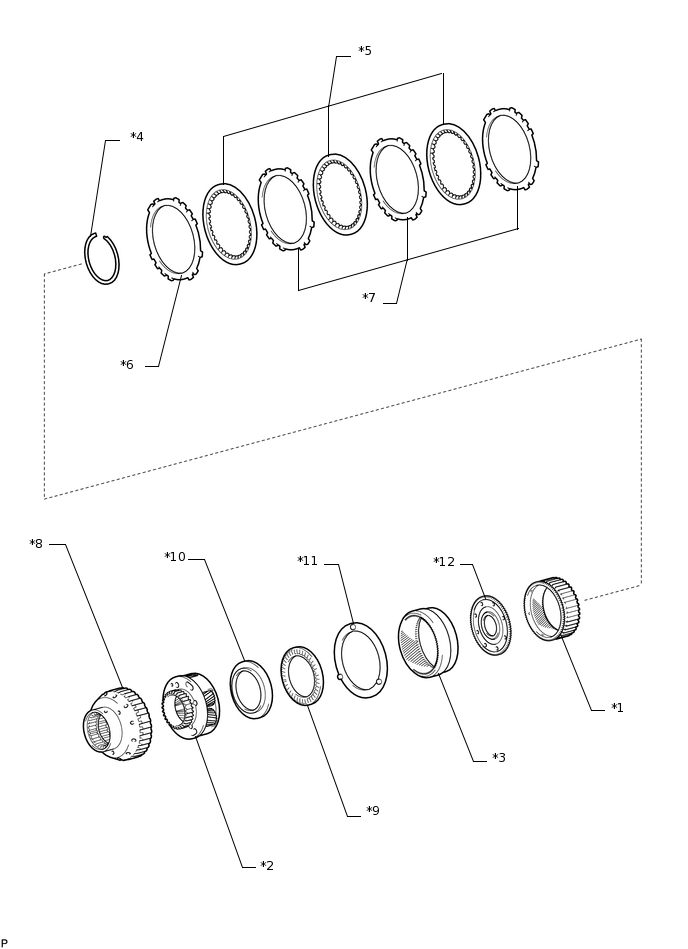

ILLUSTRATION
*1 |
CENTER PLANETARY RING GEAR |
*2 |
FRONT PLANETARY GEAR ASSEMBLY |
*3 |
FRONT PLANETARY RING GEAR |
*4 |
SNAP RING |
*5 |
NO. 1 BRAKE DISC |
*6 |
NO. 1 BRAKE FLANGE |
*7 |
NO. 1 BRAKE PLATE |
*8 |
ONE-WAY CLUTCH INNER RACE |
*9 |
THRUST NEEDLE ROLLER BEARING |
*10 |
NO. 3 THRUST BEARING RACE |
*11 |
NO. 2 PLANETARY CARRIER THRUST WASHER |
*12 |
FRONT PLANETARY RING GEAR FLANGE |

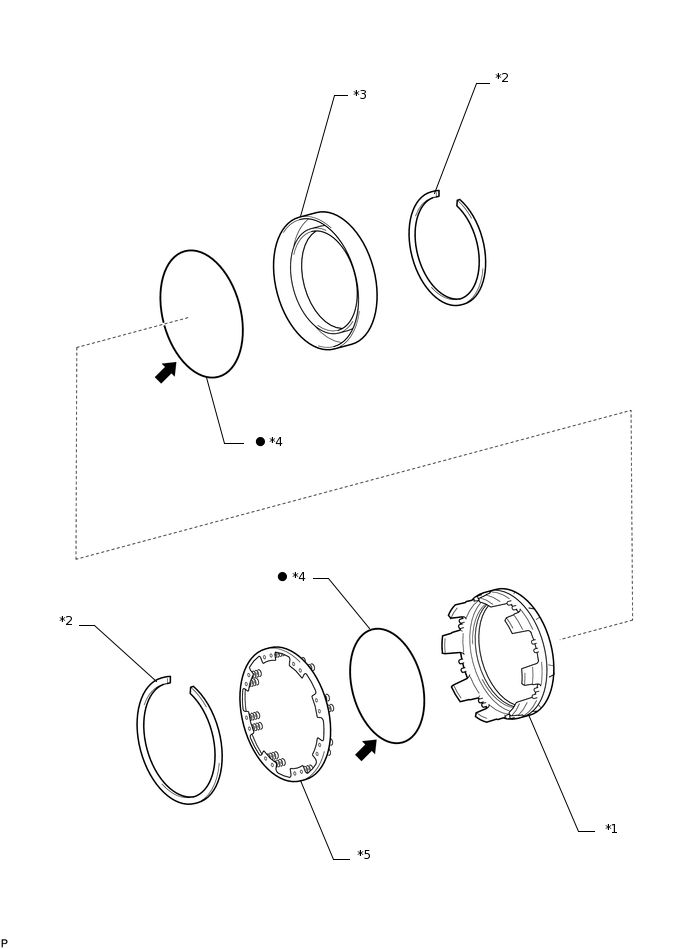

ILLUSTRATION
*1 |
NO. 1 BRAKE PISTON |
*2 |
SNAP RING |
*3 |
NO. 1 BRAKE CYLINDER |
*4 |
O-RING |
*5 |
BRAKE PISTON RETURN SPRING SUB-ASSEMBLY |
- |
- |
● |
Non-reusable part |
|
Toyota Genuine ATF WS |

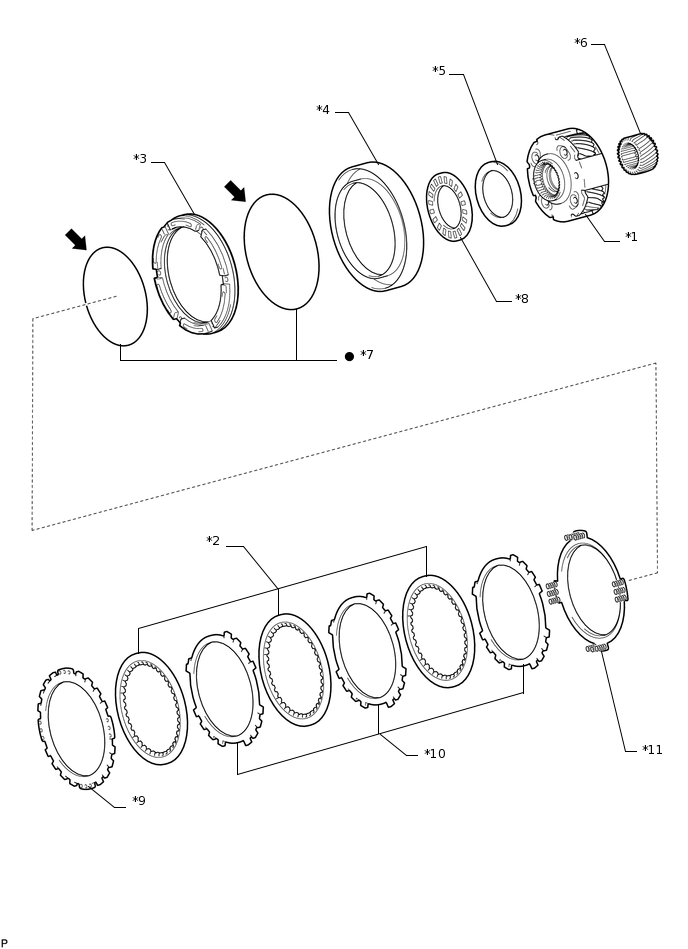

ILLUSTRATION
*1 |
CENTER PLANETARY GEAR ASSEMBLY |
*2 |
NO. 2 BRAKE DISC |
*3 |
NO. 2 BRAKE PISTON |
*4 |
NO. 2 BRAKE CYLINDER |
*5 |
NO. 4 THRUST BEARING RACE |
*6 |
PLANETARY SUN GEAR |
*7 |
O-RING |
*8 |
THRUST NEEDLE ROLLER BEARING |
*9 |
NO. 2 BRAKE FLANGE |
*10 |
NO. 2 BRAKE PLATE |
*11 |
NO. 2 BRAKE PISTON RETURN SPRING |
- |
|
● |
Non-reusable part |
|
Toyota Genuine ATF WS |

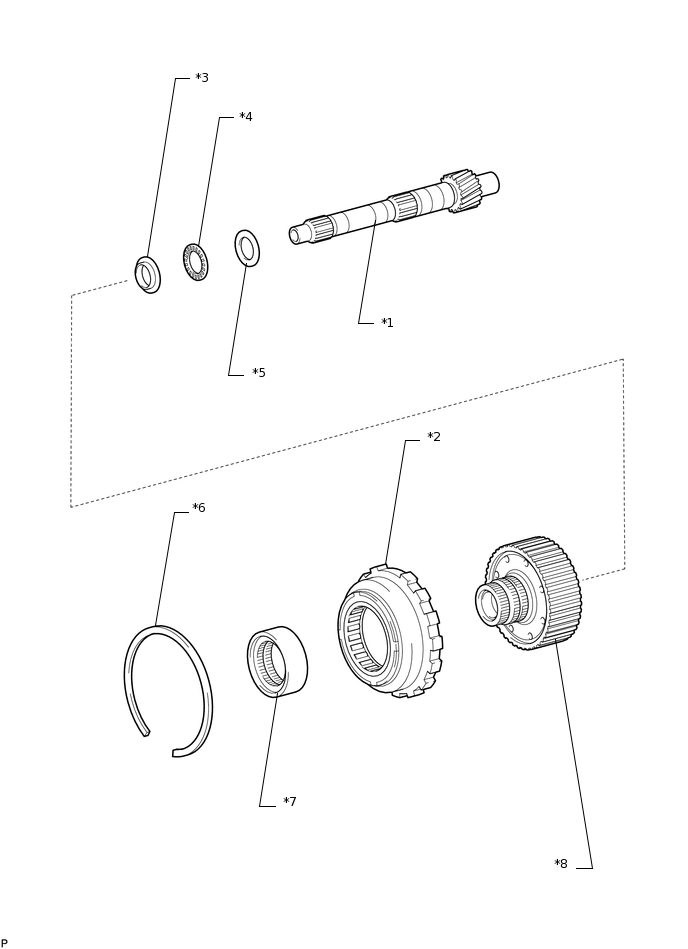

ILLUSTRATION
*1 |
INTERMEDIATE SHAFT |
*2 |
NO. 3 ONE-WAY CLUTCH ASSEMBLY |
*3 |
NO. 7 THRUST BEARING RACE |
*4 |
THRUST NEEDLE ROLLER BEARING |
*5 |
NO. 8 THRUST BEARING RACE |
*6 |
SNAP RING |
*7 |
ONE-WAY CLUTCH INNER RACE |
*8 |
REAR PLANETARY RING GEAR FLANGE SUB-ASSEMBLY |
ILLUSTRATION
*1 |
NO. 4 BRAKE DISC |
*2 |
REAR PLANETARY GEAR ASSEMBLY |
*3 |
THRUST NEEDLE ROLLER BEARING |
*4 |
NO. 9 THRUST BEARING RACE |
*5 |
NO. 4 BRAKE PLATE |
*6 |
NO. 4 BRAKE FLANGE |
ILLUSTRATION
*1 |
1ST AND REVERSE BRAKE PISTON |
*2 |
1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY |
*3 |
BRAKE PLATE STOPPER SPRING |
*4 |
BRAKE REACTION SLEEVE |
*5 |
NO. 4 BRAKE PISTON |
*6 |
O-RING |
*7 |
SNAP RING |
- |
- |
● |
Non-reusable part |
|
Toyota Genuine ATF WS |
