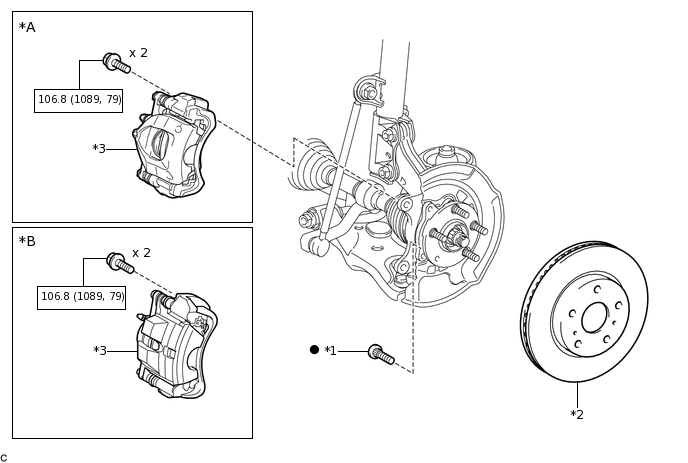

FRONT AXLE HUB BOLT COMPONENTS

*A	for Type A	*B	for Type B
*1	FRONT AXLE HUB BOLT	*2	FRONT DISC
*3	FRONT DISC BRAKE CALIPER ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part

*A

for Type A

*B

for Type B

*1

FRONT AXLE HUB BOLT

*2

FRONT DISC

*3

FRONT DISC BRAKE CALIPER ASSEMBLY

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
