HEADLIGHT ASSEMBLY(for HID Headlight) DISASSEMBLY

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH

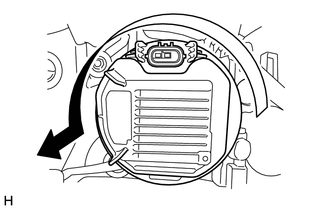

    E268832

    1. Turn the headlight light control ECU sub-assembly LH in the direction indicated by the arrow in the illustration to separate the headlight light control ECU sub-assembly LH from the headlight unit.

      Note:

      • Do not apply excessive force using a tool.

      • Do not damage the headlight gasket or allow it to become contaminated with foreign matter. If the headlight gasket is damaged or contaminated, water may get into the headlight assembly, resulting in a malfunction of the headlight light control ECU sub-assembly LH.

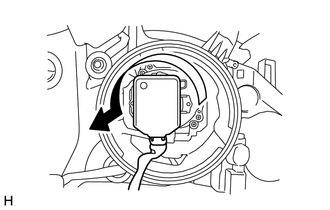

    2. E268834

      Turn the headlight light control ECU sub-assembly socket in the direction indicated by the arrow in the illustration to remove the headlight light control ECU sub-assembly LH.

      CAUTION:

      Do not pull the headlight light control ECU sub-assembly LH with the socket connected.

  2. REMOVE HEADLIGHT GASKET

    E268831

    1. Remove the headlight gasket from the headlight light control ECU sub-assembly LH.

  3. REMOVE DISCHARGE HEADLIGHT BULB

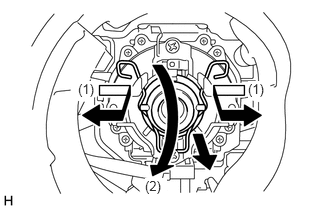

    U124027E02

    1. Release the set spring lock in the order shown in the illustration and remove the discharge headlight bulb.

      Note:

      Do not touch the discharge headlight bulb glass.

  4. REMOVE FRONT TURN SIGNAL LIGHT SOCKET

    E268816

    1. Turn the front turn signal light socket in the direction indicated by the arrow to remove it.

  5. REMOVE FRONT TURN SIGNAL LIGHT BULB

    E268818

    1. Remove the front turn signal light bulb from the front turn signal light socket.
