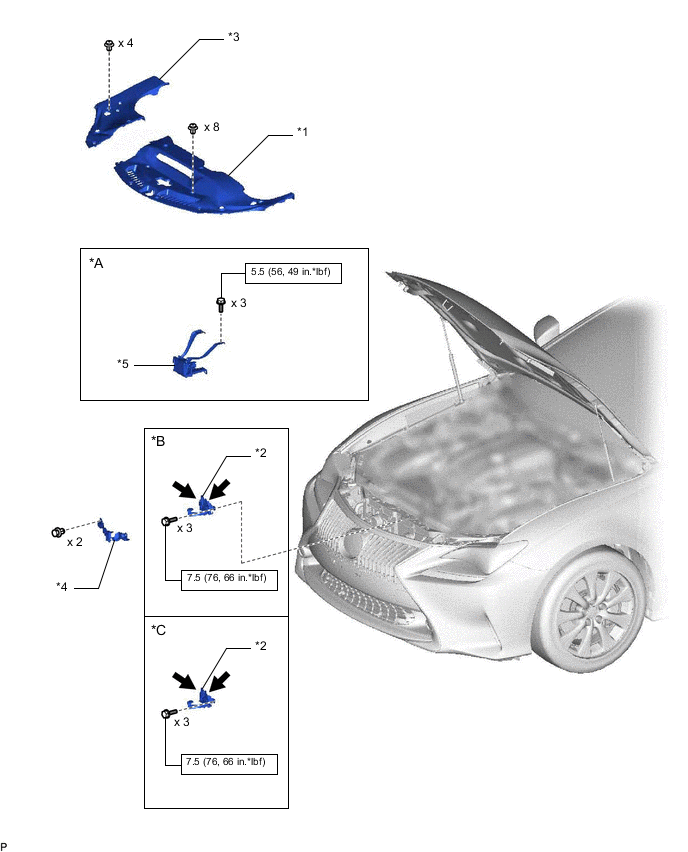

ENGINE HOOD COURTESY SWITCH COMPONENTS
ILLUSTRATION
| *A | w/ Dynamic Radar Cruise Control System | *B | for LHD |
| *C | for RHD | - | - |
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | ENGINE HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY) |
| *3 | ENGINE ROOM SIDE COVER | *4 | HOOD LOCK RELEASE LEVER PROTECTOR |
| *5 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |  |
MP grease |
