ENTRY AND START SYSTEM(for Entry Function) Back Door Entry Lock Function does not Operate

DTC Code DTC Name
Back Door Entry Lock Function does not Operate

DESCRIPTION

If the entry lock function does not operate for the back door only, but the entry unlock function operates, the request code is being transmitted properly from the back door. In this case, there may be a problem related to the lock switch (connection between the glass hatch lock switch assembly and certification ECU (smart key ECU assembly)).

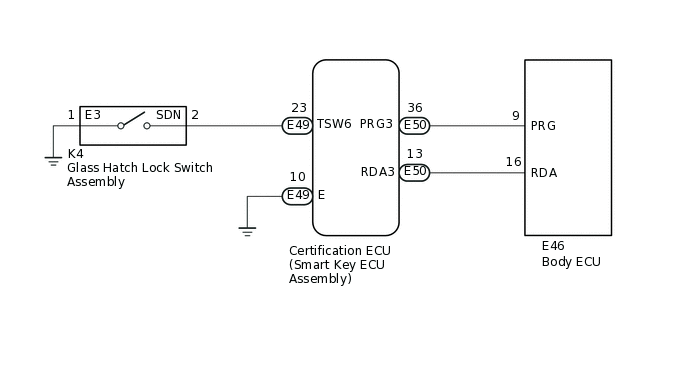

WIRING DIAGRAM

B361592E03

CAUTION / NOTICE / HINT

Note:

  • The entry and start system (for Entry Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the entry and start system (for Entry Function) after confirming that the communication systems are functioning properly.

    Click here

  • When using the GTS with the engine switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

  • Check that there are no electrical key transmitter sub-assemblies in the vehicle.

  • Before performing the inspection, check that DTC B1242 (wireless door lock control) or B27B0 is not output.

  • Before replacing the certification ECU (smart key ECU assembly), refer to entry and start system (for Entry Function) Precaution.

    Click here

  • After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".

PROCEDURE

  1. CHECK POWER DOOR LOCK CONTROL SYSTEM

    1. When the door control switch is operated, check that the doors unlock and lock according to the switch operation.

      Click here

      OK

      Door locks operate normally.

    Result

    Proceed to

    OK

    NG
    NG

    GO TO POWER DOOR LOCK CONTROL SYSTEM

    Click here

    OK

  2. READ VALUE USING GTS (TR/B-DOOR LOCK SW)

    1. Connect the GTS to the DLC3.

    2. Turn the engine switch on (IG).

    3. Turn the GTS on.

    4. Enter the following menus: Body Electrical / Entry&Start / Data List.

    5. Read the Data List according to the display on the GTS.

      Body Electrical > Entry&Start > Data List

      Tester Display

      Measurement Item

      Range

      Normal Condition

      Diagnostic Note

      Tr/B-Door Lock SW

      Glass hatch lock switch assembly

      ON or OFF

      ON: Glass hatch lock switch assembly pushed

      OFF: Glass hatch lock switch assembly not pushed

      • Displays whether the glass hatch lock switch assembly is on or off.

      • Use this Data List item to help determine if there is a switch malfunction when the back door lock function does not operate.

      Body Electrical > Entry&Start > Data List

      Tester Display

      Tr/B-Door Lock SW

      OK

      The GTS display changes correctly in response to the operation of the glass hatch opener switch assembly.

    Result

    Result

    Proceed to

    NG

    A

    OK

    B
    B

    CHECK ENTRY BACK DOOR LOCK OPERATIONClick here

    A

  3. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - GLASS HATCH LOCK SWITCH ASSEMBLY)

    1. Disconnect the E49 certification ECU (smart key ECU assembly) connector.

    2. Disconnect the K4 glass hatch lock switch assembly connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      E49-23 (TSW6) - K4-2 (SDN)

      Always

      Below 1 Ω

      K4-1 (E3) - Body ground

      Always

      Below 1 Ω

      E49-23 (TSW6) or K4-2 (SDN) - Body ground

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  4. INSPECT GLASS HATCH LOCK SWITCH ASSEMBLY

    1. Remove the glass hatch lock switch assembly.

      Click here

    2. Inspect the glass hatch lock switch assembly.

      Click here

    Result

    Proceed to

    OK

    NG
    NG

    REPLACE GLASS HATCH LOCK SWITCH ASSEMBLY

    Click here

    OK

  5. CHECK ENTRY BACK DOOR LOCK OPERATION

    1. Reconnect all connectors.

    2. Check the entry back door lock function.

      Click hereClick here

      OK

      Entry back door lock function operates normally.

    Result

    Proceed to

    OK

    NG
    OK

    END (CONNECTOR WAS NOT CONNECTED SECURELY)

    NG

  6. REPLACE BODY ECU

    1. Replace the body ECU with a new or known good one.

      Click here

    Result

    Proceed to

    NEXT
    NEXT

  7. CHECK ENTRY BACK DOOR LOCK OPERATION

    1. Check the entry back door lock function.

      Click hereClick here

      OK

      Entry back door lock function operates normally.

    Result

    Proceed to

    OK

    NG
    OK

    END (BODY ECU WAS DEFECTIVE)

    NG

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
