FRONT DRIVE SHAFT ASSEMBLY INSTALLATION

PROCEDURE

  1. INSTALL FRONT DRIVE SHAFT HOLE SNAP RING LH

    1. Install a new front drive shaft hole snap ring LH.

      Note:

      • Do not damage the spline of the front drive inboard joint assembly LH.

      • Front drive shaft hole snap ring LH should be installed completely.

  2. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH

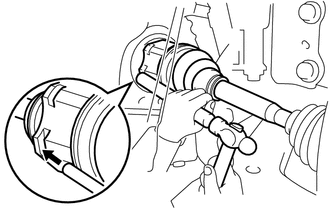

    1. C264656

      Coat the spline of the inboard joint shaft assembly LH with Toyota Genuine ATF WS.

    2. Coat the snap ring of the front drive outboard joint shaft assembly LH with MP grease.

    3. Coat the lip of the front drive shaft oil seal LH with MP grease.

    4. Align the splines and tap in the front drive shaft assembly LH with a brass bar and hammer.

      Note:

      • Using MP grease, set the front drive shaft hole snap ring LH in the groove with the opening facing downwards and centered radially.

      • Do not damage the front drive shaft oil seal LH, front axle inboard joint boot and front drive shaft dust cover LH.

      • Make sure to follow the proper handling and installation procedures. If the front drive shaft assembly LH is installed at too large an angle or slides too much, it may fall out of the groove of the tripod joint.

      • Do not tap the end of the front drive outboard joint shaft assembly LH with a hammer, etc.

      Tip:

      Determine whether the front drive shaft assembly LH is completely tapped in by checking for changes in the tapping sound or the reaction of the brass bar.

  3. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH

    1. Coat the spline of the inboard joint shaft assembly RH with Toyota Genuine ATF WS.

    2. Coat the lip of the front drive shaft oil seal RH with MP grease.

    3. Install a new drive shaft bearing bracket hole snap ring to the front drive shaft assembly RH.

    4. Align the shaft splines and securely install the front drive shaft assembly RH.

      Note:

      • Do not damage the front drive shaft oil seal RH, front axle inboard joint boot and front drive shaft dust cover RH.

      • Make sure to follow the proper handling and installation procedures. If the front drive shaft assembly RH is installed at too large an angle or slides too much, it may fall out of the groove of the tripod joint.

      • Do not tap the end of the front drive outboard joint shaft assembly RH with a hammer, etc.

    5. Install the drive shaft bearing bracket hole snap ring and a new bolt.

      32.4 N*m

      330 kgf*cm

      24 ft.*lbf

      Note:

      Before installing the bolt, check the end for rubber.

  4. CONNECT FRONT AXLE ASSEMBLY LH

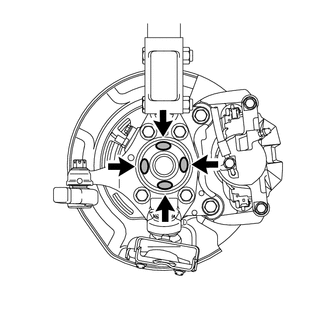

    1. C346080

      Apply MP grease to the entire contact surface between the front drive shaft assembly LH and axle hub bearing surface or only apply 0.1 to 0.3 g (0.00353 to 0.0105 oz) of MP grease to the 4 areas on the axle hub bearing shown in the illustration.

    2. Align the matchmarks and connect the front axle assembly LH.

      Note:

      • Do not damage the dust deflector.

      • Do not damage the front axle outboard joint boot.

      • Do not press the front axle assembly LH more than necessary.

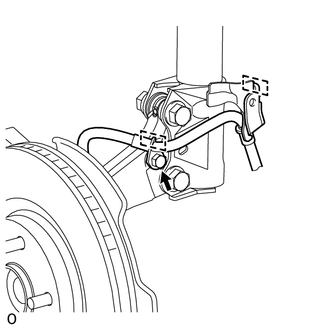

    3. C264664

      Attach the 2 guides and install the bolt.

      29 N*m

      296 kgf*cm

      21 ft.*lbf

  5. CONNECT FRONT AXLE ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.

  6. CONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

    Click here

  7. CONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.

  8. CONNECT FRONT STABILIZER LINK ASSEMBLY LH

    Click here

  9. CONNECT FRONT STABILIZER LINK ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.

  10. CONNECT FRONT SPEED SENSOR LH

    Click here

  11. CONNECT FRONT SPEED SENSOR RH

    Tip:

    Use the same procedure described for the LH side.

  12. INSTALL FRONT AXLE SHAFT NUT LH

    Click here

  13. INSTALL FRONT AXLE SHAFT NUT RH

    Tip:

    Use the same procedure described for the LH side.

  14. STAKE FRONT AXLE SHAFT NUT LH

    Click here

  15. STAKE FRONT AXLE SHAFT NUT RH

    Tip:

    Use the same procedure described for the LH side.

  16. ADD HYBRID TRANSAXLE FLUID

    Click here

  17. INSPECT FOR OIL LEAK

  18. INSTALL FRONT WHEEL

    Click here

  19. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

    Click here

  20. INSTALL REAR ENGINE UNDER COVER RH

    Click here

  21. INSTALL REAR ENGINE UNDER COVER LH

    Click here

  22. INSTALL NO. 1 ENGINE UNDER COVER

    Click here

  23. CHECK SPEED SENSOR SIGNAL

    Click here
