NOISE FILTER REMOVAL

PROCEDURE


  1. REMOVE DECK BOARD ASSEMBLY

    Click here

  2. REMOVE NO. 1 DECK BOARD

    Click here

  3. REMOVE NO. 2 DECK BOARD

    Click here

  4. REMOVE REAR DECK FLOOR BOX

    Click here

  5. REMOVE DECK FLOOR BOX RH

    Click here

  6. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Click here

  7. REMOVE BACK DOOR SCUFF PLATE

    Click here

  8. REMOVE SEAT TRACK BRACKET COVER RH

    Click here

  9. REMOVE REAR SEAT TRACK BRACKET COVER

    Click here

  10. REMOVE SEAT TRACK BRACKET COVER LH

    Click here

  11. REMOVE REAR NO. 2 SEAT ASSEMBLY

    Click here

  12. REMOVE REAR DOOR SCUFF PLATE LH

    Click here

  13. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Click here

  14. REMOVE NO. 1 DECK TRIM COVER

    Click here

  15. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

    Click here

  16. REMOVE FRONT DECK SIDE TRIM COVER LH

    Click here

  17. REMOVE NO. 2 CUP HOLDER

    Click here

  18. DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH

    Click here

  19. DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH (for Lower Side)

    Click here

  20. REMOVE NO. 2 ROOM LIGHT ASSEMBLY

    Click here

  21. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Click here

  22. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

    Click here

  23. REMOVE RADIO SETTING CONDENSER

    Note

    When the terminal cover is removed, the radio setting condenser must be replaced because the terminal cover and condenser are supplied as a set.

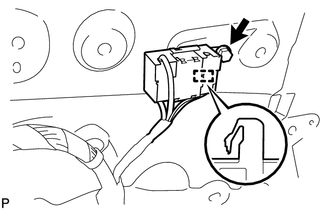

    1. A005CUD

      Remove the bolt.

    2. Disengage the clamp and disconnect the radio setting condenser with wire harness from the vehicle body.

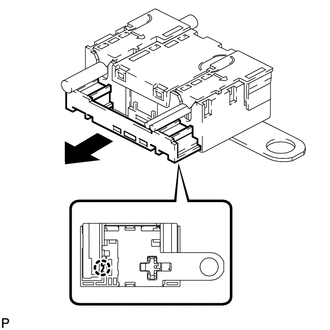

    3. A005C25

      Disengage the claw and pull out the cover as shown in the illustration.

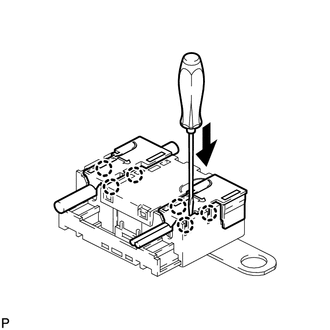

    4. A005CUZ

      Using a screwdriver, disengage the 6 claws and remove the 2 terminal covers with wire harness from the condenser.

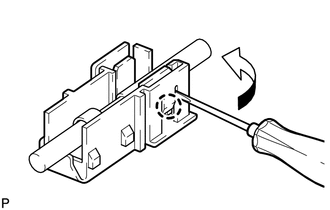

    5. A005DPM

      Using a screwdriver, bend back and break off the claw as shown in the illustration.

    6. Remove the terminal cover from the wire harness.

      Note


      • Make sure to hold the wire harness on the crimping side of the terminal when disconnecting the wire harness from the terminal cover.

      • Make sure not to bend the exposed wire when disconnecting the wire harness from the terminal cover.

      • Check for deformation of the terminal after the wire harness has been removed from the terminal cover.
