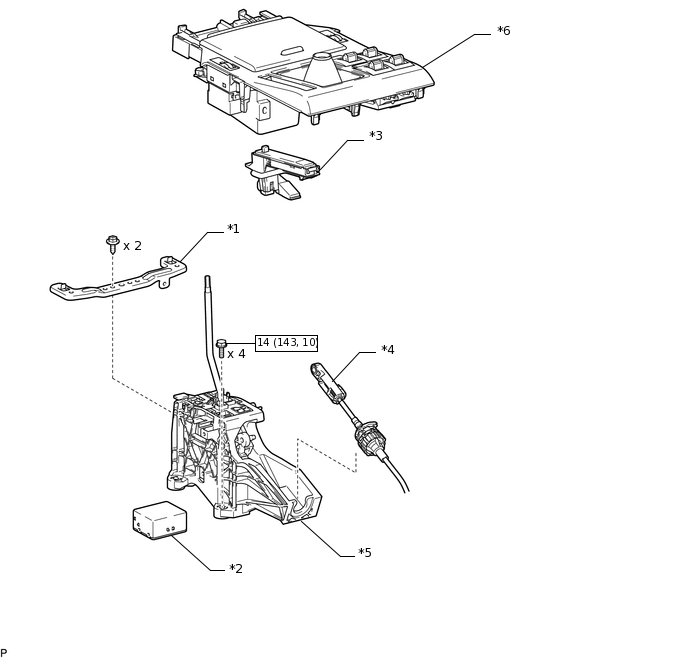

SHIFT LEVER COMPONENTS
ILLUSTRATION
*1 |
NO. 1 CONSOLE BOX MOUNTING BRACKET |
*2 |
SHIFT LOCK CONTROL ECU SUB-ASSEMBLY |
*3 |
SHIFT POSITION INDICATOR |
*4 |
TRANSMISSION CONTROL CABLE ASSEMBLY |
*5 |
TRANSMISSION FLOOR SHIFT ASSEMBLY |
*6 |
UPPER CONSOLE PANEL |
 |
Specified torque: N*m (kgf*cm, ft.*lbf) |
- |
- |
