WIPER AND WASHER SYSTEM, Diagnostic DTC:B1245

DTC Code DTC Name
B1245 Lost Communication with Wiper ECU LIN

DESCRIPTION

The main body ECU (multiplex network body ECU) and windshield wiper motor assembly communicate via LIN communication. The main body ECU (multiplex network body ECU) stores this DTC if communication becomes abnormal.

DTC No. Detection Item DTC Detection Condition Trouble Area Memory DTC Output from
B1245 Lost Communication with Wiper ECU LIN

    Detection condition:

  • Battery voltage is 9.5 V or more


    Malfunction Status:

  • A communication malfunction between the main body ECU (multiplex network body ECU) and windshield wiper motor assembly


    Malfunction Time:

  • 10 seconds or more


  • Windshield wiper motor assembly

  • Main body ECU (multiplex network body ECU)

  • Harness or connector

Main body ECU (multiplex network body ECU)

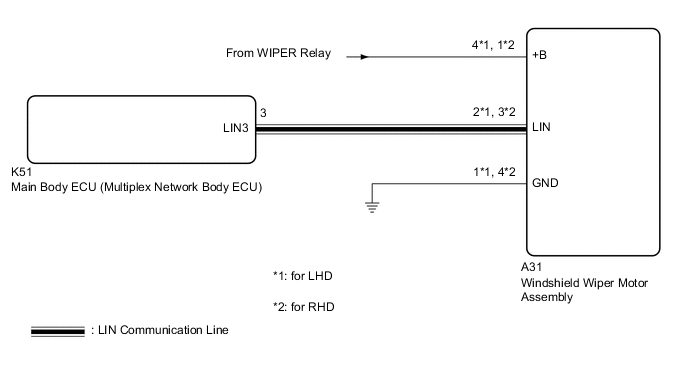

WIRING DIAGRAM

B0085QYE01

CAUTION / NOTICE / HINT

Note


  • The vehicle battery supplies power to the main body ECU (multiplex network body ECU) via the door control battery. Therefore, before performing this troubleshooting procedure, make sure to perform an on-vehicle inspection to confirm that the main body ECU (multiplex network body ECU) power source circuit is normal.*1

    Click here

  • Before replacing the main body ECU (multiplex network body ECU), refer to Service Bulletin.*2


    • *1: w/ Door Control Battery

    • *2: w/ Smart Entry and Start System

PROCEDURE


  1. CHECK FOR DTC


    1. Connect the GTS to the DLC3.

    2. Turn the ignition switch to ON.

    3. Turn the GTS on.

    4. Enter the following menus: Body Electrical / Main Body / Trouble Codes.

    5. Check for DTCs.


      Body Electrical > Main Body > Trouble Codes
      Result
      Result Proceed to
      Only DTC B1245 is output A
      DTC B1245 and B1373 are output B

    B
    A
  2. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) - WINDSHIELD WIPER MOTOR ASSEMBLY)


    1. Disconnect the K51 main body ECU (multiplex network body ECU) connector.

    2. Disconnect the A31 windshield wiper motor assembly connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      for LHD
      Tester Connection Condition Specified Condition
      K51-3 (LIN3) - A31-2 (LIN) Always Below 1 Ω
      for RHD
      Tester Connection Condition Specified Condition
      K51-3 (LIN3) - A31-3 (LIN) Always Below 1 Ω
      Result
      Proceed to
      OK
      NG

    NG
    OK
  3. CHECK MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

    B0085VPC01
    *a

    Component without harness connected

    (Main Body ECU (Multiplex Network Body ECU)


    1. Check for voltage and pulses according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      K51-3 (LIN3) - Body ground Ignition switch off Below 1 V
      Ignition switch ON Pulse generation
      Result
      Proceed to
      OK
      NG

    NG
    OK
  4. CHECK HARNESS AND CONNECTOR (POWER SOURCE - WINDSHIELD WIPER MOTOR ASSEMBLY)


    1. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      for LHD
      Tester Connection Condition Specified Condition
      A31-4 (+B) - Body ground Ignition switch ON 11 to 14 V
      Less than approximately 60 seconds after ignition switch turned off 11 to 14 V
      Approximately 60 seconds after ignition switch turned off Below 1 V
      for RHD
      Tester Connection Condition Specified Condition
      A31-1 (+B) - Body ground Ignition switch ON 11 to 14 V
      Less than approximately 60 seconds after ignition switch turned off 11 to 14 V
      Approximately 60 seconds after ignition switch turned off Below 1 V
      Result
      Proceed to
      OK
      NG

    NG
    OK
  5. CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER MOTOR ASSEMBLY - BODY GROUND)


    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      for LHD
      Tester Connection Condition Specified Condition
      A31-1 (GND) - Body ground Always Below 1 Ω
      for RHD
      Tester Connection Condition Specified Condition
      A31-4 (GND) - Body ground Always Below 1 Ω
      Result
      Proceed to
      OK
      NG

    OK
    NG
