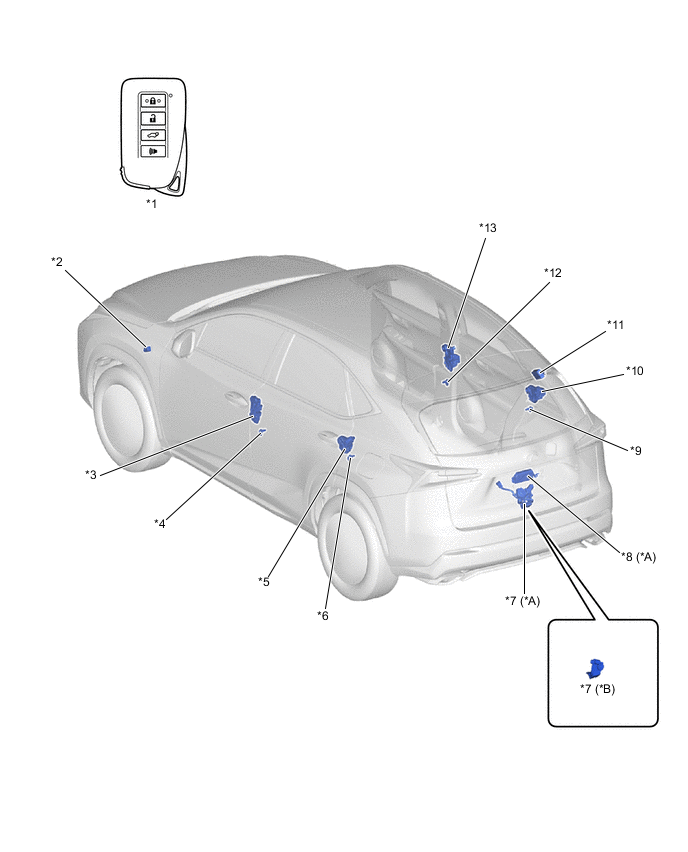

| *A |
Models with Power Back Door System |
*B |
Models without Power Back Door System |
| *1 |
Electrical Key Transmitter Sub-assembly |
*2 |
Wireless Door Lock Buzzer |
| *3 |
Front Door Lock Assembly LH |
*4 |
Front Door Courtesy Light Switch Assembly LH |
| *5 |
Rear Door Lock Assembly LH |
*6 |
Rear Door Courtesy Light Switch Assembly LH |
| *7 |
Back Door Lock Assembly |
*8 |
Power Back Door ECU (Multiplex Network Door ECU) |
| *9 |
Rear Door Courtesy Light Switch Assembly RH |
*10 |
Rear Door Lock Assembly RH |
| *11 |
Smart Door Control Receiver Assembly |
*12 |
Front Door Courtesy Light Switch Assembly RH |
| *13 |
Front Door Lock Assembly RH |
- |
- |
