PARK / NEUTRAL POSITION SWITCH INSPECTION

PROCEDURE

  1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

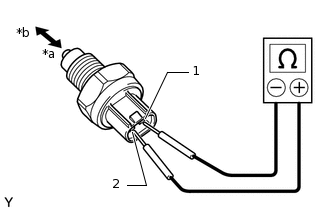

    C114020C02

    *a

    Push

    *b

    Release

    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      1 - 2

      Pushed

      Below 1 Ω

      1 - 2

      Released

      10 kΩ or higher

      If the result is not as specified, replace the park/neutral position switch assembly.
