REAR NO. 2 SEAT ASSEMBLY DISASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the seat frame may injure your hands.

PROCEDURE


  1. REMOVE SEAT ADJUSTER COVER CAP


    1. B005LRF

      Remove the 2 seat adjuster cover caps.

  2. REMOVE REAR SEAT HEADREST ASSEMBLY


    1. Remove the 2 rear seat headrest assemblies.

  3. REMOVE NO. 3 SEAT NO. 2 LEG COVER (for LH Side)


    1. B005M2AC01
      B007ZL6 Fastener

      Disengage the 3 fasteners.

    2. B005LY3

      Disengage the 2 clips and remove the No. 3 seat No. 2 leg cover.

  4. REMOVE REAR NO. 2 SEAT WIRE LH


    1. B005L52

      Disconnect the connector.

    2. Disengage the 4 clamps and remove the rear No. 2 seat wire LH.

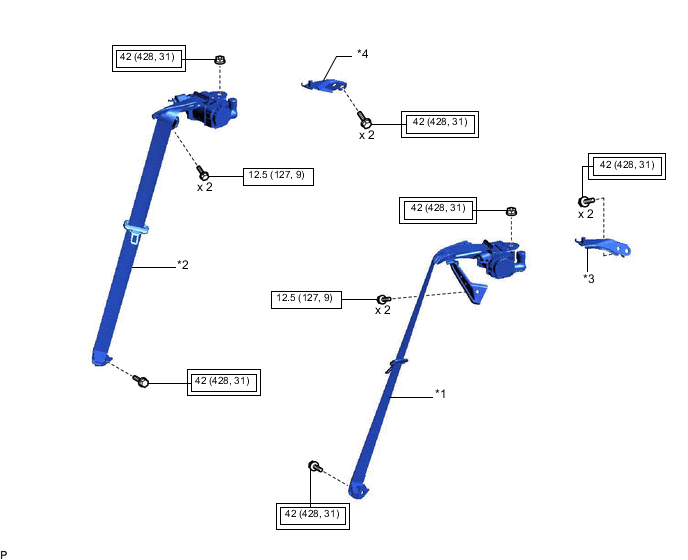

  5. REMOVE REAR NO. 2 SEAT INNER BELT ASSEMBLY LH

    Click here

  6. REMOVE REAR NO. 2 SEAT ASSEMBLY LH


    1. B005LXD

      Remove the 8 nuts and rear No. 2 seat assembly LH.

  7. REMOVE ROPE HOOK ASSEMBLY (for LH Side)


    1. B005MF5

      Disengage the 2 claws as shown in the illustration.

    2. B005ML7

      Remove the bolt and rope hook assembly.

  8. REMOVE NO. 2 SEATBACK BOARD SUB-ASSEMBLY LH


    1. B005LPR

      Disengage the 2 clips.

    2. B005LLQC01
      B007Z37 Remove in this Direction (1)
      B007YXL Remove in this Direction (2)

      Disengage the 6 claws and 3 guides as indicated by the arrows, in the order shown in the illustration to remove the No. 2 seatback board sub-assembly LH.

  9. REMOVE REAR SEAT CUSHION CARPET (for LH Side)


    1. B005PE6

      Disengage the claw and remove the rear seat cushion carpet.

  10. REMOVE REAR NO. 2 SEAT RECLINING COVER LH


    1. B005LYD

      Disengage the 2 clips.

    2. B005O5F

      Remove the 2 screws.

    3. B005NCQC01
      B007Z37 Remove in this Direction

      Disengage the 3 claws and 3 guides to remove the rear No. 2 seat reclining cover LH as shown in the illustration.

  11. REMOVE NO. 2 REAR SEAT RECLINING COVER LH


    1. B005PY6

      Remove the screw and No. 2 rear seat reclining cover LH.

  12. REMOVE REAR NO. 2 SEAT OUTER RECLINING COVER LH


    1. B005N6CC01
      B007Z37 Remove in this Direction (1)
      B007YXL Remove in this Direction (2)

      Disengage the 5 claws and 5 guides as indicated by the arrows, in the order shown in the illustration to remove the rear No. 2 seat outer reclining cover LH.

  13. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD LH


    1. B005OA9

      Disengage the guide to disconnect the rubber band.

    2. B005NCN

      Disengage the clamp.

    3. B005MI1

      Disengage the 5 hooks.

    4. B005LHZ

      Disengage the 2 hooks.

    5. B005LFO

      Disengage the hook.

    6. B005Q83

      Remove the clip and separate type rear seat cushion cover with pad LH.

  14. REMOVE NO. 2 SEAT CUSHION COVER SUB-ASSEMBLY LH


    1. B005PMA

      Remove the hog ring.

    2. B005Q65

      Remove the 8 hog rings.

    3. B005Q23C01
      B007Z37 Remove in this Direction

      Remove the No. 2 seat cushion cover sub-assembly LH as shown in the illustration.

  15. REMOVE SEAT COVER WIRE (for LH Side)


    1. B005LHE

      Remove the 3 seat cover wires.

  16. REMOVE OUTER REAR SEAT CUSHION EDGE PROTECTOR LH


    1. B005LCT

      Remove the outer rear seat cushion edge protector LH.

  17. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD LH


    1. B005OQPC03
      B007ZL6 Fastener

      Disengage the 2 fasteners.

    2. B005MQ5

      Disengage the 2 hooks.

    3. B005NER

      Disengage the 2 hooks.

    4. B005OBN

      Disengage the 4 claws and remove the 2 rear No. 2 seat headrest support assemblies.

    5. B005L74

      Disengage the 7 hooks and remove the separate type rear seatback cover with pad LH.

  18. REMOVE NO. 2 SEATBACK COVER SUB-ASSEMBLY LH


    1. B005NJF

      Remove the 4 hog rings.

    2. B005MK4

      Remove the 8 hog rings and No. 2 seatback cover sub-assembly LH from the No. 2 seatback pad LH.

  19. REMOVE SEAT COVER WIRE (for LH Side)


    1. B005QFK

      Remove the 4 seat cover wires.

  20. REMOVE SEATBACK FELT LH


    1. B005O1JC01
      B007Z37 Remove in this Direction (1)
      B007YXL Remove in this Direction (2)

      Disengage the 5 hooks as indicated by the arrows, in the order shown in the illustration to remove the seatback felt LH.

  21. REMOVE NO. 3 REAR SEAT PROTECTOR LH


    1. B005ODH

      Remove the No. 3 rear seat protector LH.

  22. REMOVE REAR NO. 2 SEAT RECLINING ADJUSTER INSIDE COVER (for LH Side)


    1. B005OBZ

      Disengage the claw and guide to remove the rear No. 2 seat reclining adjuster inside cover.

  23. REMOVE RECLINING ADJUSTER INSIDE COVER LH


    1. B005N0KC01
      B007Z37 Remove in this Direction (1)
      B007YXL Remove in this Direction (2)

      Disengage the claw and 3 guides as indicated by the arrows, in the order shown in the illustration to remove the reclining adjuster inside cover LH.

  24. REMOVE REAR SEATBACK PROTECTOR (for LH Side)


    1. B005P17

      Remove the 2 nuts and rear seatback protector.

  25. REMOVE REAR NO. 2 SEAT WIRE LH


    1. B005PCC

      Disconnect the 4 connectors.

    2. Disengage the 2 clamps and remove the rear No. 2 seat wire LH.

  26. REMOVE FOLD SEAT CONTROL ECU (for LH Side)


    1. B005OFC

      Disengage the 2 guides to remove the fold seat control ECU.

  27. REMOVE NO. 2 SEATBACK FRAME SUB-ASSEMBLY LH


    1. B005O32C01
      B007Z37 Remove in this Direction

      Remove the 4 bolts and No. 2 seatback frame sub-assembly LH from the No. 2 seat cushion frame sub-assembly LH as shown in the illustration.

  28. REMOVE NO. 3 SEAT NO. 1 LEG COVER (for RH Side)


    1. B005L1IC01
      B007ZL6 Fastener

      Disengage the 4 fasteners.

    2. B005MV9

      Disengage the 4 clips and remove the No. 3 seat No. 1 leg cover.

  29. REMOVE REAR NO. 2 SEAT WIRE RH


    1. B005QA7

      w/o Seat Belt Warning System:


      1. Disconnect the connector.

      2. Disengage the 4 clamps and remove the rear No. 2 seat wire RH.

    2. B005OE6

      w/ Seat Belt Warning System:


      1. Disconnect the 2 connectors.

      2. Disengage the 4 clamps and remove the rear No. 2 seat wire RH.

  30. REMOVE REAR NO. 2 SEAT INNER BELT ASSEMBLY RH

    Click here

  31. REMOVE REAR NO. 2 SEAT ASSEMBLY RH


    1. B005OIN

      Remove the 8 nuts and rear No. 2 seat assembly RH.

  32. REMOVE ROPE HOOK ASSEMBLY (for RH Side)

    Tech Tips

    Use the same procedure as for the LH side.

  33. REMOVE NO. 2 SEATBACK BOARD SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  34. REMOVE REAR SEAT CUSHION CARPET (for RH Side)

    Tech Tips

    Use the same procedure as for the LH side.

  35. REMOVE REAR NO. 2 SEAT RECLINING COVER RH

    Tech Tips

    Use the same procedure as for the LH side.

  36. REMOVE NO. 2 REAR SEAT RECLINING COVER RH

    Tech Tips

    Use the same procedure as for the LH side.

  37. REMOVE REAR NO. 2 SEAT OUTER RECLINING COVER RH

    Tech Tips

    Use the same procedure as for the LH side.

  38. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD RH

    Tech Tips

    Use the same procedure as for the LH side.

  39. REMOVE NO. 2 SEAT CUSHION COVER SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  40. REMOVE SEAT COVER WIRE (for RH Side)

    Tech Tips

    Use the same procedure as for the LH side.

  41. REMOVE OUTER REAR SEAT CUSHION EDGE PROTECTOR RH

    Tech Tips

    Use the same procedure as for the LH side.

  42. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD RH

    Tech Tips

    Use the same procedure as for the LH side.

  43. REMOVE NO. 2 SEATBACK COVER SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  44. REMOVE SEAT COVER WIRE (for RH Side)

    Tech Tips

    Use the same procedure as for the LH side.

  45. REMOVE NO. 3 REAR SEAT PROTECTOR RH

    Tech Tips

    Use the same procedure as for the LH side.

  46. REMOVE REAR NO. 2 SEAT RECLINING ADJUSTER INSIDE COVER (for RH Side)

    Tech Tips

    Use the same procedure as for the LH side.

  47. REMOVE RECLINING ADJUSTER INSIDE COVER RH

    Tech Tips

    Use the same procedure as for the LH side.

  48. REMOVE REAR SEATBACK PROTECTOR (for RH Side)


    1. B005QAT

      Remove the 2 nuts and rear seatback protector.

  49. REMOVE REAR NO. 2 SEAT WIRE RH


    1. B005M3I

      Disconnect the 4 connectors.

    2. Disengage the 2 clamps and remove the rear No. 2 seat wire RH.

  50. REMOVE FOLD SEAT CONTROL ECU (for RH Side)


    1. B005NE6

      Disengage the 2 guides to remove the fold seat control ECU.

  51. REMOVE NO. 2 SEATBACK FRAME SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  52. REMOVE REAR SEAT INNER BELT COVER LH


    1. B005MR7

      Remove the clip.

    2. B005MX7

      Disengage the claw to remove the rear seat inner belt cover LH.

  53. REMOVE REAR SEAT INNER BELT COVER RH

    Tech Tips

    Use the same procedure as for the LH side.
