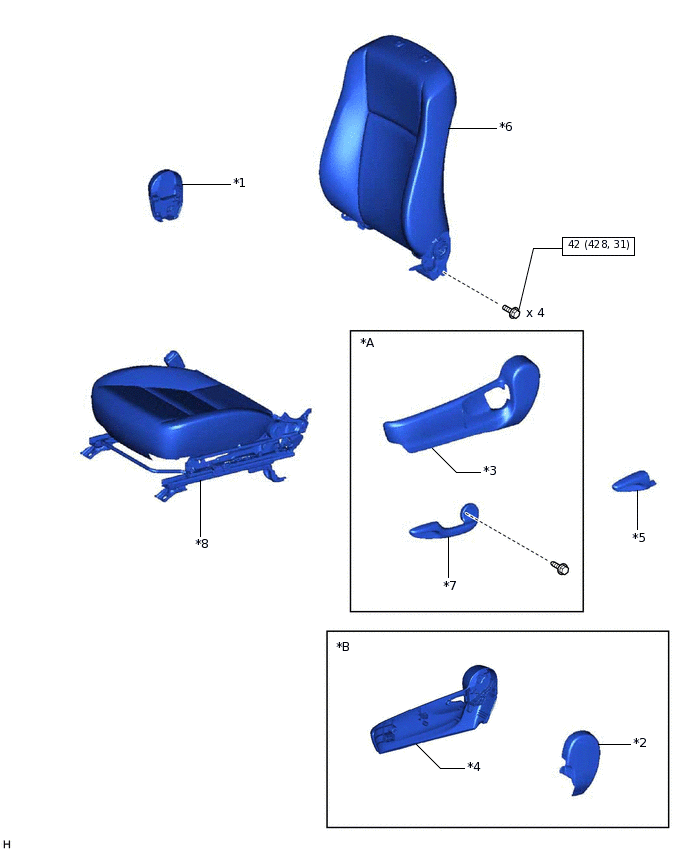

FRONT SEATBACK HEATER(for Manual Seat) COMPONENTS

*A	for Driver Side	*B	for Front Passenger Side
*1	FRONT INNER SEAT CUSHION SHIELD LH	*2	FRONT INNER SEAT CUSHION SHIELD RH
*3	FRONT SEAT CUSHION SHIELD LH	*4	FRONT SEAT CUSHION SHIELD RH
*5	RECLINING ADJUSTER RELEASE HANDLE LH	*6	SEPARATE TYPE FRONT SEATBACK ASSEMBLY
*7	VERTICAL ADJUSTING HANDLE LH	*8	SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

*A

for Driver Side

*B

for Front Passenger Side

*1

FRONT INNER SEAT CUSHION SHIELD LH

*2

FRONT INNER SEAT CUSHION SHIELD RH

*3

FRONT SEAT CUSHION SHIELD LH

*4

FRONT SEAT CUSHION SHIELD RH

*5

RECLINING ADJUSTER RELEASE HANDLE LH

*6

SEPARATE TYPE FRONT SEATBACK ASSEMBLY

*7

VERTICAL ADJUSTING HANDLE LH

*8

SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

-

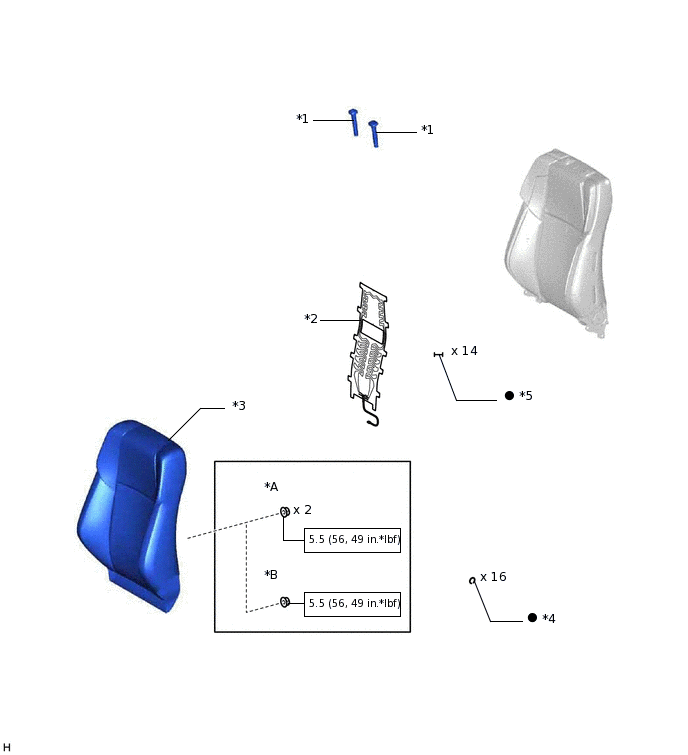

*A	for Dual Type	*B	for Single Type
*1	FRONT SEAT HEADREST SUPPORT	*2	FRONT SEATBACK HEATER ASSEMBLY LH
*3	SEPARATE TYPE FRONT SEATBACK COVER	*4	HOG RING
*5	TACK PIN	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part
