ROOM LIGHT BULB REPLACEMENT

PROCEDURE

  1. REMOVE DOME FUSE

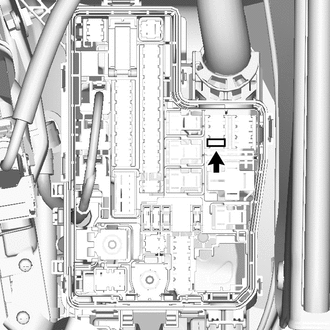

    1. E341514

      Remove the dome fuse.

  2. REMOVE NO. 1 ROOM LIGHT BULB

    1. E257054

      Detach the 4 claws and remove the No. 1 room light lens.

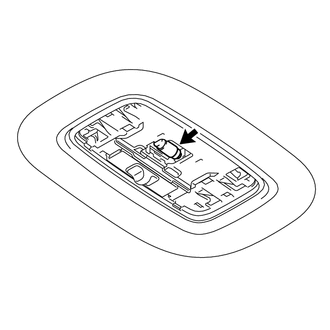

    2. E341513

      Remove the No. 1 room light bulb.

  3. INSTALL NO. 1 ROOM LIGHT BULB

    1. E341513

      Install the No. 1 room light bulb.

    2. E257054

      Attach the 4 claws to install the No. 1 room light lens.

  4. INSTALL DOME FUSE

    1. E341514

      Install the dome fuse.
