PANORAMIC VIEW MONITOR SYSTEM, Diagnostic DTC:C1625

DTC Code DTC Name
C1625 Open or Short in Steering Angle Sensor +B

DESCRIPTION

This DTC is stored if the parking assist ECU receives a signal via CAN communication from the spiral with sensor cable sub-assembly that indicates a power supply system problem.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

C1625

Open or Short in Steering Angle Sensor +B

Open or short in steering angle sensor +B

  • Harness or connector

  • Spiral with sensor cable sub-assembly

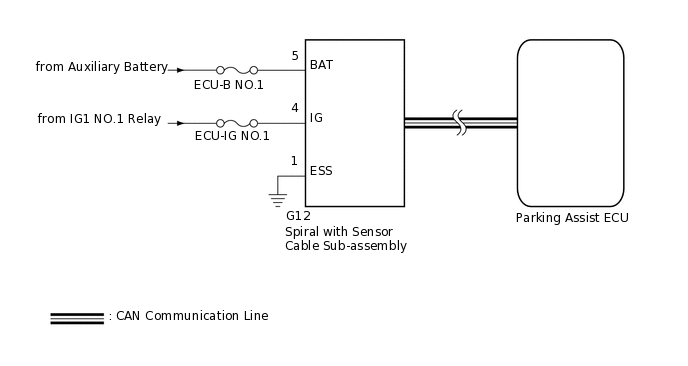

WIRING DIAGRAM

E224380E75

CAUTION / NOTICE / HINT

Note:

  • Since the panoramic view monitor system has functions that use the CAN communication system, first confirm that there is no malfunction in the communication system by inspecting the CAN communication functions in accordance with the "How to Proceed with Troubleshooting" procedures. Then, conduct the following inspection procedure.

  • When "!" mark is displayed on the multi-display after the cable is disconnected from the negative (-) auxiliary battery terminal, correct the steering angle neutral point.

    Click here

  • Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the panoramic view monitor system may be needed.

    Click here

  • Inspect the fuses for circuits related to this system before performing the following inspection procedure.

  • The vehicle is equipped with a Supplemental Restraint System (SRS) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precaution for Supplemental Restraint System.

    Click here

PROCEDURE

  1. CHECK HARNESS AND CONNECTOR (SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY - BATTERY AND BODY GROUND)

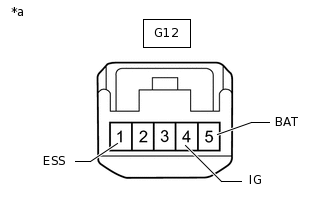

    1. B106249C27

      *a

      Front view of wire harness connector

      (to Spiral with Sensor Cable Sub-assembly)

      Disconnect the spiral with sensor cable sub-assembly connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      G12-1 (ESS) - Body ground

      Always

      Below 1 Ω

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection

      Switch Condition

      Specified Condition

      G12-4 (IG) - G12-1 (ESS)

      Power switch on (IG)

      11 to 14 V

      G12-5 (BAT) - G12-1 (ESS)

      Power switch off

      11 to 14 V

    Result

    Result

    Proceed to

    OK (for Single Type)

    A

    OK (for Dual Type)

    B

    NG

    C
    A

    REPLACE SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY

    Click here

    B

    REPLACE SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY

    Click here

    C

    REPAIR OR REPLACE HARNESS OR CONNECTOR
