SHIFT AND SELECT LEVER SHAFT DISASSEMBLY

PROCEDURE

1. REMOVE SELECTING BELLCRANK ASSEMBLY

   1.

      Remove the 2 bolts and selecting bellcrank from the manual transmission case.

2. REMOVE CONTROL SHIFT LEVER BUSHING

   1.

      Remove the control shift lever bushing from the selecting bellcrank.

3. REMOVE NO. 1 SELECTING BELLCRANK DUST COVER

   1.

      Remove the No. 1 selecting bellcrank dust cover from the selecting bellcrank.

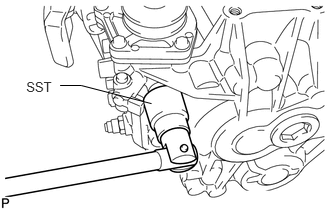

4. REMOVE BACK-UP LIGHT SWITCH ASSEMBLY

   1.

      Using SST, remove the back-up light switch and gasket.

      09816-30010

5. REMOVE NO. 1 LOCK BALL ASSEMBLY

   1.

      Remove the No. 1 lock ball from the manual transmission case.

6. REMOVE NEUTRAL POSITION SWITCH (w/ Stop And Start System)

   Click here

7. REMOVE NO. 2 LOCK BALL ASSEMBLY

   1.

      Remove the No. 2 lock ball from the manual transmission case.

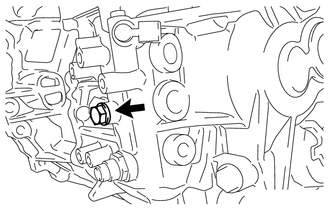

8. REMOVE SHIFT GATE PIN

   1.

      Remove the shift gate pin from the manual transmission case.

9. REMOVE SHIFT AND SELECT LEVER ASSEMBLY

   1.

      Remove the 4 bolts and shift and select lever assembly from the manual transmission case.

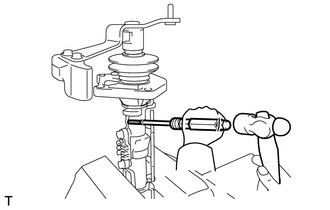

10. REMOVE INNER NO. 1 SHIFT LEVER

    1.

       Using a 5 mm pin punch and hammer, remove the slotted spring pin from the inner No. 1 shift lever.

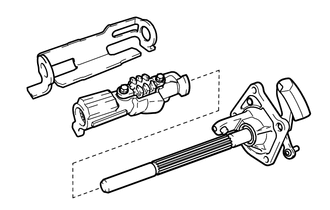

    2.

       Remove the inner No. 1 shift lever and shift interlock plate from the shift and select lever shaft.

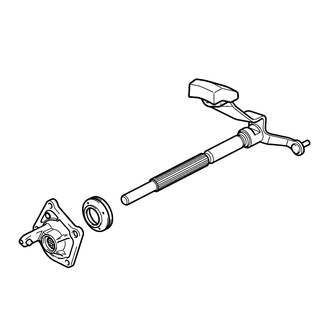

11. REMOVE SHIFT AND SELECT LEVER SHAFT

    1.

       Remove the control shaft cover and shift and select lever boot from the shift and select lever shaft.

12. REMOVE SHIFT GATE PLATE

    1.

       Remove the 2 bolts and shift gate plate from the inner No. 1 shift lever.

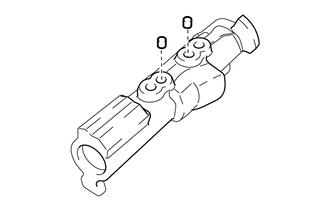

13. REMOVE PIN

    1.

       Remove the 2 pins.

14. REMOVE SHIFT LEVER DAMPER

    1.

       Remove the 2 bolts and shift lever damper from the shift and select lever shaft.

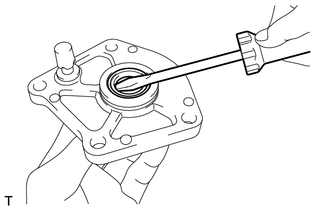

15. REMOVE CONTROL SHAFT COVER OIL SEAL

    1.

       Using a screwdriver, remove the control shaft cover oil seal from the control shaft cover.
