HEATED OXYGEN SENSOR INSTALLATION

CAUTION / NOTICE / HINT

Tip:

Perform "Inspection After Repairs" after replacing the heated oxygen sensor.

w/ Canister Pump Module:

Click here

PROCEDURE

  1. INSTALL HEATED OXYGEN SENSOR

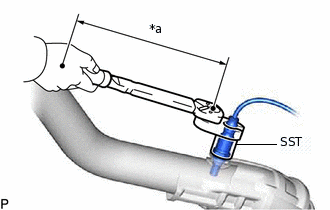

    A369697C01

    *a

    Torque Wrench Fulcrum Length
    Tip:

    Perform "Inspection After Repairs" after replacing the heated oxygen sensor.

    w/ Canister Pump Module:

    Click here

    1. Using SST, install the heated oxygen sensor to the front exhaust pipe assembly.

      09224-00011

      Torque

      Specified tightening torque

      44 N*m (449 kgf*cm, 32 ft.*lbf)

      Note:

      Replace with a new part if it is dropped or if it receives a strong impact.

      Tip:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Click hereClick hereClick hereClick here

      • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)): 37.7 N*m (384 kgf*cm, 28 ft.*lbf)

    2. Connect the heated oxygen sensor connector.

  2. INSTALL FRONT EXHAUST PIPE ASSEMBLY

    Click here

  3. INSPECT FOR EXHAUST GAS LEAK

    Click here
