REAR NO. 2 SEAT ASSEMBLY REASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the seat frame may injure your hands.

PROCEDURE


  1. INSTALL REAR SEAT INNER BELT COVER LH


    1. B005MX7

      Engage the claw.

    2. B005MR7

      Install the rear seat inner belt cover LH with the clip.

  2. INSTALL REAR SEAT INNER BELT COVER RH

    Tech Tips

    Use the same procedure as for the LH side.

  3. INSTALL NO. 2 SEATBACK FRAME SUB-ASSEMBLY LH

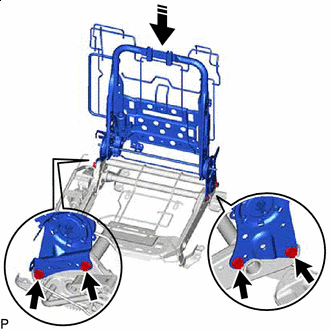

    1. B005QDHC01
      B007Z37 Install in this Direction

      Install the No. 2 seatback frame sub-assembly LH to the No. 2 seat cushion frame sub-assembly LH with the 4 bolts as shown in the illustration.

      Torque:
      29 N*m  { 296 kgf*cm, 21 ft.*lbf }

  4. INSTALL FOLD SEAT CONTROL ECU (for LH Side)


    1. B005OFC

      Engage the 2 guides to install the fold seat control ECU.

  5. INSTALL REAR NO. 2 SEAT WIRE LH


    1. B005PCC

      Engage the 2 clamps to install the rear No. 2 seat wire LH.

    2. Connect the 4 connectors.

  6. INSTALL REAR SEATBACK PROTECTOR (for LH Side)


    1. B005P17

      Install the rear seatback protector with the 2 nuts.

      Torque:
      5.5 N*m  { 56 kgf*cm, 49 in.*lbf }

  7. INSTALL RECLINING ADJUSTER INSIDE COVER LH

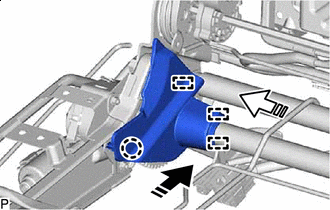

    1. B005NL5C01
      B007Z37 Install in this Direction (1)
      B007YXL Install in this Direction (2)

      Engage the 3 guides and claw as indicated by the arrows, in the order shown in the illustration to install the reclining adjuster inside cover LH.

  8. INSTALL REAR NO. 2 SEAT RECLINING ADJUSTER INSIDE COVER (for LH Side)


    1. B005OBZ

      Engage the guide and claw to install the rear No. 2 seat reclining adjuster inside cover.

  9. INSTALL NO. 3 REAR SEAT PROTECTOR LH


    1. B005ODH

      Install a new No. 3 rear seat protector LH.

  10. INSTALL SEATBACK FELT LH

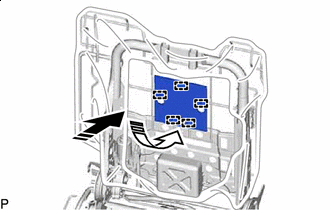

    1. B005MZLC01
      B007Z37 Install in this Direction (1)
      B007YXL Install in this Direction (2)

      Engage the 5 hooks as indicated by the arrows, in the order shown in the illustration to install the seatback felt LH.

  11. INSTALL SEAT COVER WIRE (for LH Side)

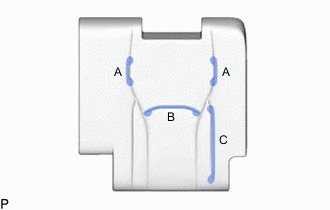

    1. B005QFKN01

      Install the 4 seat cover wires.

      Tech Tips


      • Wire 1000 mm (3.28 ft.) or longer and shaped wires are available as supplied parts.

      • For wires 1000 mm (3.28 ft.) or less in length, cut or shape a 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

      • Make sure to read Precaution before preparing the wire.

        Click here

      Length
      A 130 mm (5.12 in.)
      B 176.5 mm (6.95 in.)
      C 250 mm (9.84 in.)

      Tech Tips

      The dimension shown in the illustration is the length.

      B005NZL

  12. INSTALL NO. 2 SEATBACK COVER SUB-ASSEMBLY LH

    Tech Tips

    When installing a No. 2 seatback cover sub-assembly LH, refer to Precaution in order to prevent wrinkles from forming.

    Click here

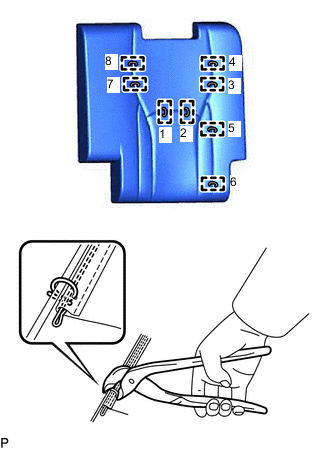

    1. B005LN9N01

      Using hog ring pliers, install 8 new hog rings in the order shown in the illustration.

      Note


      • Be careful not to damage the No. 2 seatback cover sub-assembly LH.

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 2 seatback cover sub-assembly LH.

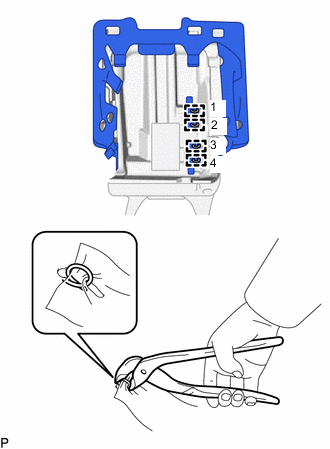

    2. B005OL5N01

      Using hog ring pliers, install the No. 2 seatback cover sub-assembly LH to the No. 2 seatback pad LH with 4 new hog rings in the order shown in the illustration.

      Note


      • Be careful not to damage the No. 2 seatback cover sub-assembly LH.

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 2 seatback cover sub-assembly LH.

  13. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD LH


    1. Temporarily install the separate type rear seatback cover with pad LH to the rear seatback frame sub-assembly LH.

    2. B005L74

      Engage the 7 hooks.

    3. B005OBN

      Engage the 4 claws to install the 2 rear No. 2 seat headrest support assemblies.

    4. B005NER

      Engage the 2 hooks.

    5. B005MQ5

      Engage the 2 hooks.

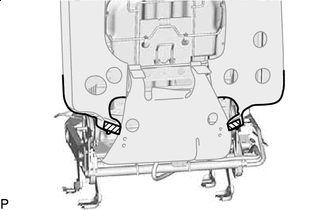

    6. B005OQPC01
      B007ZL6 Fastener

      Engage the 2 fasteners to install the separate type rear seatback cover with pad LH.

  14. INSTALL OUTER REAR SEAT CUSHION EDGE PROTECTOR LH


    1. B005LCT

      Install a new outer rear seat cushion edge protector LH.

  15. INSTALL SEAT COVER WIRE (for LH Side)

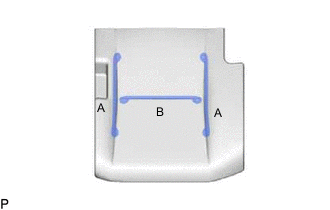

    1. B005LHEN01

      Install the 3 seat cover wires.

      Tech Tips


      • Wire 1000 mm (3.28 ft.) or longer and shaped wires are available as supplied parts.

      • For wires 1000 mm (3.28 ft.) or less in length, cut or shape a 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

      • Make sure to read Precaution before preparing the wire.

        Click here

      Length
      A 210 mm (8.27 in.)
      B 230 mm (9.06 in.)

      Tech Tips

      The dimension shown in the illustration is the length.

      B005NZL

  16. INSTALL NO. 2 SEAT CUSHION COVER SUB-ASSEMBLY LH

    Tech Tips

    When installing a No. 2 seat cushion cover sub-assembly LH, refer to Precaution in order to prevent wrinkles from forming.

    Click here

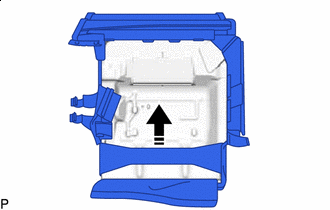

    1. B005OAXC01
      B007Z37 Install in this Direction

      Insert the No. 2 seat cushion cover sub-assembly LH as shown in the illustration.

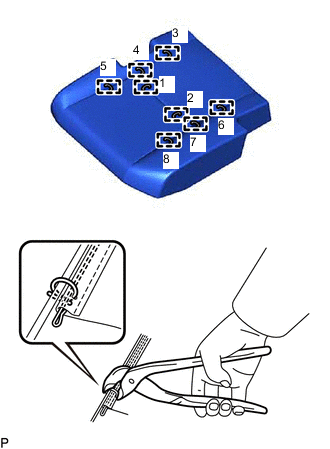

    2. B005PGHN01

      Using hog ring pliers, install 8 new hog rings in the order shown in the illustration.

      Note


      • Be careful not to damage the No. 2 seat cushion cover sub-assembly LH.

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 2 seat cushion cover sub-assembly LH.

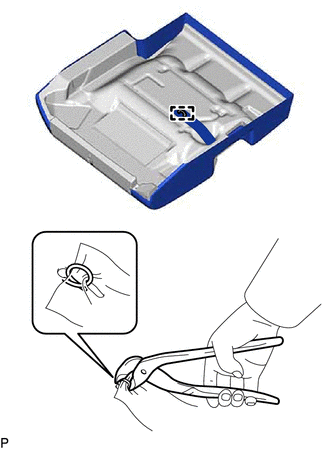

    3. B005QCC

      Using hog ring pliers, install the No. 2 seat cushion cover sub-assembly LH to the No. 2 seat cushion pad LH with a new hog ring as shown in the illustration.

      Note


      • Be careful not to damage the No. 2 seat cushion cover sub-assembly LH.

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 2 seat cushion cover sub-assembly LH.

  17. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD LH


    1. B005MI1

      Engage the 5 hooks.

    2. B005LHZ

      Engage the 2 hooks.

    3. B005Q83

      Install the clip.

    4. B005LFO

      Engage the hook to install the separate type rear seat cushion cover with pad LH.

    5. B005NCN

      Engage the clamp.

    6. B005OA9

      Engage the guide to connect the rubber band.

  18. INSTALL REAR NO. 2 SEAT OUTER RECLINING COVER LH

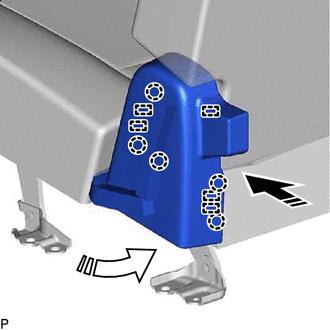

    1. B005OIRC01
      B007Z37 Install in this Direction (1)
      B007YXL Install in this Direction (2)

      Engage the 5 guides and 5 claws as indicated by the arrows, in the order shown in the illustration to install the rear No. 2 seat outer reclining cover LH.

  19. INSTALL NO. 2 REAR SEAT RECLINING COVER LH


    1. B005PY6

      Install the No. 2 rear seat reclining cover LH with the screw.

  20. INSTALL REAR NO. 2 SEAT RECLINING COVER LH

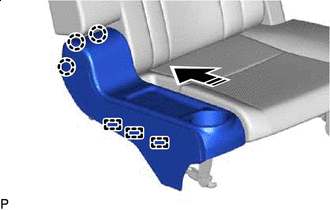

    1. B005LLLC01
      B007Z37 Install in this Direction

      Engage the 3 guides and 3 claws as shown in the illustration.

    2. B005O5F

      Install the 2 screws.

    3. B005LYD

      Engage the 2 clips to install the rear No. 2 seat reclining cover LH.

  21. INSTALL REAR SEAT CUSHION CARPET (for LH Side)


    1. B005PE6

      Engage the claw to install the rear seat cushion carpet.

  22. INSTALL NO. 2 SEATBACK BOARD SUB-ASSEMBLY LH

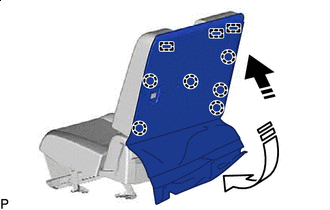

    1. B005NP2C01
      B007Z37 Install in this Direction (1)
      B007YXL Install in this Direction (2)

      Engage the 3 guides and 6 claws as indicated by the arrows, in the order shown in the illustration.

    2. B005LPR

      Engage the 2 clips to install the No. 2 seatback board sub-assembly LH.

  23. INSTALL ROPE HOOK ASSEMBLY (for LH Side)


    1. B005ML7

      Install the rope hook assembly with the bolt.

      Torque:
      6.0 N*m  { 61 kgf*cm, 53 in.*lbf }

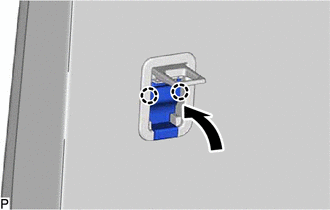

    2. B005N0O

      Engage the 2 claws as shown in the illustration.

  24. INSTALL REAR NO. 2 SEAT ASSEMBLY LH

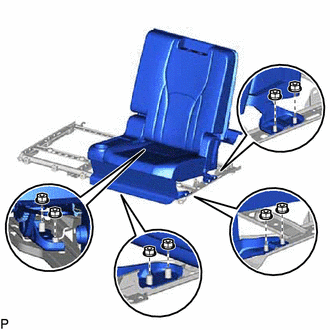

    1. B005MPX

      Install the rear No. 2 seat assembly LH with the 8 nuts.

      Torque:
      25 N*m  { 255 kgf*cm, 18 ft.*lbf }

  25. INSTALL REAR NO. 2 SEAT INNER BELT ASSEMBLY LH

    Click here

  26. INSTALL REAR NO. 2 SEAT WIRE LH


    1. B005L52

      Engage the 4 clamps to install the rear No. 2 seat wire LH.

    2. Connect the connector.

  27. INSTALL NO. 3 SEAT NO. 2 LEG COVER (for LH Side)


    1. B005LY3

      Engage the 2 clips to install the No. 3 seat No. 2 leg cover.

    2. B005M2AC01
      B007ZL6 Fastener

      Engage the 3 fasteners.

  28. INSTALL NO. 2 SEATBACK FRAME SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  29. INSTALL FOLD SEAT CONTROL ECU (for RH Side)


    1. B005NE6

      Engage the 2 guides to install the fold seat control ECU.

  30. INSTALL REAR NO. 2 SEAT WIRE RH


    1. B005M3I

      Engage the 2 clamps to install the rear No. 2 seat wire RH.

    2. Connect the 4 connectors.

  31. INSTALL REAR SEATBACK PROTECTOR (for RH Side)


    1. B005QAT

      Install the rear seatback protector with the 2 nuts.

      Torque:
      5.5 N*m  { 56 kgf*cm, 49 in.*lbf }

  32. INSTALL RECLINING ADJUSTER INSIDE COVER RH

    Tech Tips

    Use the same procedure as for the LH side.

  33. INSTALL REAR NO. 2 SEAT RECLINING ADJUSTER INSIDE COVER (for RH Side)

    Tech Tips

    Use the same procedure as for the LH side.

  34. INSTALL NO. 3 REAR SEAT PROTECTOR RH

    Tech Tips

    Use the same procedure as for the LH side.

  35. INSTALL SEAT COVER WIRE (for RH Side)

    Tech Tips

    Use the same procedure as for the LH side.

  36. INSTALL NO. 2 SEATBACK COVER SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  37. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD RH

    Tech Tips

    Use the same procedure as for the LH side.

  38. INSTALL OUTER REAR SEAT CUSHION EDGE PROTECTOR RH

    Tech Tips

    Use the same procedure as for the LH side.

  39. INSTALL SEAT COVER WIRE (for RH Side)

    Tech Tips

    Use the same procedure as for the LH side.

  40. INSTALL NO. 2 SEAT CUSHION COVER SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  41. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD RH

    Tech Tips

    Use the same procedure as for the LH side.

  42. INSTALL REAR NO. 2 SEAT OUTER RECLINING COVER RH

    Tech Tips

    Use the same procedure as for the LH side.

  43. INSTALL NO. 2 REAR SEAT RECLINING COVER RH

    Tech Tips

    Use the same procedure as for the LH side.

  44. INSTALL REAR NO. 2 SEAT RECLINING COVER RH

    Tech Tips

    Use the same procedure as for the LH side.

  45. INSTALL REAR SEAT CUSHION CARPET (for RH Side)

    Tech Tips

    Use the same procedure as for the LH side.

  46. INSTALL NO. 2 SEATBACK BOARD SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  47. INSTALL ROPE HOOK ASSEMBLY (for RH Side)

    Tech Tips

    Use the same procedure as for the LH side.

  48. INSTALL REAR NO. 2 SEAT ASSEMBLY RH

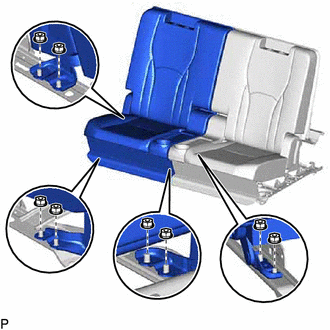

    1. B005QGD

      Install the rear No. 2 seat assembly RH with the 8 nuts.

      Torque:
      25 N*m  { 255 kgf*cm, 18 ft.*lbf }

  49. INSTALL REAR NO. 2 SEAT INNER BELT ASSEMBLY RH

    Click here

  50. INSTALL REAR NO. 2 SEAT WIRE RH


    1. B005QA7

      w/o Seat Belt Warning System:


      1. Engage the 4 clamps to install the rear No. 2 seat wire RH.

      2. Connect the connector.

    2. B005OE6

      w/ Seat Belt Warning System:


      1. Engage the 4 clamps to install the rear No. 2 seat wire RH.

      2. Connect the 2 connectors.

  51. INSTALL NO. 3 SEAT NO. 1 LEG COVER (for RH Side)


    1. B005MV9

      Engage the 4 clips to install the No. 3 seat No. 1 leg cover.

    2. B005L1IC01
      B007ZL6 Fastener

      Engage the 4 fasteners.

  52. INSTALL REAR SEAT HEADREST ASSEMBLY


    1. Install the 2 rear seat headrest assemblies.

  53. INSTALL SEAT ADJUSTER COVER CAP


    1. B005LRF

      Install the 2 seat adjuster cover caps.
