WASHER NOZZLE(for Front) ON-VEHICLE INSPECTION

PROCEDURE

  1. INSPECT WASHER NOZZLE SUB-ASSEMBLY

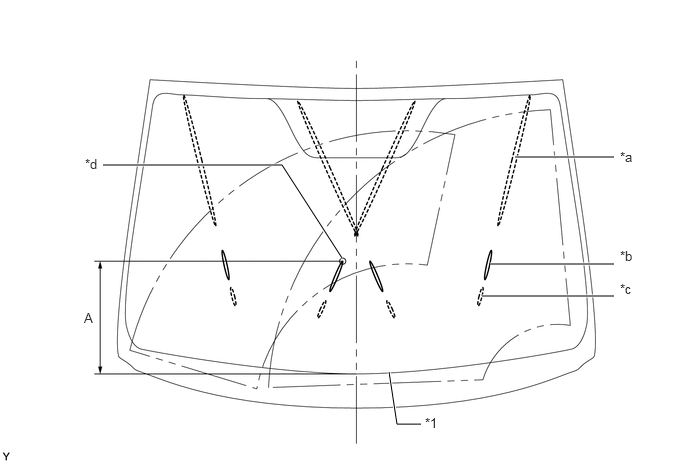

    1. With the engine running, check that the center stream of washer fluid sprays on the windshield within the hatched area shown in the illustration.

      OK

      Washer fluid hits the windshield in the area shown in the illustration.

      If the result is not as specified, replace the washer nozzle.

      B309402E02

      Standard

      Area

      Specified Condition

      Area

      Specified Condition

      A

      450 mm (17.7 in.)

      -

      -
      Table 1. Text in Illustration

      *1

      Ceramic Edge

      -

      -

      *a

      Upper Limit

      *b

      Standard

      *c

      Lower Limit

      *d

      Top of Washer Fluid Spray Area
