ROOF RACK REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE FRONT ROOF RACK LEG COVER LH

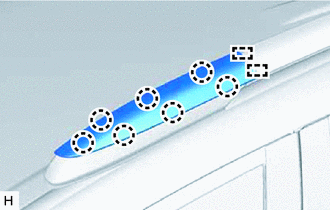

    1. B338473

      Detach the 7 claws and 2 guides and remove the front roof rack leg cover LH.

  2. REMOVE FRONT ROOF RACK LOWER COVER LH

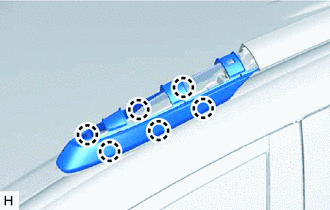

    1. B338474

      Detach the 6 claws and remove the front roof rack lower cover LH.

  3. REMOVE REAR ROOF RACK LEG COVER LH

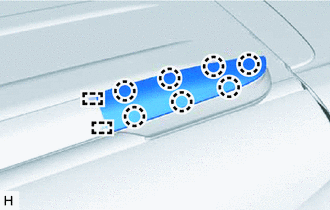

    1. B338475

      Detach the 7 claws and 2 guides and remove the rear roof rack leg cover LH.

  4. REMOVE REAR ROOF RACK LOWER COVER LH

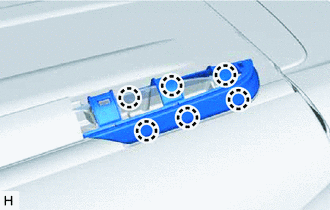

    1. B338476

      Detach the 6 claws and remove the rear roof rack lower cover LH.

  5. REMOVE ROOF RACK ASSEMBLY LH

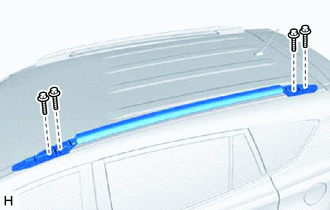

    1. B338477

      Remove the 4 bolts and roof rack assembly LH.

  6. REMOVE FRONT ROOF RACK LEG CUSHION LH

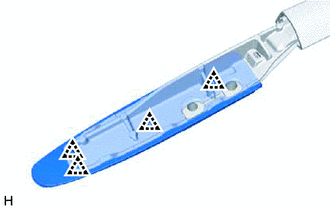

    1. B338478

      Detach the 4 clips and remove the front roof rack leg cushion LH.

    2. Remove the 2 No. 2 roof carrier seals.

  7. REMOVE REAR ROOF RACK LEG CUSHION LH

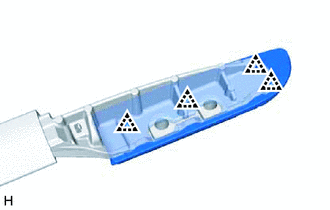

    1. B338479

      Detach the 4 clips and remove the rear roof rack leg cushion LH.

    2. Remove the 2 No. 2 roof carrier seals.

  8. REMOVE NO. 2 ROOF RACK END COVER

    Tip:

    Use the same procedure for all No. 2 roof rack end covers.

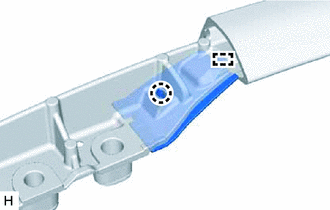

    1. B338480

      Detach the claw and guide and remove the No. 2 roof rack end cover.
