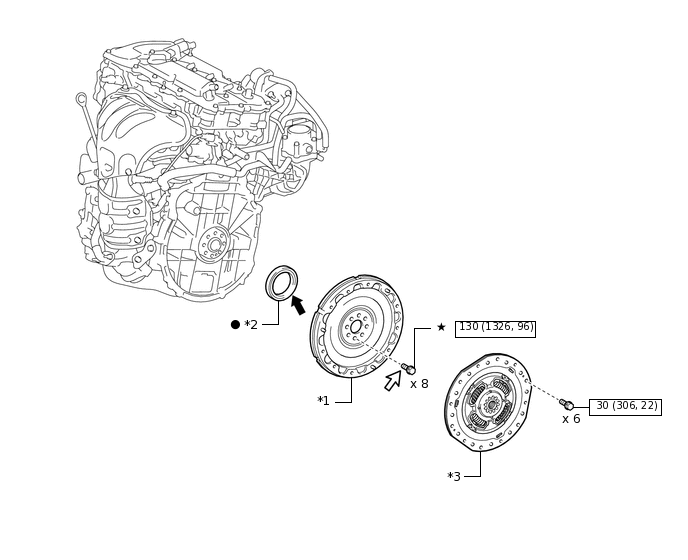

REAR CRANKSHAFT OIL SEAL COMPONENTS

*1	FLYWHEEL SUB-ASSEMBLY	*2	REAR ENGINE OIL SEAL
*3	TRANSMISSION INPUT DAMPER ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part
	MP grease		Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
★	Precoated part	-	-

*1

FLYWHEEL SUB-ASSEMBLY

*2

REAR ENGINE OIL SEAL

*3

TRANSMISSION INPUT DAMPER ASSEMBLY

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

MP grease

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

★

Precoated part

-
