FRONT DRIVE SHAFT ASSEMBLY COMPONENTS
ILLUSTRATION
*1 |
NO. 1 ENGINE UNDER COVER |
*2 |
REAR ENGINE UNDER COVER LH |
*3 |
REAR ENGINE UNDER COVER RH |
- |
- |
ILLUSTRATION
*1 |
FRONT AXLE ASSEMBLY LH |
*2 |
FRONT AXLE SHAFT NUT LH |
*3 |
FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH |
*4 |
FRONT SPEED SENSOR LH |
*5 |
FRONT STABILIZER LINK ASSEMBLY LH |
*6 |
FRONT FLEXIBLE HOSE |
*7 |
FRONT DRIVE SHAFT ASSEMBLY LH |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
MP grease |
 |
Do not apply lubricants to the threaded parts |
ILLUSTRATION
*1 |
FRONT DRIVE SHAFT ASSEMBLY LH |
*2 |
FRONT DRIVE SHAFT ASSEMBLY RH |
*3 |
FRONT DRIVE SHAFT HOLE SNAP RING LH |
*4 |
DRIVE SHAFT BEARING BRACKET HOLE SNAP RING |
*5 |
FRONT DRIVE SHAFT OIL SEAL LH |
*6 |
FRONT DRIVE SHAFT OIL SEAL RH |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
|
MP grease |
 |
Toyota Genuine ATF WS |
ILLUSTRATION
*A |
for LH Side |
- |
- |
*1 |
FRONT AXLE INBOARD JOINT BOOT |
*2 |
FRONT AXLE INBOARD JOINT BOOT CLAMP LH |
*3 |
FRONT AXLE OUTBOARD JOINT BOOT |
*4 |
FRONT AXLE OUTBOARD JOINT BOOT CLAMP LH |
*5 |
FRONT DRIVE INBOARD JOINT ASSEMBLY LH |
*6 |
FRONT DRIVE SHAFT DAMPER CLAMP LH |
*7 |
FRONT DRIVE SHAFT DAMPER LH |
*8 |
FRONT DRIVE SHAFT DUST COVER LH |
*9 |
FRONT NO. 2 AXLE INBOARD JOINT BOOT CLAMP LH |
*10 |
FRONT NO. 2 AXLE OUTBOARD JOINT BOOT CLAMP LH |
*11 |
SHAFT SNAP RING |
*12 |
TRIPOD JOINT |
*13 |
FRONT DRIVE OUTBOARD JOINT SHAFT ASSEMBLY LH |
- |
- |
● |
Non-reusable part |
- |
- |

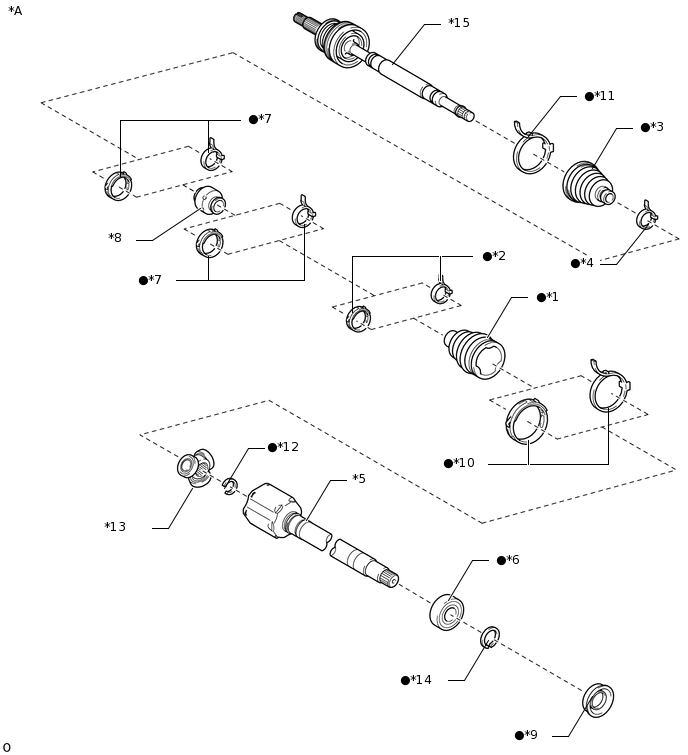

ILLUSTRATION
*A |
for RH Side |
- |
- |
*1 |
FRONT AXLE INBOARD JOINT BOOT |
*2 |
FRONT AXLE INBOARD JOINT BOOT CLAMP RH |
*3 |
FRONT AXLE OUTBOARD JOINT BOOT |
*4 |
FRONT AXLE OUTBOARD JOINT BOOT CLAMP RH |
*5 |
FRONT DRIVE INBOARD JOINT ASSEMBLY RH |
*6 |
FRONT DRIVE SHAFT BEARING |
*7 |
FRONT DRIVE SHAFT DAMPER CLAMP RH |
*8 |
FRONT DRIVE SHAFT DAMPER RH |
*9 |
FRONT DRIVE SHAFT DUST COVER RH |
*10 |
FRONT NO. 2 AXLE INBOARD JOINT BOOT CLAMP RH |
*11 |
FRONT NO. 2 AXLE OUTBOARD JOINT BOOT CLAMP RH |
*12 |
SHAFT SNAP RING |
*13 |
TRIPOD JOINT |
*14 |
SNAP RING |
*15 |
FRONT DRIVE OUTBOARD JOINT SHAFT ASSEMBLY LH |
- |
- |
● |
Non-reusable part |
- |
- |
