AIR CONDITIONING SYSTEM

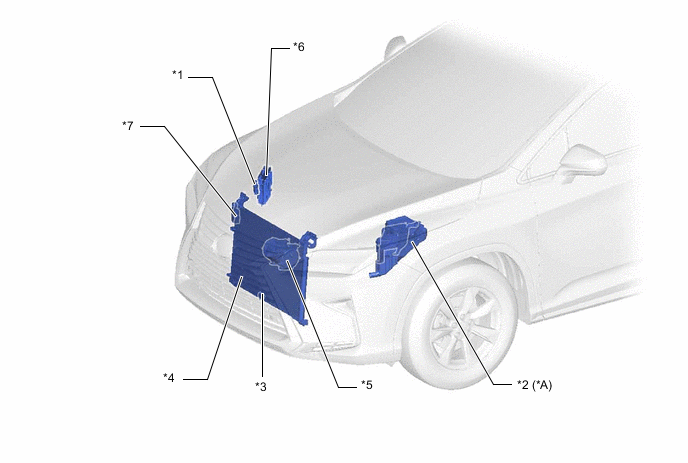

| *A | Models with 2GR-FKS Engine | *B | Models with 8AR-FTS Engine |
| *C | Models with PTC Heater | - | - |
| *1 | AIR CONDITIONING PRESSURE SENSOR | *2 | ENGINE ROOM RELAY BLOCK
|
| *3 | AMBIENT TEMPERATURE SENSOR (THERMISTOR ASSEMBLY) | *4 | COOLER CONDENSER ASSEMBLY |
| *5 | COMPRESSOR WITH PULLEY ASSEMBLY | *6 | ECM |
| *7 | SMOG VENTILATION SENSOR | - | - |

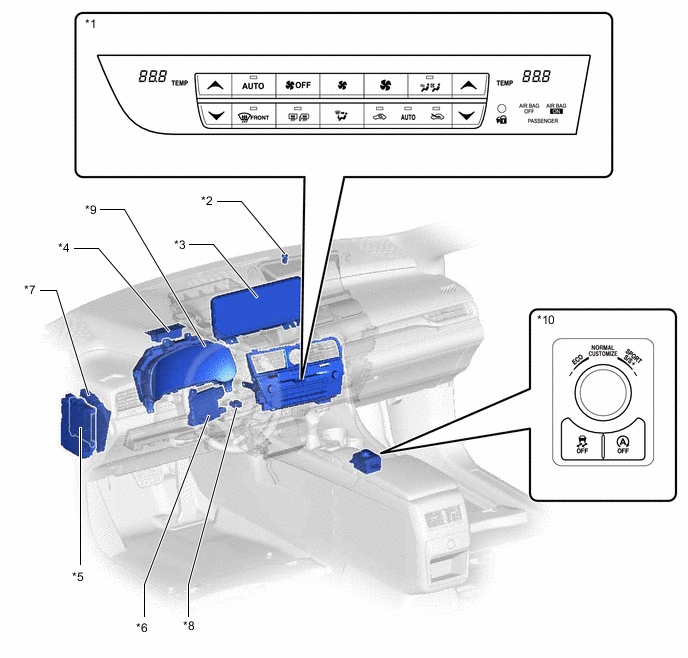

Figure 1. LHD Models
| *1 | RADIO RECEIVER ASSEMBLY (AIR CONDITIONING CONTROL ASSEMBLY) | *2 | SOLAR SENSOR (AUTOMATIC LIGHT CONTROL SENSOR) |
| *3 | MULTI-DISPLAY ASSEMBLY | *4 | ION GENERATOR SUB-ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *7 | ENGINE STOP AND START ECU | *8 | COOLER (ROOM TEMPERATURE SENSOR) THERMISTOR ASSEMBLY |
| *9 | COMBINATION METER ASSEMBLY | *10 | COMBINATION SWITCH ASSEMBLY
|

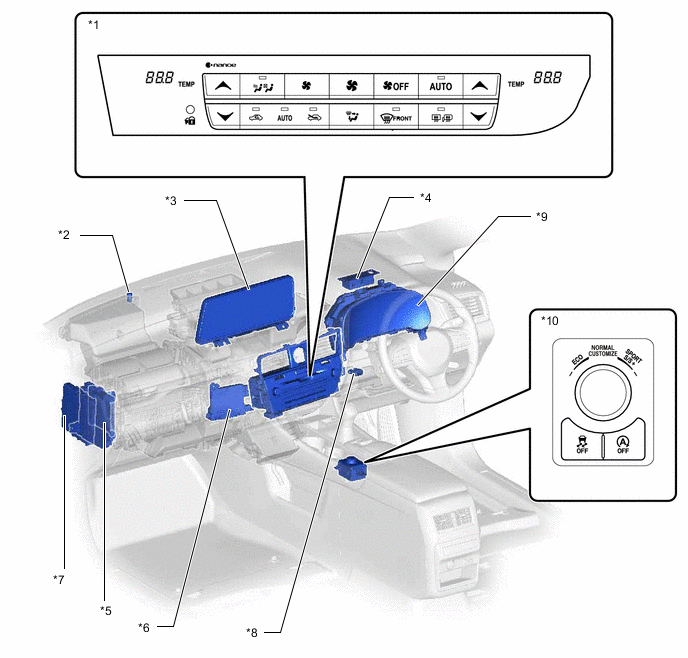

Figure 2. RHD Models
| *1 | RADIO RECEIVER ASSEMBLY (AIR CONDITIONING CONTROL ASSEMBLY) | *2 | SOLAR SENSOR (AUTOMATIC LIGHT CONTROL SENSOR) |
| *3 | MULTI-DISPLAY ASSEMBLY | *4 | ION GENERATOR SUB-ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *7 | ENGINE STOP AND START ECU | *8 | COOLER (ROOM TEMPERATURE SENSOR) THERMISTOR ASSEMBLY |
| *9 | COMBINATION METER ASSEMBLY | *10 | COMBINATION SWITCH ASSEMBLY
|

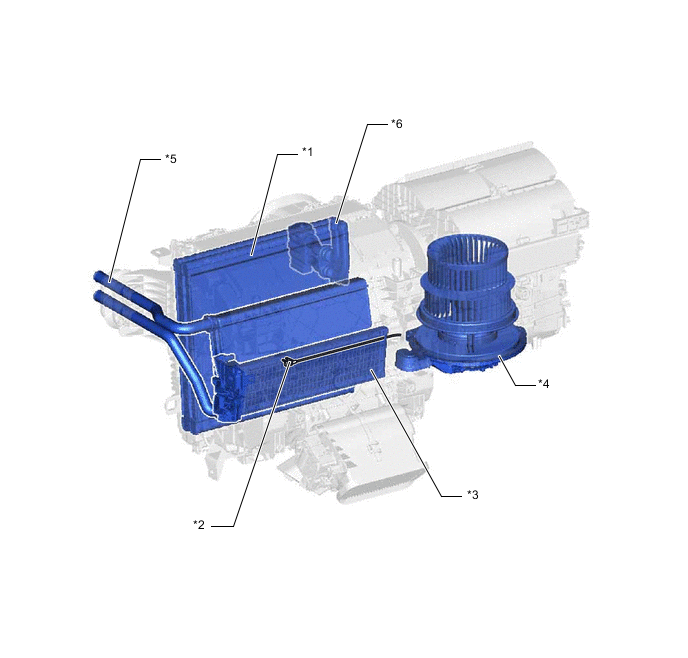

Figure 3. LHD Models
| *A | Models with Quick Heater Assembly | - | - |
| *1 | NO.1 COOLER EVAPORATOR SUB-ASSEMBLY | *2 | NO. 1 COOLER THERMISTOR |
| *3 | PTC HEATER (QUICK HEATER ASSEMBLY) | *4 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY |
| *5 | HEATER RADIATOR UNIT SUB-ASSEMBLY | *6 | COOLER EXPANSION VALVE |
Figure 4. RHD Models
| *A | Models with Quick Heater Assembly | - | - |
| *1 | NO.1 COOLER EVAPORATOR SUB-ASSEMBLY | *2 | NO. 1 COOLER THERMISTOR |
| *3 | PTC HEATER (QUICK HEATER ASSEMBLY) | *4 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY |
| *5 | HEATER RADIATOR UNIT SUB-ASSEMBLY | *6 | COOLER EXPANSION VALVE |
Figure 5. LHD Models
| *1 | NO.1 BLOWER DAMPER SERVO SUB-ASSEMBLY (FRESH/RECIRCULATION DAMPER) | *2 | NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (FOR PASSENGER MODE DOOR) |
| *3 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY
|
*4 | NO. 3 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (FOR REAR MODE DOOR) |
Figure 6. RHD Models
| *1 | NO.1 BLOWER DAMPER SERVO SUB-ASSEMBLY (FRESH/RECIRCULATION DAMPER) | *2 | NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (FOR PASSENGER MODE DOOR) |
| *3 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY
|
*4 | NO. 3 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (FOR REAR MODE DOOR) |
