FRONT CRANKSHAFT OIL SEAL REMOVAL

PROCEDURE

1. REMOVE NO. 1 ENGINE UNDER COVER

   Click here

2. REMOVE FAN AND GENERATOR V BELT

   Click here

3. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT RH

   Click here

4. REMOVE CRANKSHAFT PULLEY

   Click here

5. REMOVE TIMING CHAIN COVER OIL SEAL

   1.

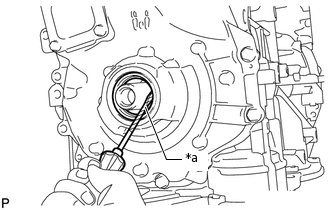

      *a	Protective Tape

      Using a screwdriver, pry out the timing chain cover oil seal.

      Note:

      Do not damage the surface of the timing chain cover oil seal press fit hole or the crankshaft.

      Tip:

      Tape the screwdriver tip before use.
