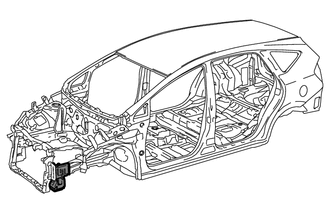

FRONT SIDE MEMBER CUT AND JOIN REPLACEMENT SECTIONS (SMALL AREAS)



  1. REMOVAL

    Symbol meaning
    A0050K6 Remove Weld Points
    A0050JA Remove Weld Points
    A0050FX Cut and Join Location

      REMOVAL POINT

    1. Carefully cut the member so not to damage *1.

      Reference Value
      Area Measurement Area Measurement
      *a 80 mm (3.15 in.) *b 7 mm (0.28 in.)
    A0050K5E02

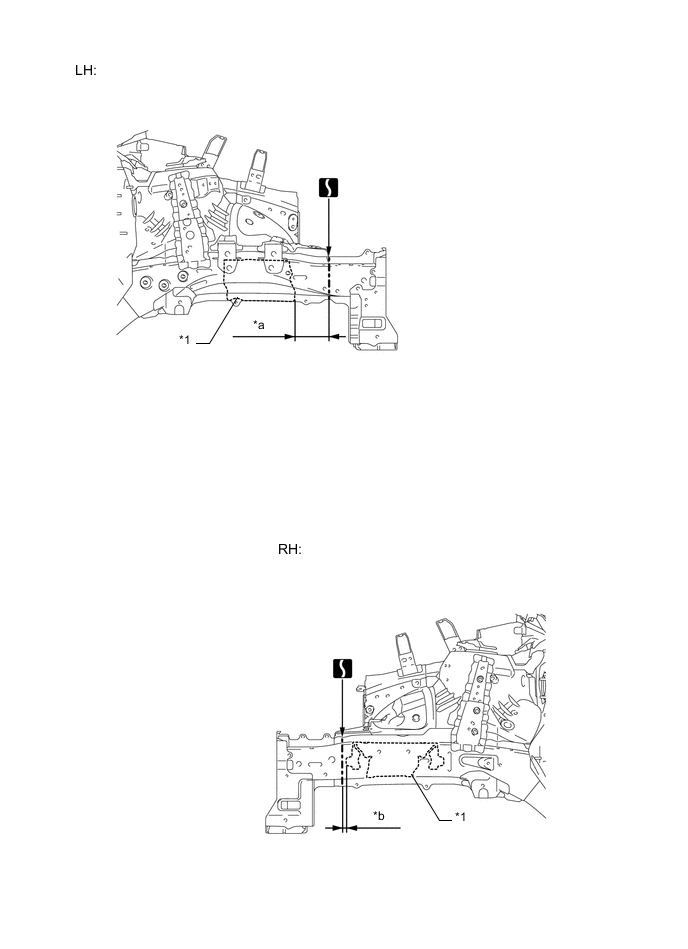

    A0050LHE02

  2. INSTALLATION

    Symbol meaning
    A0050CS Plug Weld
    A0050HG Plug Weld
    A0050IX Butt Weld

      INSTALLATION POINT

    1. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimensions)

    2. After welding, apply body sealer and undercoating to the corresponding parts. (See the painting / coating)

    3. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

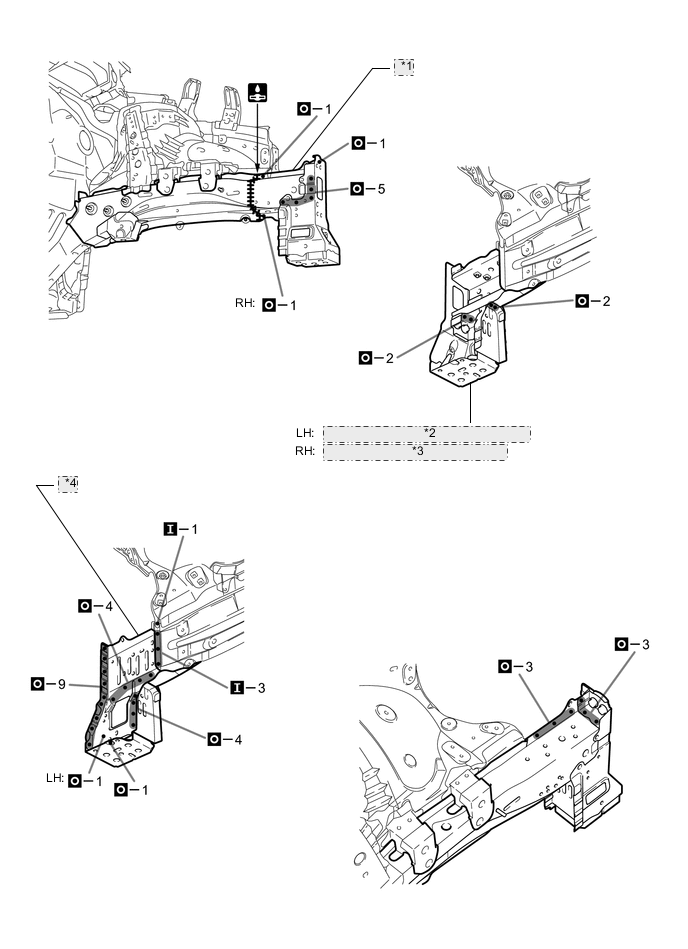

    A0050LDE01
    *1 FRONT SIDE MEMBER INNER
    *2 FRONT SIDE MEMBER REINFORCEMENT NO.2
    *3 FRONT SIDE MEMBER REINFORCE NO.2
    *4 FRONT SIDE MEMBER EXTENSION
