SEAT MEMORY SWITCH COMPONENTS

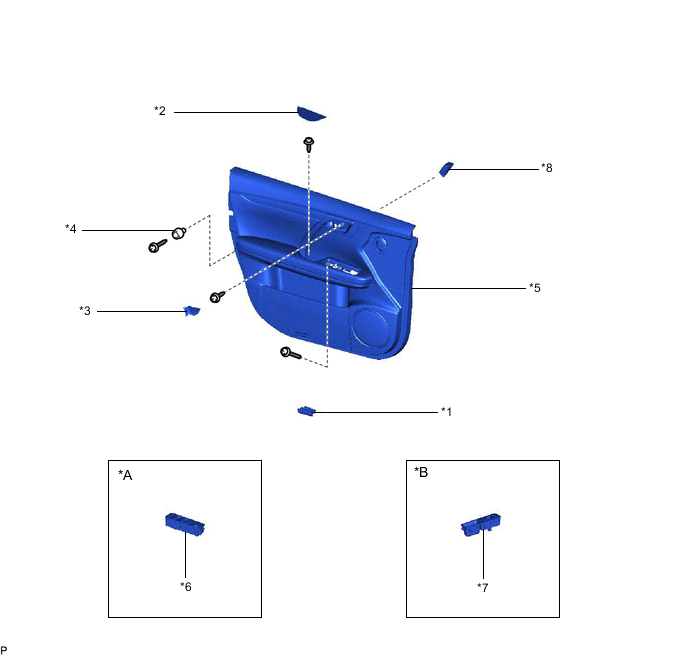

ILLUSTRATION
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | COURTESY LIGHT ASSEMBLY | *2 | DOOR ARMREST COVER |
| *3 | FRONT DOOR INSIDE HANDLE BEZEL PLUG | *4 | FRONT DOOR NO. 1 STIFFENER CUSHION |
| *5 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY | *6 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
| *7 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL | *8 | SEAT MEMORY SWITCH |
