AIRBAG SYSTEM


  1. CONSTRUCTION


    1. The instrument panel passenger without door airbag assembly is located in the upper section of the instrument panel of the front passenger seat.

    2. The instrument panel passenger without door airbag assembly consists of an inflator and a bag.

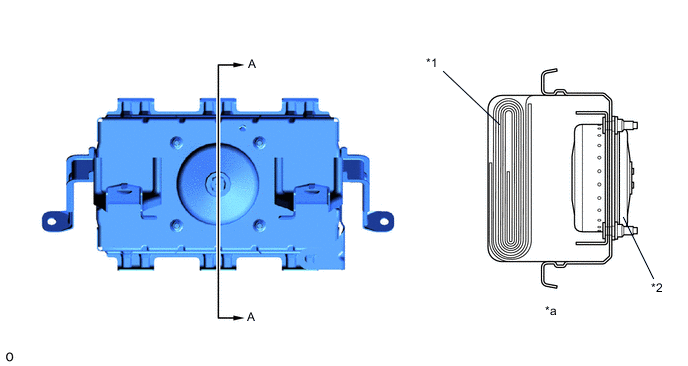

      Figure 1. Except Models for Korea

      A01RXSDC01
      *1 Bag *2 Inflator
      *a A - A Cross Section -

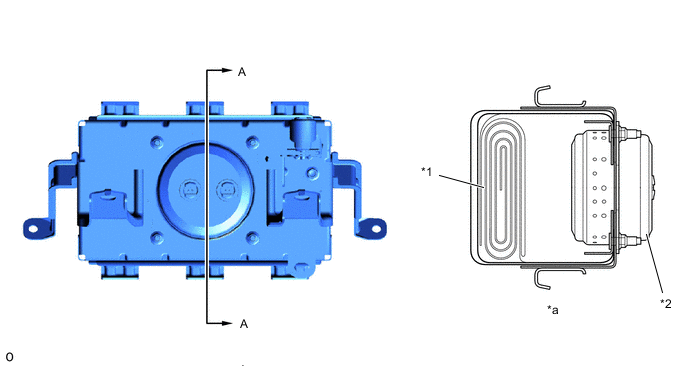

      Figure 2. Models for Korea

      A01RXWLC01
      *1 Bag *2 Inflator
      *a A - A Cross Section -
