MAP LIGHT BULB REPLACEMENT

PROCEDURE

  1. REMOVE MAP LIGHT SUB-ASSEMBLY

    1. E331157

      Using moulding remover D, detach the 4 clips.

    2. Disconnect the connector and remove the map light sub-assembly.

  2. REMOVE MAP LIGHT BULB

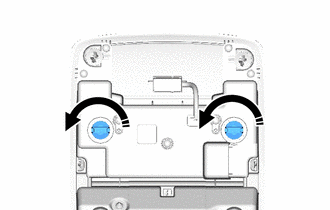

    1. E331161

      Turn the 2 map light bulb sockets in the direction indicated by the arrow in the illustration to remove them from the map light.

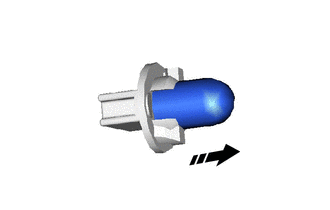

    2. E339083

      Remove the map light bulb from the map light bulb socket.

      Tip:

      Use the same procedure for both map light bulbs.

  3. INSTALL MAP LIGHT BULB

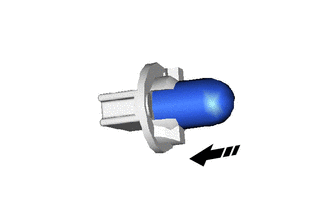

    1. E339084

      Install the map light bulb to the map light bulb socket.

      Tip:

      Use the same procedure for both map light bulbs.

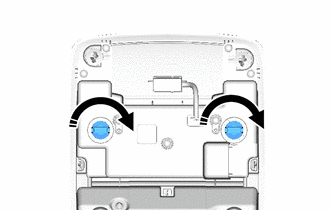

    2. E331162

      Turn the 2 map light bulb sockets in the direction indicated by the arrow in the illustration to install them to the map light.

  4. INSTALL MAP LIGHT SUB-ASSEMBLY

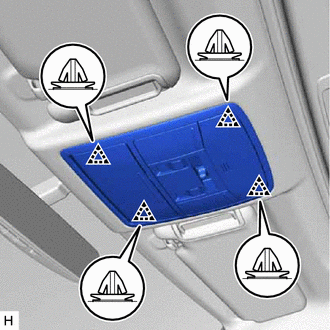

    1. E331158

      Connect the connector.

    2. Attach the 4 clips to install the map light sub-assembly.
