REAR BUMPER REMOVAL

PROCEDURE

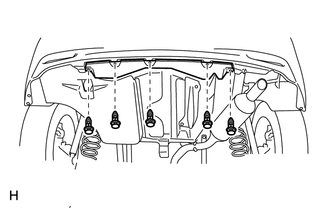

1. REMOVE NO. 1 FLOOR UNDER COVER

   1.

      Remove the 5 clips and No. 1 floor under cover.

2. REMOVE REAR BUMPER COVER

   1.

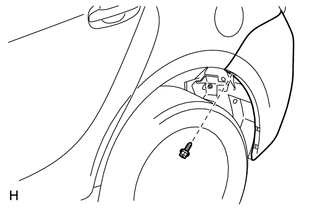

      Remove the screw.

      Tip:

      Use the same procedure for the RH and LH sides.

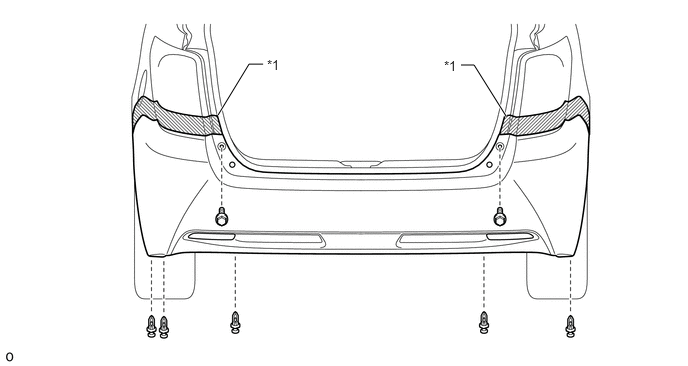

   2. Put protective tape around the rear bumper cover.

   3. Remove the 5 clips and 2 bolts.



      Table 1. Text in Illustration

      *1

      Protective Tape

      -

      -

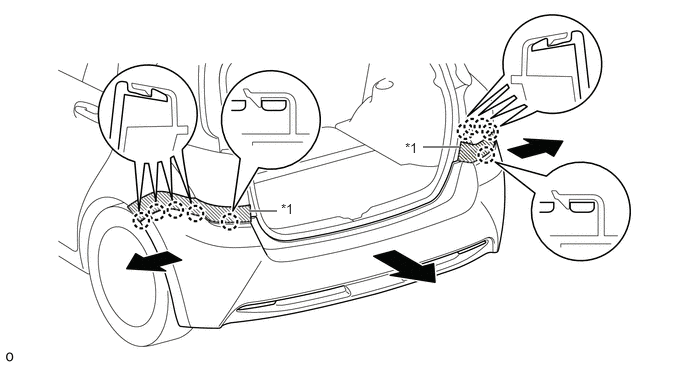

   4. Detach the 10 claws.

   5. w/ TOYOTA Parking Assist-sensor System:

      Disconnect the No. 4 floor wire connector.

   6. Remove the rear bumper cover.



      Table 2. Text in Illustration

      *1

      Protective Tape

      -

      -

3. REMOVE NO. 1 REAR BUMPER REINFORCEMENT

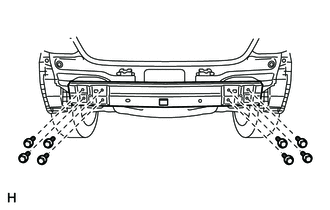

   1. Remove the 8 bolts and rear bumper reinforcement.

4. REMOVE REAR BUMPER ARM SUB-ASSEMBLY LH

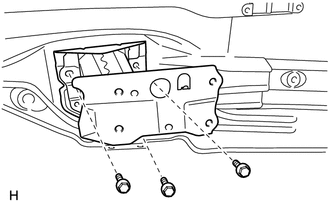

   1. Remove the 3 bolts and rear bumper arm.

5. REMOVE REAR BUMPER ARM SUB-ASSEMBLY RH

   Tip:

   Use the same procedure described for the LH side.

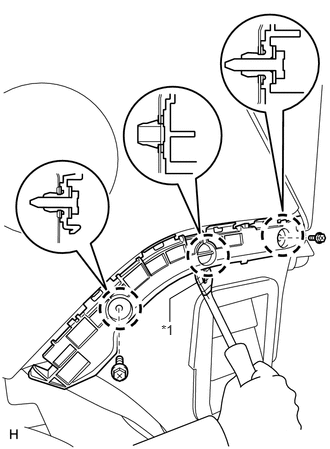

6. REMOVE REAR BUMPER SIDE RETAINER LH

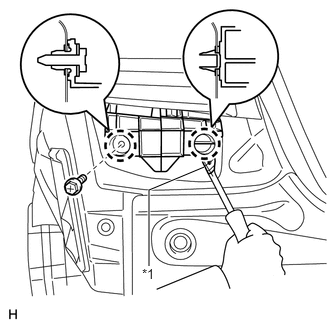

   1. Remove the 2 screws.

   2. Using a clip remover, detach the 3 claws and remove the rear bumper side retainer.

      Note:

      Tape the clip remover tip before use.

      Table 3. Text in Illustration

      *1	Protective Tape

7. REMOVE REAR BUMPER SIDE RETAINER RH

   Tip:

   Use the same procedure described for the LH side.

8. REMOVE REAR UPPER BUMPER RETAINER LH



   1. Remove the screw.

   2. Using a clip remover, detach the 2 claws and remove the rear upper bumper retainer.

      Note:

      Tape the clip remover tip before use.

      Table 4. Text in Illustration

      *1	Protective Tape

9. REMOVE REAR UPPER BUMPER RETAINER RH

   Tip:

   Use the same procedure described for the LH side.

10. REMOVE REAR BUMPER SIDE SEAL LH

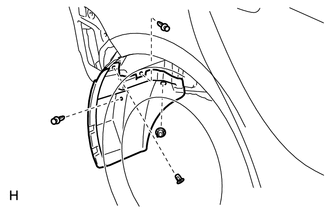

    1. Remove the grommet, nut and 3 clips.

    2. Remove the rear bumper side seal.

11. REMOVE REAR BUMPER SIDE SEAL RH

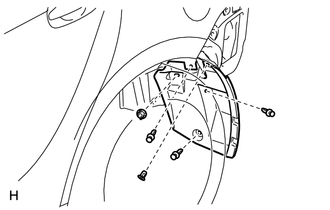

    1. Remove the grommet, nut and 2 clips.

    2. Remove the rear bumper side seal.
