PARK / NEUTRAL POSITION SWITCH REMOVAL

PROCEDURE

1. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY



   1. Disconnect the park/neutral position switch assembly connector.

   2.

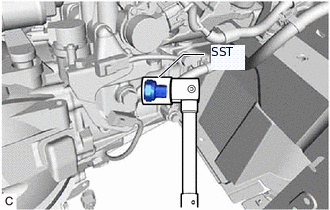

      Using SST, remove the park/neutral position switch assembly and gasket from the multi-mode manual transaxle assembly.

      09817-16011
