PTC HEATER ASSEMBLY INSPECTION

PROCEDURE

  1. INSPECT QUICK HEATER ASSEMBLY

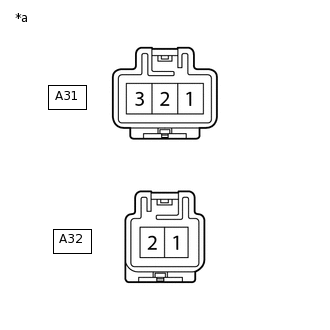

    E269736C01

    *a

    Component without harness connected

    (Quick Heater Assembly)

    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      A31-1 - A32-1

      23 to 25°C (73 to 77°F)

      0.5 to 2.5 Ω

      A31-2 - A32-1

      23 to 25°C (73 to 77°F)

      0.5 to 2.5 Ω

      A31-2 - A32-2

      23 to 25°C (73 to 77°F)

      0.5 to 2.5 Ω

      A31-3 - A32-2

      23 to 25°C (73 to 77°F)

      0.5 to 2.5 Ω

      If the result is not as specified, replace the quick heater assembly.
