CYLINDER HEAD GASKET INSTALLATION

CAUTION / NOTICE / HINT

PROCEDURE

1. INSTALL CYLINDER HEAD GASKET

   1. Clean the cylinder block and cylinder head sub-assembly with solvent.

   2.

      *1	Cylinder Block
      *2	Cylinder Head Gasket
      *a	Lot No.
      *b	3.0 to 7.0 mm (0.118 to 0.276 in.)
      *c	20 mm (0.787 in.) or more
      *d	7.0 mm (0.276 in.)
      *e	3.0 mm (0.118 in.) or more
      	Seal Packing Application Area
      	Engine Front

      Apply a seal packing to a new cylinder head gasket as shown in the illustration.

      Seal packing

      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

      Standard seal dimension

      3.0 to 7.0 mm (0.118 to 0.276 in.) wide and 3.0 mm (0.118 in.) thick

      Note:

      • Remove any oil from the contact surface.

      • Install the cylinder head gasket within 3 minutes and tighten the bolts within 15 minutes after applying seal packing.

      Tip:

      Apply at least 20 mm (0.787 in.) of seal packing from the inside edge of the protrusion of the cylinder block.

   3. Place a new cylinder head gasket on the cylinder block surface with the front face of the Lot No. stamp upward.

      Note:

      Pay attention to the installation direction.

2. INSTALL CYLINDER HEAD SUB-ASSEMBLY

   Tip:

   Perform "Inspection After Repairs" after replacing the cylinder head sub-assembly.

   • w/ EGR System:

     Click here

   • w/o EGR System:

     Click here

   • w/ Canister Pump Module:

     Click here

   1. Place the cylinder head sub-assembly on the cylinder block.

      Note:

      • Make sure that no oil is on the mounting surface of the cylinder head sub-assembly.

      • Place the cylinder head sub-assembly on the cylinder block gently in order not to damage the gasket with the bottom part of the head.

      Tip:

      The cylinder head set bolts are tightened in 4 progressive steps.

   2. Install the plate washers to the cylinder head set bolts.

   3. Apply a light coat of engine oil to the threads and under the heads of the cylinder head set bolts.

   4. Step 1:

      1.

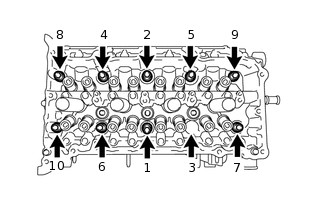

         Using a 10 mm bi-hexagon wrench, install and uniformly tighten the 10 cylinder head set bolts in several steps in the sequence shown in the illustration.

         36 N*m

         367 kgf*cm

         27 ft.*lbf

         Note:

         Do not drop the plate washers for the cylinder head set bolt into the cylinder head sub-assembly.

   5. Step 2:

      1. Tighten the cylinder head set bolts again in the sequence shown in the illustration to make sure that they are tightened to the specified torque.

         36 N*m

         367 kgf*cm

         27 ft.*lbf

   6. Step 3:

      1. Mark the front side of each cylinder head set bolt head with paint.

      2. Tighten the cylinder head set bolts 90° in the sequence shown in step 1.

   7. Step 4:

      1. Tighten the cylinder head set bolts another 90° in the sequence shown in step 1.

      2. Check that the paint marks are now at a 180° angle to the front.

         Note:

         • Do not apply oil for at least 4 hours after the installation.

         • Do not start the engine for at least 4 hours after the installation.

         • After the installation, if the seal packing has seeped out, wipe it off.

3. INSTALL VALVE STEM CAP

   Click here

4. INSTALL VALVE LASH ADJUSTER ASSEMBLY

   Click here

5. INSTALL NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY

   Click here

6. INSTALL NO. 2 CAMSHAFT BEARING

   Click here

7. INSTALL NO. 1 CAMSHAFT BEARING

   Click here

8. INSTALL NO. 2 CAMSHAFT

   Click here

9. INSTALL CAMSHAFT

   Click here

10. INSTALL OIL CONTROL VALVE FILTER

    Click here

11. INSTALL CAMSHAFT BEARING CAP

    Click here

12. INSTALL CAMSHAFT HOUSING SUB-ASSEMBLY

    Click here

13. INSTALL CAMSHAFT TIMING GEAR ASSEMBLY

    Click here

14. INSTALL CAMSHAFT TIMING SPROCKET

    Click here

15. ADD ENGINE OIL

    Click here

16. INSTALL NO. 1 CHAIN VIBRATION DAMPER

    Click here

17. INSTALL CHAIN SUB-ASSEMBLY

    Click here

18. INSTALL CHAIN TENSIONER SLIPPER

    Click here

19. INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY

    Click here

20. INSTALL TIMING CHAIN GUIDE

    Click here

21. CHECK NO. 1 CYLINDER TO TDC/COMPRESSION

    Click here

22. INSTALL INJECTOR VIBRATION INSULATOR

    Click here

23. INSTALL FUEL DELIVERY PIPE

    Click here

24. INSTALL INTAKE MANIFOLD

    Click hereClick here

25. INSTALL NO. 3 WATER BY-PASS PIPE (w/o EGR System)

    Click hereClick here

26. TEMPORARILY INSTALL NO. 1 EGR PIPE (w/ EGR System)

    Click hereClick here

27. INSTALL NO. 1 WATER BY-PASS HOSE (w/ EGR System)

    Click hereClick here

28. INSTALL NO. 3 WATER BY-PASS HOSE

    Click hereClick here

29. TEMPORARILY INSTALL EGR VALVE ASSEMBLY (w/ EGR System)

    Click hereClick here

30. INSTALL NO. 1 WATER BY-PASS PIPE (w/o EGR System)

    Click hereClick here

31. INSTALL NO. 5 WATER BY-PASS HOSE (w/o EGR System)

    Click hereClick here

32. TEMPORARILY INSTALL EGR COOLER ASSEMBLY (w/ EGR System)

    Click hereClick here

33. INSTALL WATER BY-PASS PIPE (w/ EGR System)

    Click hereClick here

34. TIGHTEN NO. 1 EGR PIPE (w/ EGR System)

    Click hereClick here

35. TIGHTEN EGR COOLER ASSEMBLY (w/ EGR System)

    Click hereClick here

36. TIGHTEN EGR VALVE ASSEMBLY (w/ EGR System)

    Click hereClick here

37. INSTALL THROTTLE WITH MOTOR BODY ASSEMBLY

    Click here

38. INSTALL EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

    Click here

39. INSTALL TIMING CHAIN COVER ASSEMBLY

    Click here
