AUDIO AND VISUAL SYSTEM(for Radio Receiver Type) Radio Receiver Power Source Circuit

DTC Code DTC Name
Radio Receiver Power Source Circuit

DESCRIPTION

This circuit provides power to the radio receiver assembly.

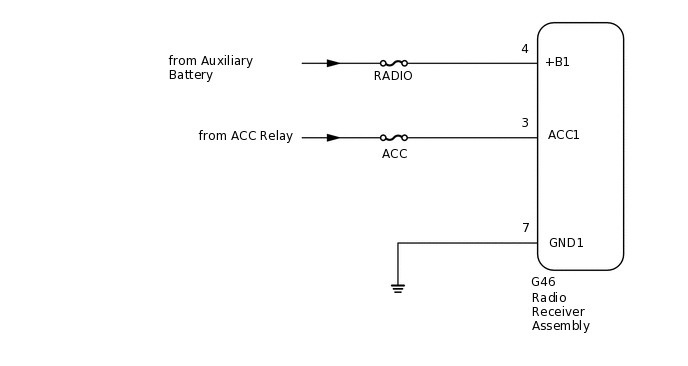

WIRING DIAGRAM

E273577E02

CAUTION / NOTICE / HINT

Note:

Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

  1. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY POWER SOURCE)

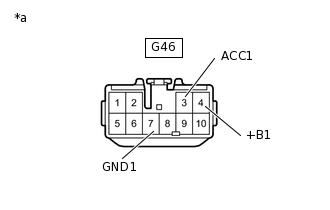

    1. E259248C09

      *a

      Front view of wire harness connector

      (to Radio Receiver Assembly)

      Disconnect the radio receiver assembly connectors.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      G46-7 (GND1) - Body ground

      Always

      Below 1 Ω

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection

      Condition

      Specified Condition

      G46-4 (+B1) - Body ground

      Always

      11 to 14 V

      G46-3 (ACC1) - Body ground

      Power switch on (ACC)

      11 to 14 V

      Power switch off

      Below 1 V

    Result

    Proceed to

    OK

    NG
    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

    Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
