PARKING BRAKE CABLE COMPONENTS

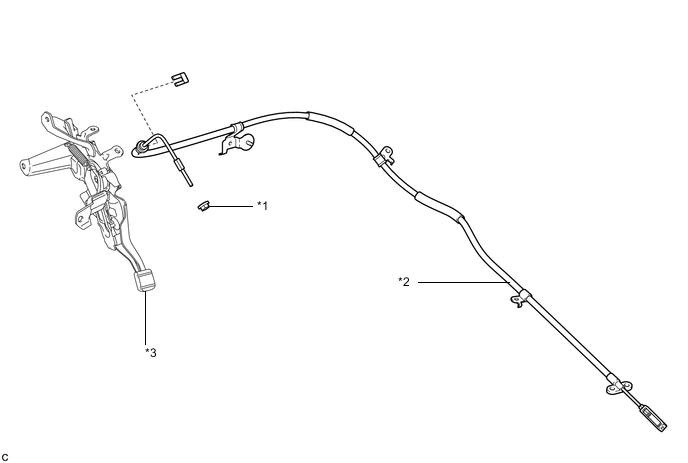

ILLUSTRATION

A005CZ4E03
for LHD
*1 ADJUSTING NUT
*2 NO. 1 PARKING BRAKE CABLE ASSEMBLY
*3 PARKING BRAKE PEDAL ASSEMBLY

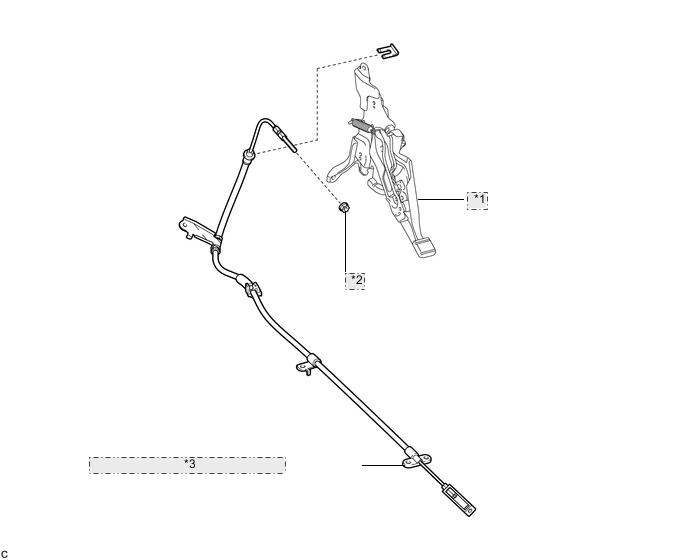

ILLUSTRATION

A005DGUE01
for RHD
*1 PARKING BRAKE PEDAL ASSEMBLY
*2 ADJUSTING NUT
*3 NO. 1 PARKING BRAKE CABLE ASSEMBLY

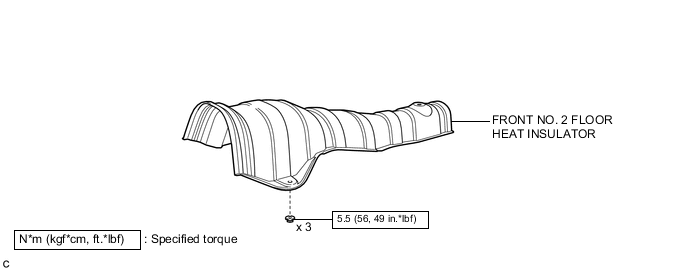

ILLUSTRATION

A005D8DE03

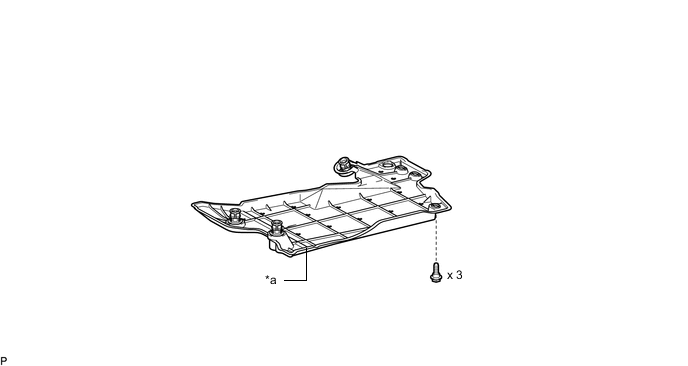

ILLUSTRATION

A005AF7E02
for RH Side
*a REAR FLOOR SIDE MEMBER COVER RH

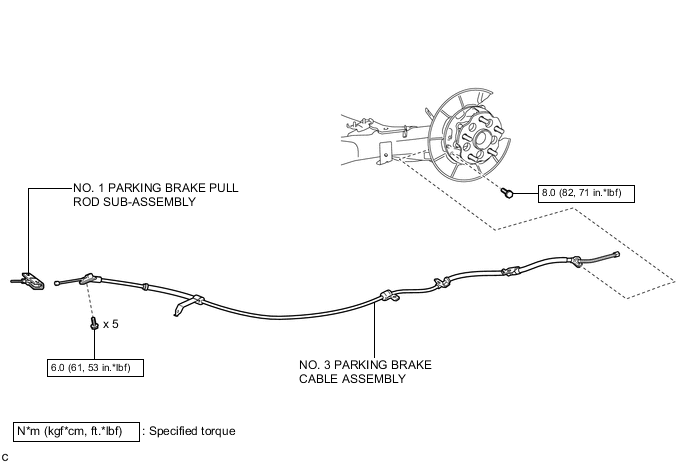

ILLUSTRATION

A005B1JE03
