WASHER NOZZLE(for Front Side) ADJUSTMENT

PROCEDURE

1. ADJUST WASHER NOZZLE SUB-ASSEMBLY

   1.

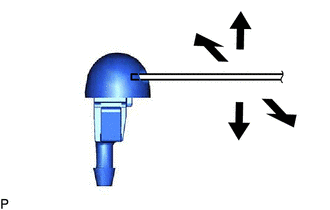

      Using a pin, adjust the direction of the washer nozzle sub-assembly.

      Note:

      • Use the blunt end of a pin.

      • Do not insert the pin too deep.
