PARKING ASSIST ECU REMOVAL

PROCEDURE

1. REMOVE DECK BOARD ASSEMBLY

   Click here

2. REMOVE NO. 1 SEAT LEG ASSEMBLY

   Click here

3. REMOVE PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/ Partition Net)

   Click here

4. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

   Click here

5. REMOVE REAR NO. 3 FLOOR BOARD

   Click here

6. REMOVE REAR NO. 2 FLOOR BOARD

   Tip:

   Use the same procedure described for the rear No. 3 floor board side.

   Click here

7. REMOVE DECK TRIM SIDE COVER BASE LH

   Click here

8. REMOVE DECK FLOOR BOX LH

   Click here

9. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

   Click here

10. REMOVE REAR FLOOR FINISH PLATE (w/o Spare Tire, for Compact Spare Tire)

    Click here

11. REMOVE REAR DECK TRIM COVER (for Full Size Spare Tire)

    Click here

12. REMOVE REAR DOOR SCUFF PLATE RH

    Tip:

    Use the same procedure described for the LH side.

    Click here

13. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    Tip:

    Use the same procedure described for the LH side.

    Click here

14. REMOVE DECK TRIM SERVICE HOLE COVER

    Click here

15. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    Click here

16. REMOVE PARKING ASSIST ECU

    1.

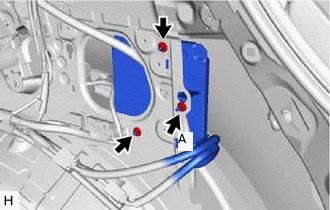

       Loosen the temporary nut (A).

    2. Remove the 2 nuts.

    3.

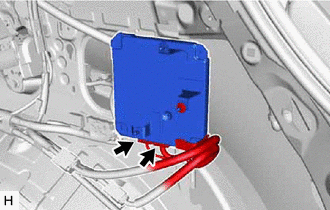

       Disconnect the 2 connectors and remove the parking assist ECU.
