FUEL SENDER GAUGE ASSEMBLY REMOVAL

PROCEDURE

1. REMOVE FUEL TANK ASSEMBLY

   • w/ Canister Pump Module:

     Click here

   • w/o Canister Pump Module:

     Click here

2. REMOVE FUEL SENDER GAUGE ASSEMBLY

   1.

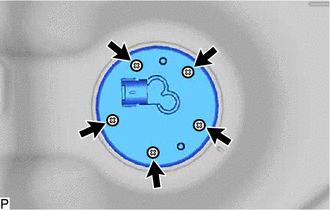

      Remove the 5 screws and fuel sender gauge assembly from the fuel tank assembly.
