WASHER NOZZLE(for Front Side) REMOVAL

PROCEDURE

1. REMOVE WASHER NOZZLE SUB-ASSEMBLY (for Driver Side Washer Nozzle)

   1.

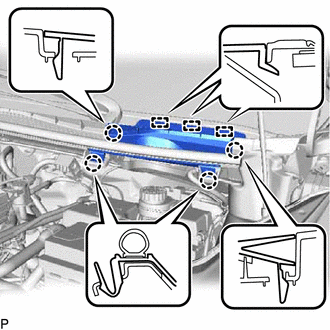

      Disengage the 4 claws and 3 guides and disconnect the center cowl top ventilator louver.

   2.

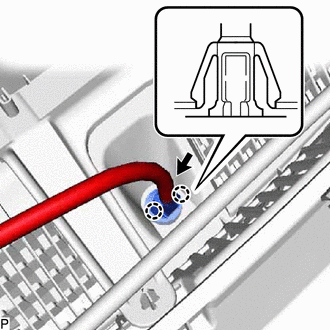

      Disconnect the washer hose.

   3. Disengage the 2 claws and remove the washer nozzle sub-assembly.

2. REMOVE WINDSHIELD WIPER ARM COVER (for Passenger Side Washer Nozzle)

   Click here

3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY (for Passenger Side Washer Nozzle)

   Click here

4. REMOVE FRONT FENDER TO COWL SIDE SEAL LH (for Passenger Side Washer Nozzle)

   Click here

5. REMOVE FRONT FENDER TO COWL SIDE SEAL RH (for Passenger Side Washer Nozzle)

   Tip:

   Use the same procedure as for the LH side.

6. REMOVE FRONT NO. 2 SIDE AIR GUIDE (for Passenger Side Washer Nozzle)

   w/ Side Air Guide:

   Click here

7. REMOVE FRONT SIDE AIR GUIDE (for Passenger Side Washer Nozzle)

   w/ Side Air Guide:

   Click here

8. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY (for Passenger Side Washer Nozzle)

   Click here

9. REMOVE WASHER NOZZLE SUB-ASSEMBLY (for Passenger Side Washer Nozzle)

   1.

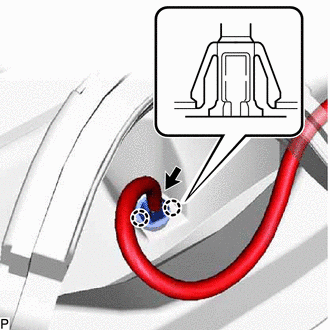

      Disconnect the washer hose.

   2. Disengage the 2 claws and remove the washer nozzle sub-assembly.
