WASHER NOZZLE REMOVAL

PROCEDURE

  1. REMOVE WASHER NOZZLE SUB-ASSEMBLY (w/o Heater)

    Tip:

    Use the same procedure for both washer nozzle sub-assemblies.

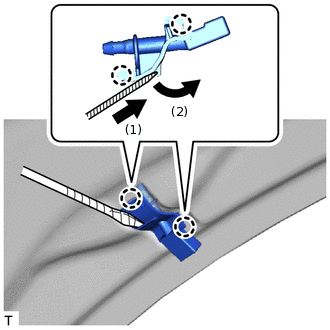

    1. E268402C02
      V100155

      Protective Tape

      Using a screwdriver, detach the 2 claws and remove the washer nozzle sub-assembly as shown in the illustration.

      Note:

      Be careful not to damage the windshield.

      Tip:

      Tape the screwdriver tip before use.

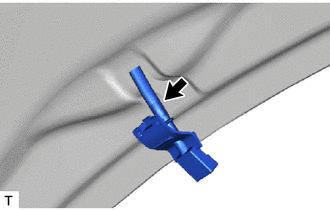

    2. E268403

      Disconnect the washer nozzle sub-assembly from the washer hose.

      Note:

      Washer nozzle sub-assemblies cannot be reused.

  2. REMOVE HOOD INSULATOR (w/ Heater)

    Click here

  3. REMOVE WASHER NOZZLE SUB-ASSEMBLY (w/ Heater)

    Tip:

    Use the same procedure for both washer nozzle sub-assemblies.

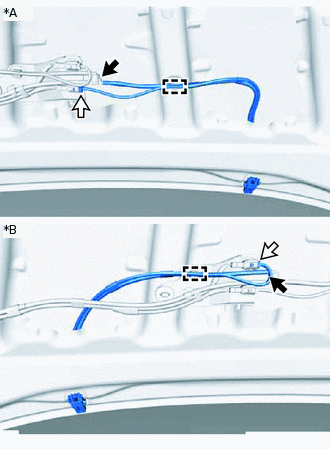

    1. B427827C01

      *A

      for LH Side

      *B

      for RH Side
      V100135

      Washer Hose
      V100136

      Connector

      Disconnect the connector and washer hose.

    2. Detach the clamp.

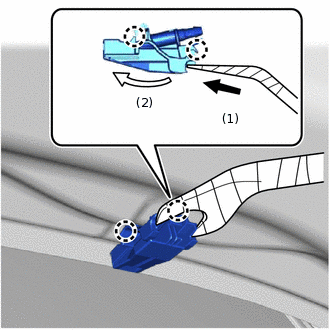

    3. B427697C01
      V100155

      Protective Tape

      Using a clip remover, detach the 2 claws and remove the washer nozzle sub-assembly as shown in the illustration.

      Note:

      • Be careful not to damage the windshield.

      • Washer nozzle sub-assemblies cannot be reused.

      Tip:

      Tape the screwdriver tip before use.
